Vectors

List view

Hard56%

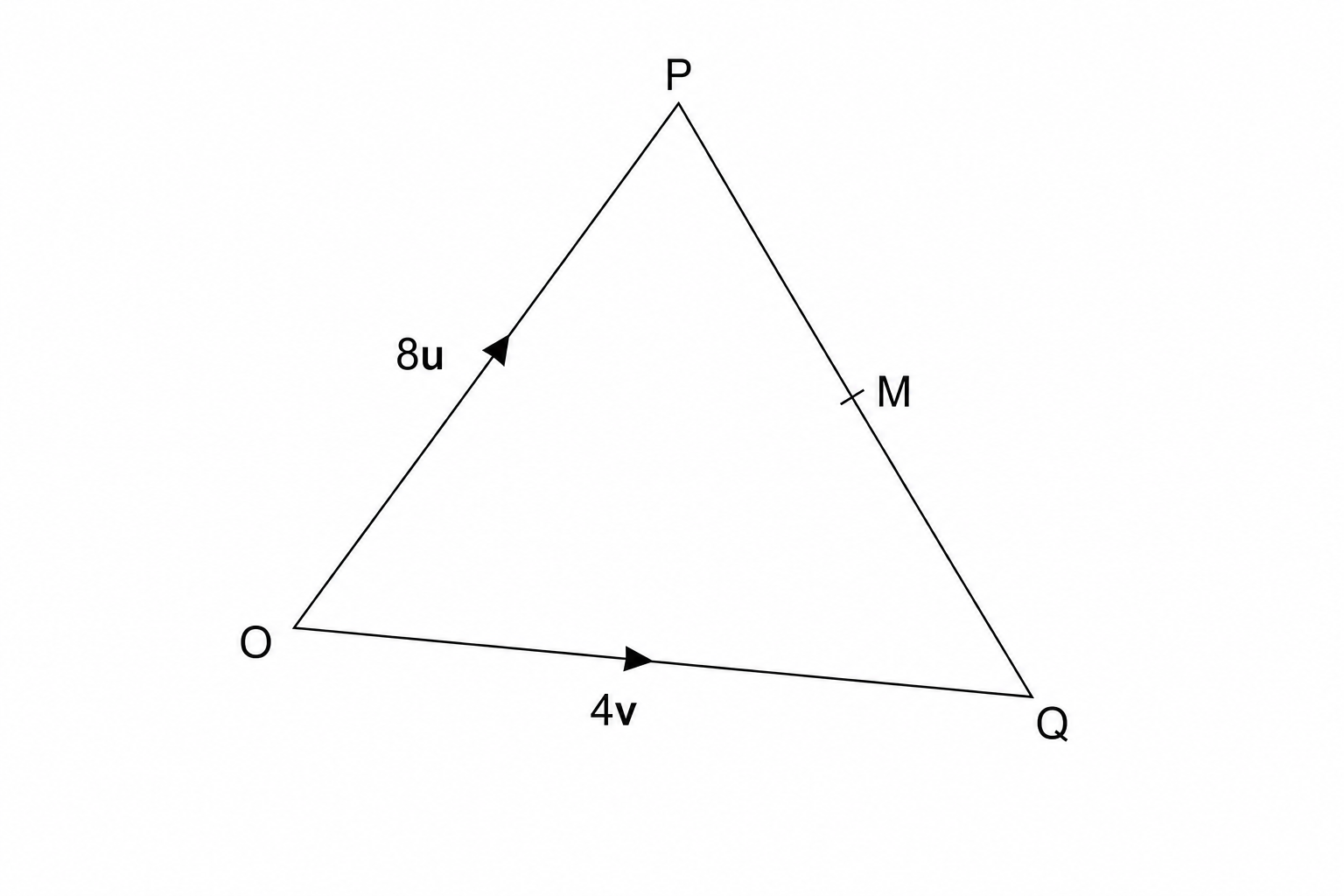

A vector diagram showing points O, P, Q, and M. Vector OP is labeled 8u and vector OQ is labeled 4v. M is the midpoint of the line segment PQ.

The diagram shows a triangle $O P Q$ .

\vec{OP} = 8\mathbf{u}

\vec{OQ} = 4\mathbf{v}

M is the midpoint of $P Q$

Find, in terms of $u\mathbf{u}$ and $v\mathbf{v}$ , the vector $PQ⃗\vec{PQ}$ .

[1]

Find, in terms of $u\mathbf{u}$ and $v\mathbf{v}$ , the vector $PM⃗\vec{PM}$ .

[1]

Find, in terms of $u\mathbf{u}$ and $v\mathbf{v}$ , the vector $OM⃗\vec{OM}$ .

[2]

Vectors Questions

Practise Edexcel GCSE Maths Vectors with exam-style questions for Foundation and Higher tier. 33 questions, matched to the Edexcel GCSE Maths (1MA1) specification and written in Paper 1, Paper 2 and Paper 3 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
