Surface Area
2
Hard22%
0/4

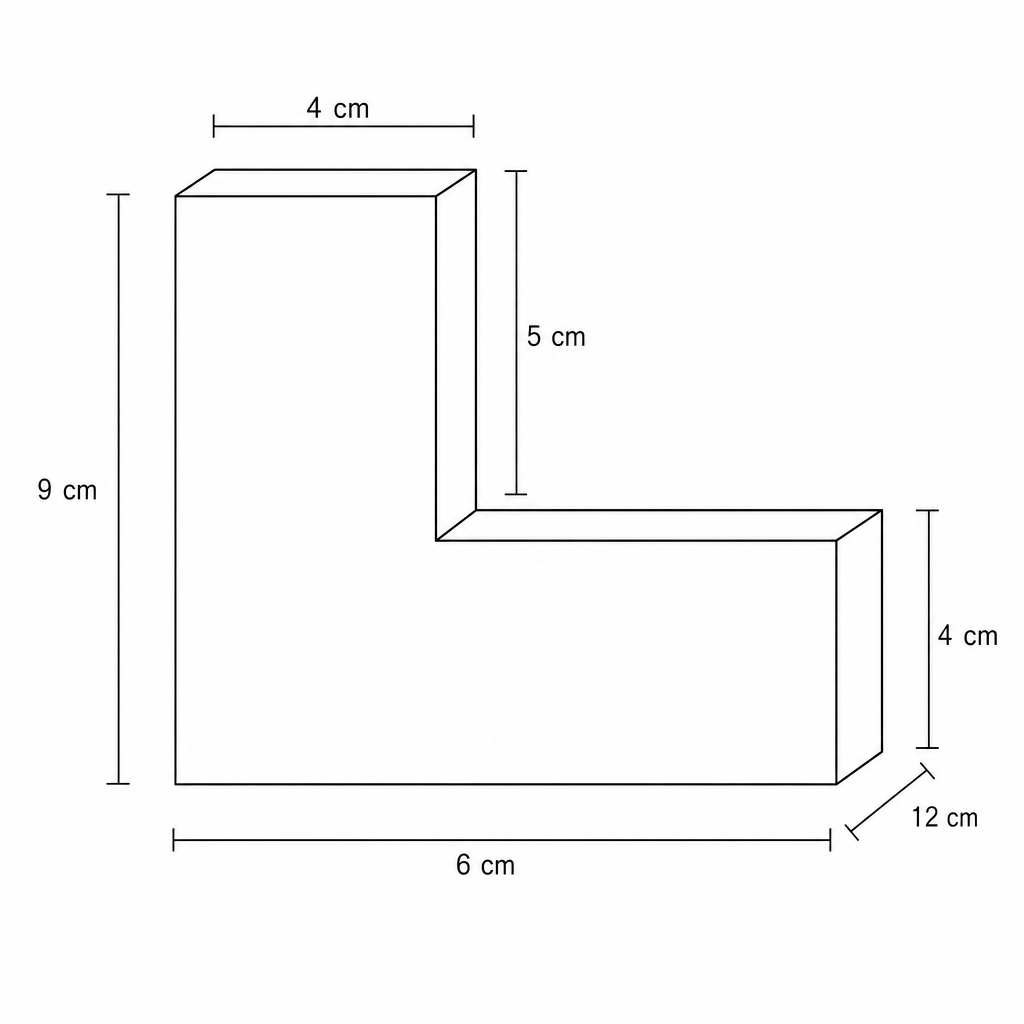

The diagram shows a metal bracket in the shape of a prism with an L-shaped cross-section.

All measurements are in cm.

Calculate the total surface area of the bracket.

An L-shaped prism. The L-shaped face has a base of 6 cm and a total height of 9 cm. The top horizontal part of the L is 4 cm wide. The vertical part on the right steps down by 5 cm to a height of 4 cm. The depth of the prism is 12 cm.

[4]

Surface Area Questions

Practise Edexcel GCSE Maths Surface Area with exam-style questions for Foundation and Higher tier. 25 questions, matched to the Edexcel GCSE Maths (1MA1) specification and written in Paper 1, Paper 2 and Paper 3 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
