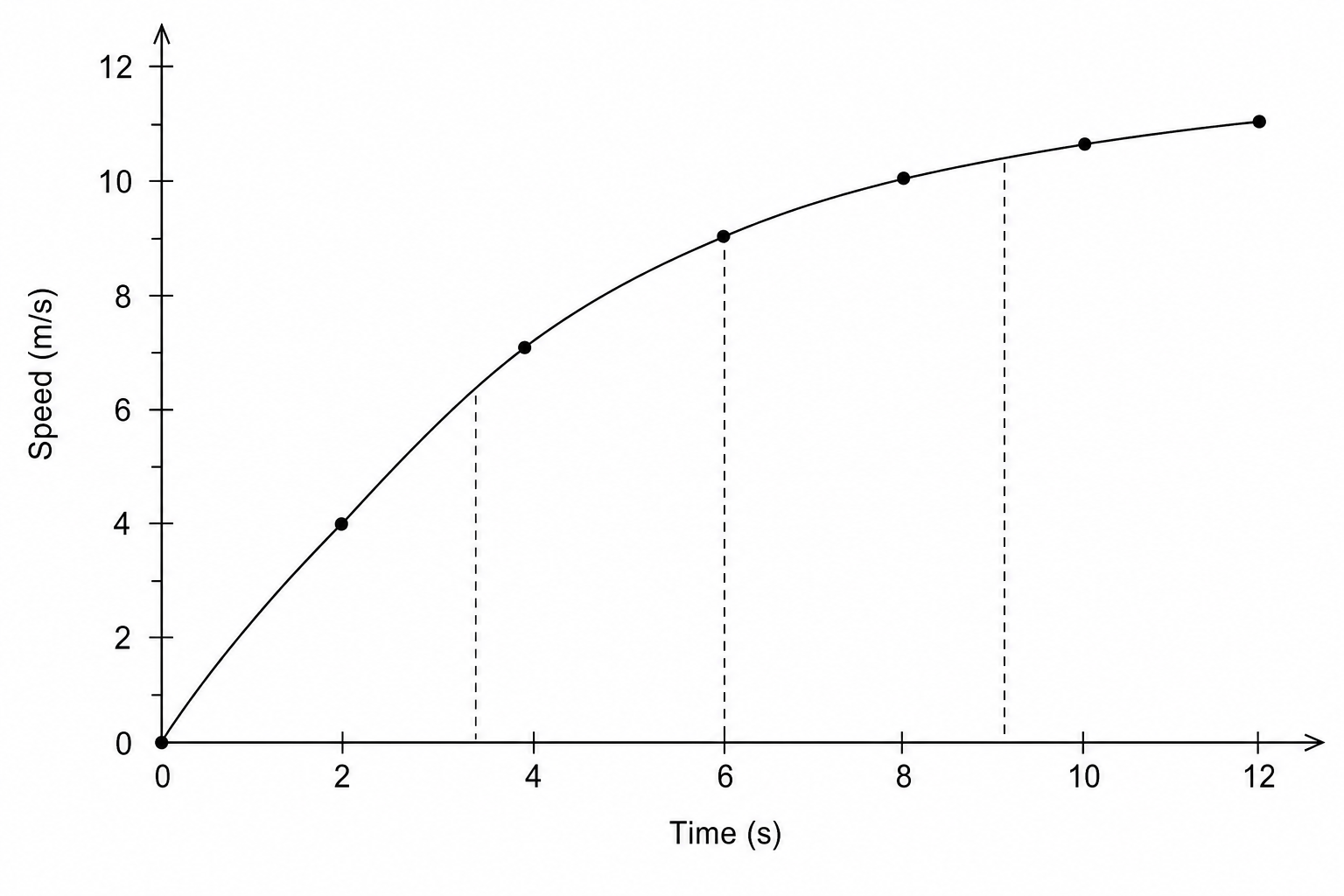

The speed-time graph below represents the motion of a cyclist during a 12-second sprint.
a.[2]
Work out an estimate for the acceleration of the cyclist when t=4t = 4t=4.
b.[3]
Use 4 strips of equal width to find an estimate for the distance travelled by the cyclist in 12 seconds.
Velocity Time Graphs Questions
Practise AQA GCSE Maths Velocity Time Graphs with exam-style questions for Foundation and Higher tier. 28 questions, matched to the AQA GCSE Maths (8300) specification and written in Paper 1, Paper 2 and Paper 3 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
