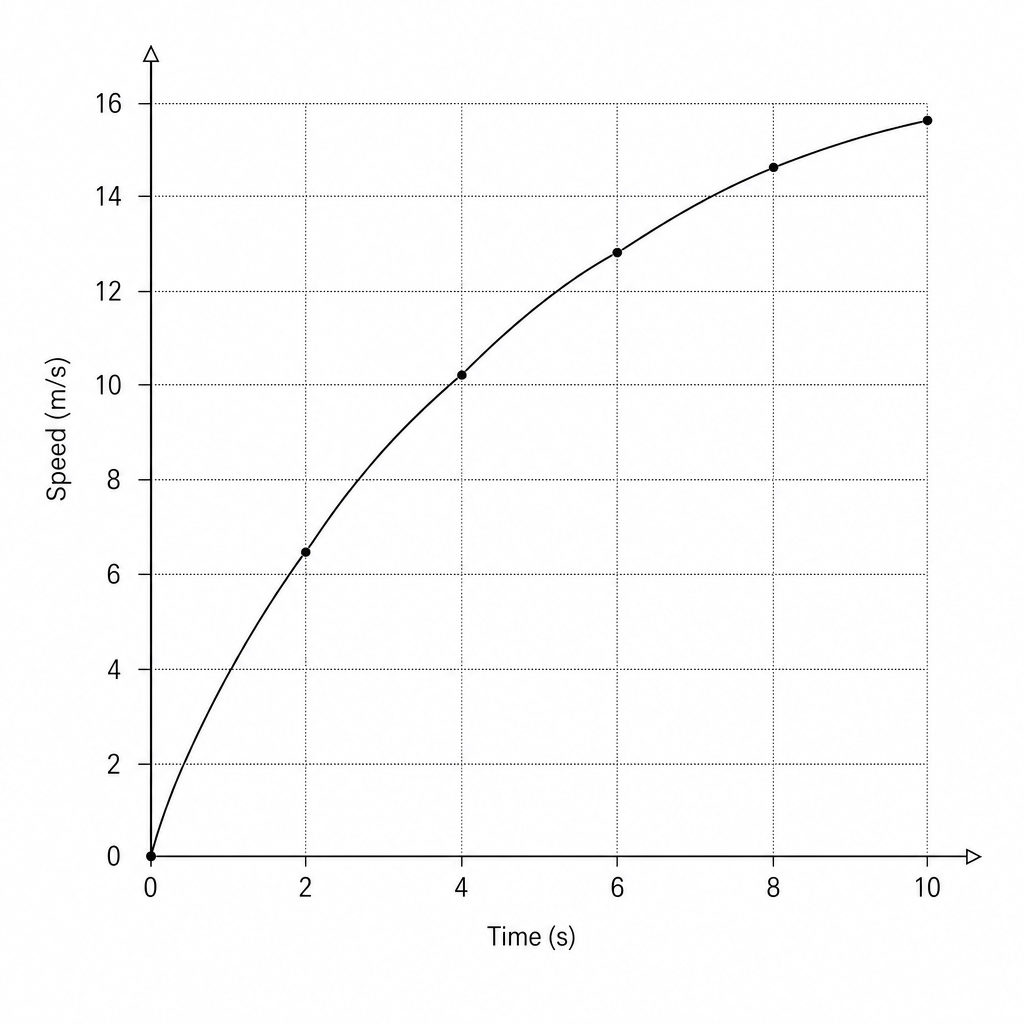

The speed-time graph shows the velocity of a car for the first 10 seconds after it starts moving. The speeds at 2-second intervals are 0 m/s, 6.4 m/s, 10.2 m/s, 12.8 m/s, 14.6 m/s, and 15.6 m/s.
Use 5 strips of equal width to find an estimate for the distance travelled in 10 seconds.
Is your answer to (a) an underestimate or an overestimate of the actual distance? Give a reason for your answer.
Velocity Time Graphs Questions
Practise AQA GCSE Maths Velocity Time Graphs with exam-style questions for Foundation and Higher tier. 28 questions, matched to the AQA GCSE Maths (8300) specification and written in Paper 1, Paper 2 and Paper 3 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
