Searching and sorting algorithms

What you'll learn

How linear search and binary search find an item in a list.
How bubble sort, insertion sort and merge sort put data into order.
The pre-requisites for each algorithm, especially when data must already be sorted.
How to recognise these algorithms from short code or pseudocode without memorising exact code.

Before you start: lists, indexes and algorithms

An algorithm is a clear set of steps for solving a problem.

In this topic, the problem is usually about a list of data, such as:

[12, 5, 23, 7, 30, 1]

Each item has a position called an index. In OCR Exam Reference Language and Python-style pseudocode, indexes usually start at 0, so the first item is at index 0.

Definition

Search key

The search key is the value you are trying to find in a list. For example, if you are looking for 23, then 23 is the search key.

Definition

Sorted data

A list is sorted if it is already in a particular order, such as ascending order: smallest to largest.

Searching algorithms

A searching algorithm tries to find whether a value is in a list, and often returns its position.

OCR J277 requires you to understand:

linear search
binary search

You do not need to memorise the exact code, but you should understand the steps and recognise the pattern in code or pseudocode.

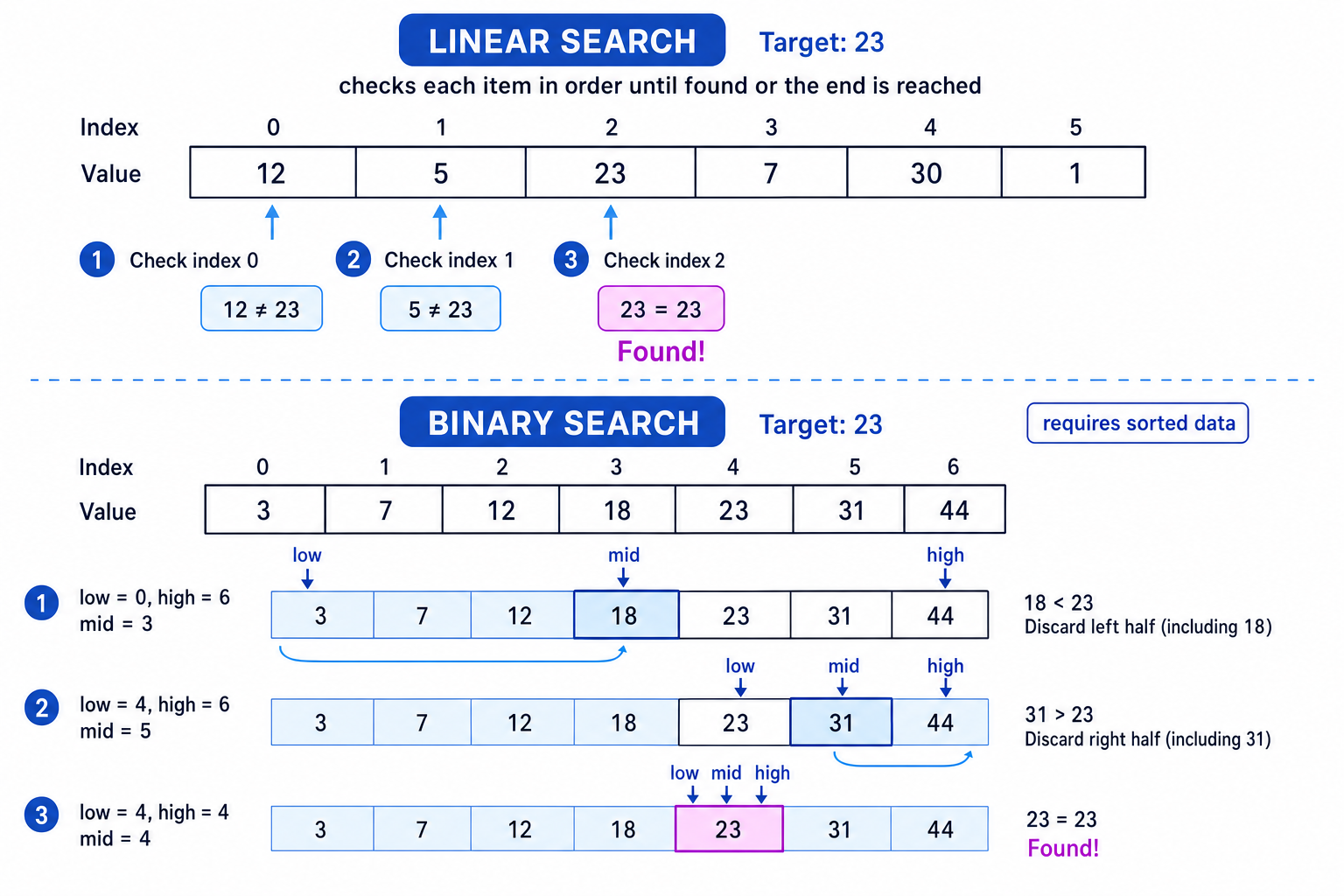

Diagram comparing linear search and binary search

Linear search

Linear search checks each item in a list one by one, from the start, until the target is found or the end is reached.

Key Idea

Linear search

Linear search works on unsorted or sorted data because it does not assume anything about the order of the list.

Main steps

Start at the first item.
Compare the current item with the search key.
If they match, the item has been found.
If not, move to the next item.
Stop when the item is found or the list ends.

Recognising linear search in code

Look for a loop that moves through the list in order, such as index 0, then 1, then 2, comparing each item with the target.

Typical code clues include:

a loop from the first item to the last item
a comparison like items[index] == target
stopping when a match is found

Example

Tracing a linear search

Search for 10 in the list [17, 4, 29, 10, 8].

Compare the first item, 17, with the target 10. They are not equal, so the search continues.
Compare the next items in order: 4 is not 10, then 29 is not 10.
Compare 10 with the target 10. They match, so the value is found at index 3.

Common Mistake

Stopping too late

Once linear search finds the target, it can stop. You do not need to keep checking the rest of the list unless the question asks for every occurrence.

Binary search

Binary search repeatedly halves the part of the list that still needs to be searched.

Common Mistake

Binary search needs sorted data

Binary search only works if the list is already sorted. If the list is unsorted, halving the search area may throw away the part containing the target.

Main steps

For an ascending sorted list:

Set low to the first index and high to the last index.
Find the middle index: mid = (low + high) DIV 2.
Compare the middle item with the search key.
If the middle item is the target, stop.
If the target is smaller, continue searching the left half.
If the target is larger, continue searching the right half.
If low becomes greater than high, the target is not in the list.

Definition

DIV

DIV means integer division: divide and keep only the whole-number quotient. For example, 5 DIV 2 gives 2.

Recognising binary search in code

Binary search code often contains:

variables such as low, high and mid
a calculation like mid = (low + high) DIV 2
decisions that move low or high
repeated halving of the search area

Example

Tracing a binary search

Search for 18 in the sorted list [2, 6, 9, 13, 18, 21, 30].

The first search area is index 0 to index 6. The middle index is (0 + 6) DIV 2, so mid = 3. The middle value is 13.
Since 18 is greater than 13, discard the left half up to and including 13. The new search area is index 4 to index 6.
The new middle index is (4 + 6) DIV 2, so mid = 5. The middle value is 21.
Since 18 is less than 21, discard index 5 and everything to its right. The new search area is index 4 to index 4.
The middle value is now 18, which matches the target, so the item is found at index 4.

Tip

Binary search sanity check

If the question gives an unsorted list and asks which search can be used immediately, the safe answer is linear search, not binary search.

Sorting algorithms

A sorting algorithm puts data into a chosen order, usually ascending order for GCSE questions.

OCR J277 requires you to understand:

bubble sort
merge sort
insertion sort

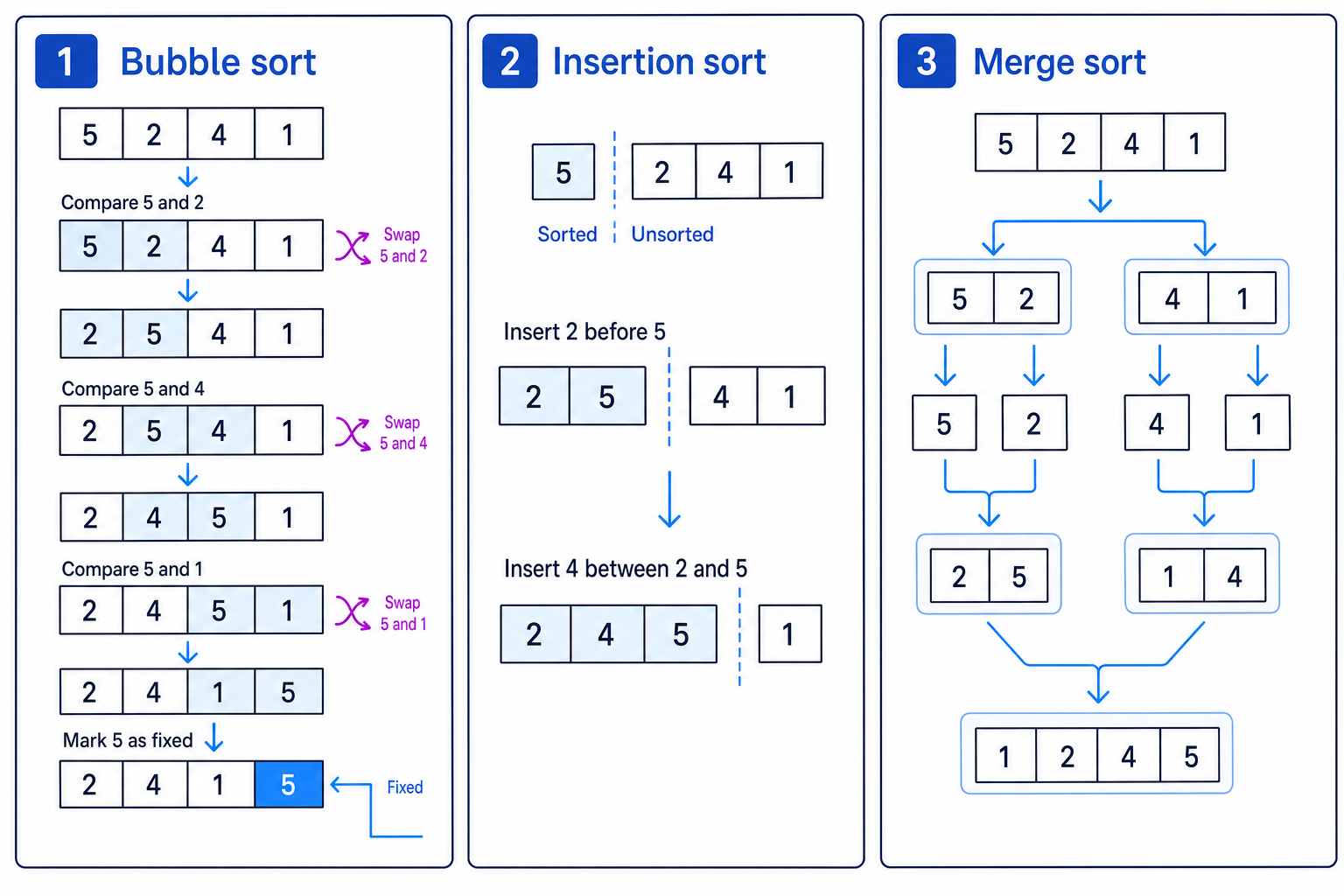

Diagram showing bubble sort, insertion sort and merge sort

Bubble sort

Bubble sort repeatedly compares neighbouring items and swaps them if they are in the wrong order.

Definition

Pass

A pass is one full movement through the list, comparing adjacent pairs.

Main steps

For ascending order:

Compare the first pair of adjacent items.
Swap them if the left item is greater than the right item.
Move one position along and compare the next pair.
Continue to the end of the list.
After one pass, the largest item has moved to the end.
Repeat passes until the list is sorted.

Recognising bubble sort in code

Bubble sort code often has:

repeated passes through the list
comparisons of adjacent items, such as items[j] and items[j + 1]
swaps using a temporary variable
sometimes a Boolean flag such as swapped

Example

Applying bubble sort

Sort [4, 1, 3, 2] into ascending order.

First pass: compare 4 and 1, then swap to get [1, 4, 3, 2]. Compare 4 and 3, then swap to get [1, 3, 4, 2]. Compare 4 and 2, then swap to get [1, 3, 2, 4].
The largest value, 4, is now fixed at the end. Second pass: compare 1 and 3, no swap. Compare 3 and 2, then swap to get [1, 2, 3, 4].
A further pass would make no swaps, confirming the list is sorted.

Common Mistake

Only doing one pass

One pass of bubble sort does not usually sort the whole list. It normally only guarantees that the largest unsorted item has moved to the correct end position.

Insertion sort

Insertion sort builds up a sorted section at the start of the list. It takes the next unsorted item and inserts it into the correct position within the sorted section.

Key Idea

Insertion sort

Think of insertion sort like sorting playing cards in your hand: keep the left side sorted, then insert each new card where it belongs.

Main steps

For ascending order:

Treat the first item as already sorted.
Take the next item as the value to insert.
Compare it with items in the sorted section.
Shift larger items one place to the right.
Insert the value into the gap.
Repeat until every item has been inserted.

Recognising insertion sort in code

Insertion sort code often contains:

a key or current value being stored
a sorted left section
items being shifted right
the key being inserted into the correct gap

Example

Applying insertion sort

Sort [6, 3, 5, 2] into ascending order.

Treat [6] as the sorted section. Insert 3 before 6, giving [3, 6, 5, 2].
Now [3, 6] is sorted. Insert 5 between 3 and 6, giving [3, 5, 6, 2].
Now [3, 5, 6] is sorted. Insert 2 before 3, shifting 3, 5 and 6 right, giving [2, 3, 5, 6].

Merge sort

Merge sort splits a list into smaller lists, then merges them back together in order.

Definition

Divide and conquer

A divide and conquer algorithm breaks a problem into smaller parts, solves those parts, then combines the results.

Merge sort does not need the original list to be sorted. However, when merging two lists, each smaller list being merged should already be sorted.

Main steps

Split the list into two halves.
Keep splitting until each sub-list has one item.
Merge pairs of sub-lists back together in sorted order.
Continue merging until there is one sorted list.

Recognising merge sort in code

Merge sort code often contains:

splitting a list into left and right halves
a procedure or function that may call itself on each half
a separate merge step
comparisons between the first remaining items in two smaller sorted lists

Example

Applying merge sort

Sort [8, 3, 7, 2] into ascending order.

Split the list into [8, 3] and [7, 2], then split again into [8], [3], [7] and [2].
Merge single-item lists in order: [8] and [3] become [3, 8]; [7] and [2] become [2, 7].
Merge [3, 8] and [2, 7]: take 2, then 3, then 7, then 8, giving [2, 3, 7, 8].

Quick comparison

Algorithm	Main idea	Pre-requisite	Code pattern to spot
Linear search	Check each item in order	None	Loop through every item comparing with target
Binary search	Check middle, discard half	Data must be sorted	`low`, `high`, `mid`, and `DIV`
Bubble sort	Swap adjacent items	None	Adjacent comparisons and repeated passes
Insertion sort	Insert each item into a sorted left section	None	`key` value and shifting items right
Merge sort	Split, then merge in order	None for the original list	Halves, single-item lists, merge step

Exam technique

In the exam

Check the data first: if a search uses halves, the list must be sorted, so it is binary search.
When tracing a sort, write the list after each meaningful swap, insertion or merge so you do not lose track.
You do not need to memorise exact code; focus on recognising the algorithm’s structure and applying its steps accurately.

Self review

Check yourself

Why would binary search fail on an unsorted list?
In bubble sort, what is guaranteed after one full pass through the list?
How is insertion sort different from merge sort?
