An automated vertical farm uses a smart monitoring system. The setup includes five temperature sensors and two irrigation controllers. All seven of these peripheral devices are connected to one Central Switch.
The system is configured using a star topology.

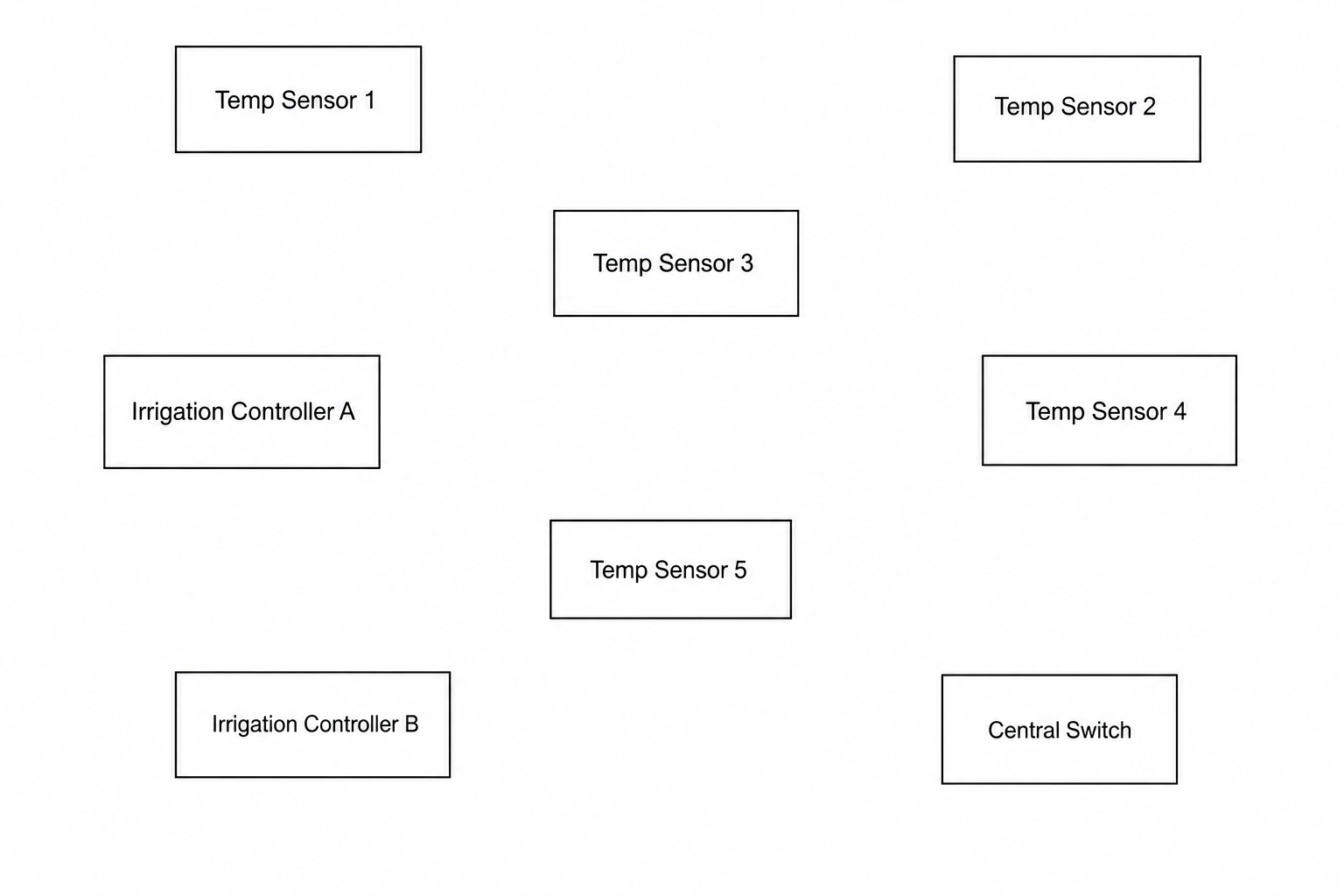

The diagram below shows the layout of these components within the facility:
Draw a diagram to show how the five temperature sensors, the two irrigation controllers, and the Central Switch must be connected to establish a star topology.
Networks and topologies Questions
Practise OCR GCSE Computer Science Networks and topologies with exam-style questions for GCSE Computer Science. 20 questions, matched to the OCR GCSE Computer Science (J277) specification and written in Component 01 and Component 02 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
