An acoustic monitoring station records a low-frequency sound pulse from an underwater volcanic eruption. The captured analogue signal is converted into a digital representation.
The recorded sound clip is exactly 0.5 seconds long and is sampled at a frequency of 16 Hz.
The digital representation of the wave has a bit depth of 4 and is stored in two's complement.
Sound data:
0100 0010 1101 1010 1100 0000 0101 0011

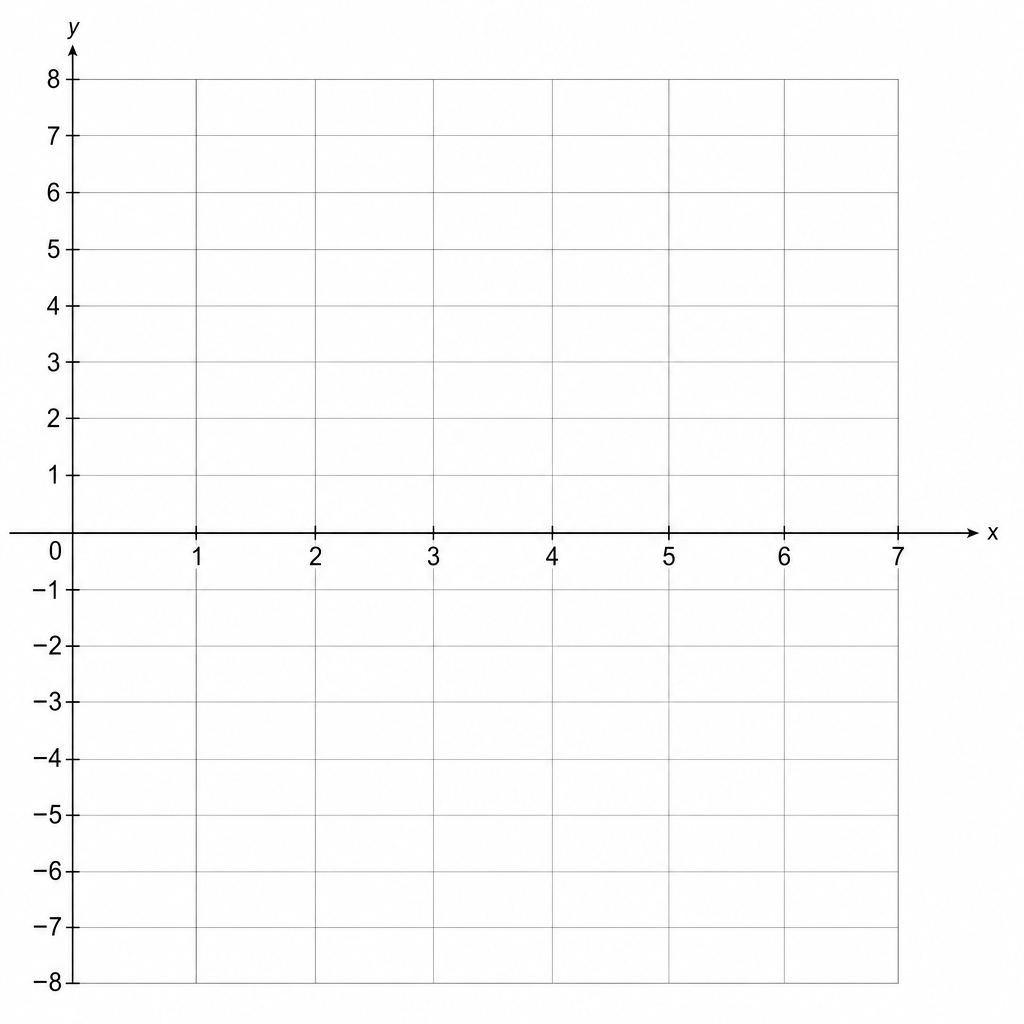

Draw a graph on the grid below to represent the sampled digital sound wave.
You must include:
- descriptive labels for both the x and y axes
- appropriate numerical values for both axes
- each digital sample plotted clearly as an 'X'
- the individual sample points joined up with straight lines to show the wave shape
