Question 30
Medium

An intelligent thermostat selects the target temperature based on the user's mode setting:

  • Users who select "Eco" mode have their target temperature set to 17°C.
  • Users who select "Comfort" mode have their target temperature set to 21°C.
  • Any other selection sets the target temperature to 19°C.

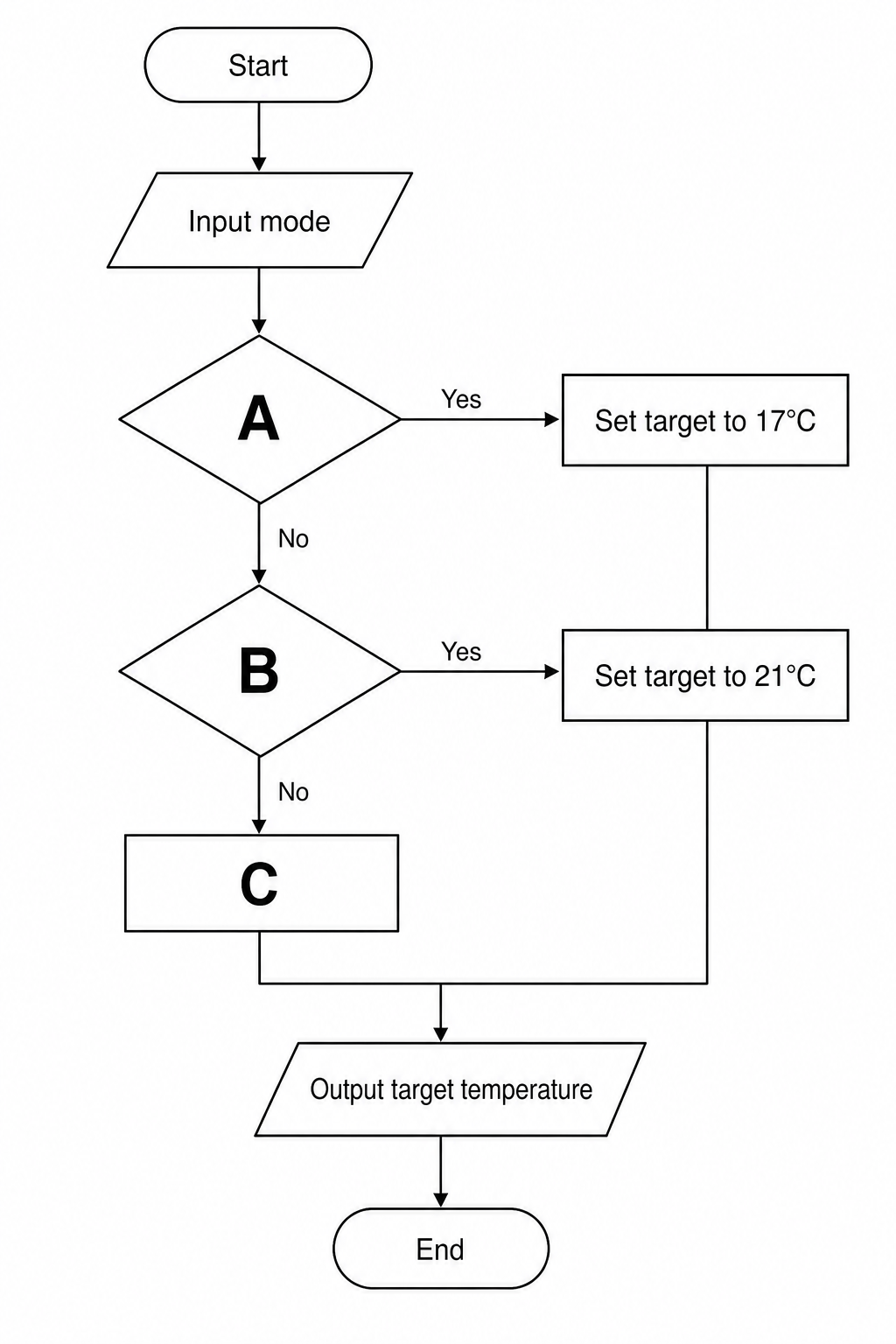

An incomplete flowchart for this algorithm is shown below:

Incomplete flowchart for thermostat temperature selection

Complete the flowchart by stating what should be written inside:

a.

Decision box A

[2]
b.

Decision box B

[2]
c.

Process block C

[2]
