Built-in and user-devised subprograms

What you'll learn

  • What a subprogram is and why programs are split into smaller named parts.
  • How to use pre-existing subprograms: built-in and library subprograms.
  • How to write your own user-devised subprograms in Python 3.
  • The difference between procedures and functions, including parameters, arguments and return values.

The big idea: programs can call smaller programs

A program does not have to be one long list of instructions. You can split it into smaller named sections, then call each section when you need it.

Definition

Subprogram

A subprogram is a named block of code designed to do a specific task. Calling a subprogram means running that named block of code from another part of the program.

Subprograms help with:

  • decomposition — breaking a problem into smaller parts
  • reuse — writing code once and using it many times
  • readability — making the program easier to understand
  • testing — checking one small part at a time

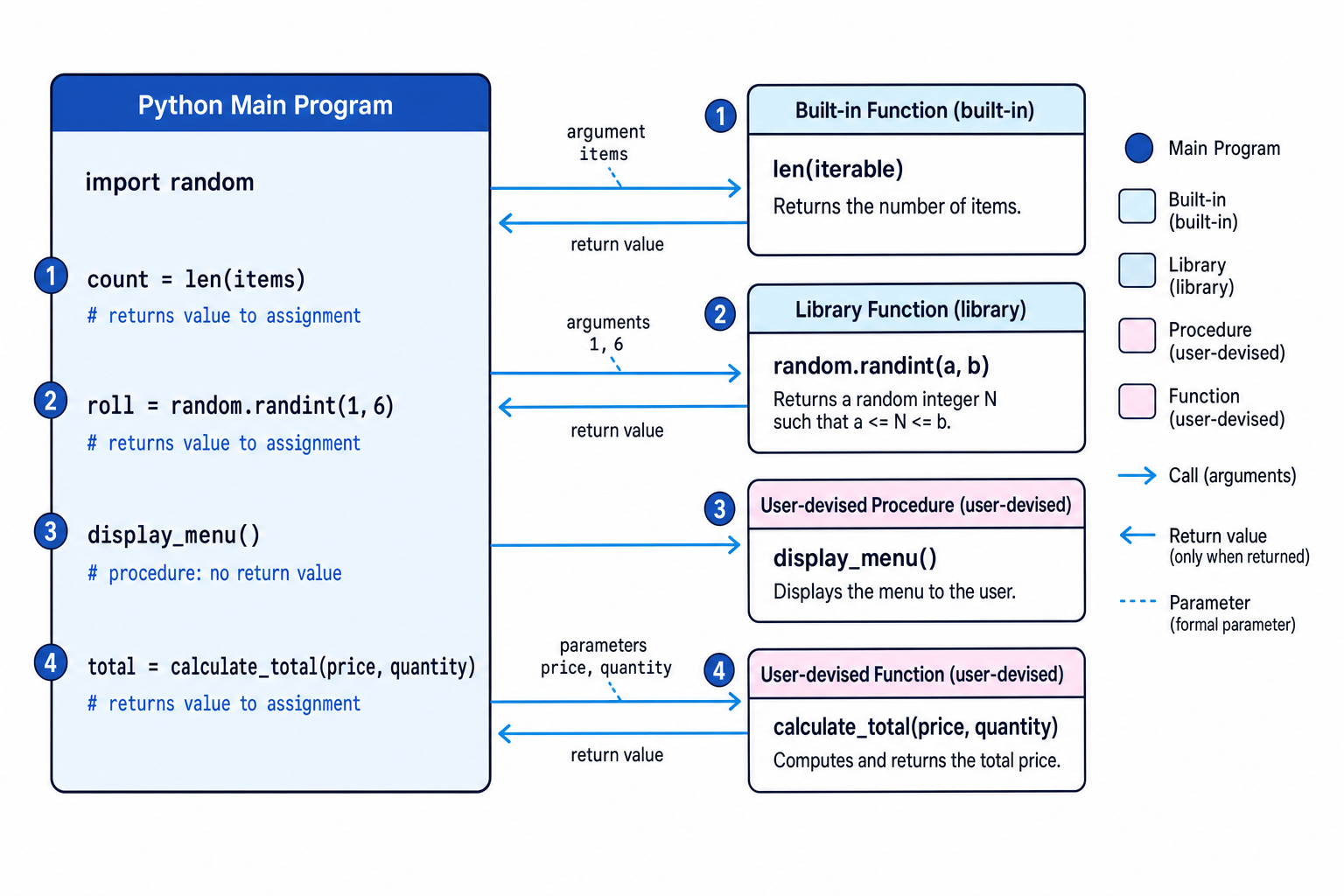

The diagram shows the main program calling different kinds of subprograms. Some return a value back to the main program; others just perform an action.

Schematic of a Python main program calling built-in, library and user-devised procedures and functions

Key Idea

Subprograms reduce repetition

If the same logic is needed more than once, it is usually better to put it in a subprogram and call it when needed, rather than copying and pasting the same code.

Pre-existing subprograms

A pre-existing subprogram is one that has already been written for you. In Python, this includes built-in subprograms and library subprograms.

Built-in subprograms

Definition

Built-in subprogram

A built-in subprogram is available in Python without needing to import anything first.

Useful Python built-ins include:

  • print() — displays output
  • input() — gets text input from the user
  • int() — converts a suitable value to an integer
  • str() — converts a value to a string
  • len() — returns the number of items in a sequence, such as a string or list

For example:

name = input("Enter your name: ")
number_of_letters = len(name)
print("Your name has", number_of_letters, "letters")

Here, input(), len() and print() are all built-in subprograms.

Library subprograms

Definition

Library subprogram

A library subprogram is a pre-written subprogram stored in a library or module. A module is a file or collection of Python code that can be imported into your program.

For example, Python’s random module contains subprograms for generating random values.

import random

dice_roll = random.randint(1, 6)
print("You rolled", dice_roll)

The line import random makes the random module available. The call random.randint(1, 6) returns a random integer from 1 to 6 inclusive.

Example

Using ready-made subprograms in a dice roll

  1. The program needs a random whole number from 1 to 6, so random.randint(1, 6) is a suitable library function. Because it is in the random module, the program must include import random.

  2. The user’s guess from input() is text, but the dice roll is an integer. To compare them properly, convert the input using int().

  3. The comparison should be between two integer values using ==, so the program compares guess == roll.

  4. The finished code uses built-in subprograms and a library subprogram together:

import random

roll = random.randint(1, 6)
guess = int(input("Guess the dice roll: "))

if guess == roll:
    print("Correct!")
else:
    print("Bad luck. The roll was", roll)
Common Mistake

Forgetting the import

If you use a library subprogram such as random.randint(), you must import the module first. Without import random, Python will not know what random refers to.

User-devised subprograms

A user-devised subprogram is one you write yourself. In Python, you define one using def.

Definition

User-devised subprogram

A user-devised subprogram is a subprogram created by the programmer to solve part of the problem.

A user-devised subprogram has:

  • a name
  • optional parameters
  • an indented body of code
  • sometimes a return value

For example:

def display_welcome():
    print("Welcome to the quiz!")

The subprogram above is called like this:

display_welcome()

Procedures and functions

At GCSE, you should know the difference between a procedure and a function.

Procedures

Definition

Procedure

A procedure is a subprogram that performs an action but does not return a value to be used elsewhere in the program.

For example, this procedure displays a menu:

def display_menu():
    print("1. Start game")
    print("2. View scores")
    print("3. Quit")

You call it like this:

display_menu()

The purpose is the action: displaying the menu.

Functions

Definition

Function

A function is a subprogram that returns a value to the part of the program that called it.

For example:

def calculate_total(price_pence, quantity):
    total = price_pence * quantity
    return total

You call it and store the returned value:

amount_to_pay = calculate_total(120, 3)
print(amount_to_pay)

The function returns 360, so amount_to_pay stores 360.

Tip

Procedure or function?

Use a procedure when you mainly want an action to happen, such as displaying a menu. Use a function when the calling code needs a result back, such as a calculated total.

Common Mistake

Printing instead of returning

print() displays a value on the screen. return sends a value back to the calling code. If the main program needs to store or compare the result, the subprogram should return it, not just print it.

Example

Choosing procedure or function

  1. display_menu() only needs to show options to the user. The main program does not need a calculated result back, so this should be a procedure.

  2. calculate_total(price_pence, quantity) needs to work out a value that will be stored or used later. Because the result must go back to the main program, this should be a function.

  3. get_guess() may ask the user for input and convert it to an integer. The main program needs the user’s guess, so it should return the converted value and therefore act as a function.

Parameters, arguments and return values

Subprograms often need data to work with.

Definition

Parameters and arguments

A parameter is a variable listed in a subprogram definition. An argument is the actual value passed into the subprogram when it is called.

For example:

def calculate_total(price_pence, quantity):
    return price_pence * quantity

total_pence = calculate_total(120, 3)

In the definition, price_pence and quantity are parameters.

In the call, 120 and 3 are arguments.

The returned value is stored in total_pence.

Example

Tracing a function call

  1. In the call calculate_total(120, 3), the argument 120 is assigned to the parameter price_pence, and the argument 3 is assigned to quantity.

  2. The expression price_pence * quantity is evaluated as 120 * 3, giving 360.

  3. The statement return price_pence * quantity sends 360 back to the call, so total_pence stores 360.

Putting it all together

A good GCSE program may use all three types:

  • built-in subprograms, such as print(), input() and int()
  • library subprograms, such as random.randint()
  • user-devised procedures and functions written with def

Here is a complete Python 3 example:

import random

def display_title():
    print("Number Guessing Game")

def get_guess():
    guess_text = input("Guess a number from 1 to 6: ")
    return int(guess_text)

def is_correct(guess, secret_number):
    return guess == secret_number

display_title()

secret_number = random.randint(1, 6)
player_guess = get_guess()

if is_correct(player_guess, secret_number):
    print("Correct!")
else:
    print("Bad luck. The number was", secret_number)

This program uses:

  • random.randint(1, 6) — a library function
  • print(), input() and int() — built-in subprograms
  • display_title() — a user-devised procedure
  • get_guess() and is_correct() — user-devised functions
Common Mistake

Definition before call

In Python, the def statement must be executed before the subprogram is called. A common structure is to put user-devised subprogram definitions near the top of the file, then put the main program underneath.

Writing clear subprograms

Aim for each subprogram to do one clear job. Choose names that describe the task, such as calculate_score() rather than do_stuff().

Good habits include:

  • using meaningful names for subprograms and parameters
  • passing data into subprograms using parameters
  • returning values from functions instead of relying on unnecessary global variables
  • avoiding names that clash with built-ins, such as naming a variable input or list
  • keeping the main program short and readable by moving repeated tasks into subprograms
Exam technique

In the exam

  1. When asked to write a program using subprograms, include clear def definitions and show where each subprogram is called.

  2. If you use a library subprogram such as random.randint(), remember the import line and use the correct dot notation.

  3. In explanations, say that a procedure performs an action, while a function returns a value that can be stored, displayed, compared or used in a calculation.

Self review

Check yourself

  • What is the difference between a built-in subprogram and a library subprogram?
  • How would you write a procedure called display_menu() and a function called calculate_points(goals, assists)?
  • In total = calculate_total(120, 3), which parts are the function name, arguments and returned value?
