Robust and secure programming

What you'll learn

  • How validation helps a program reject unsuitable input.
  • How simple authentication checks a username and password.
  • How to choose normal, boundary, and erroneous test data.
  • How to spot and correct syntax errors and logic errors.

Why programs need to be robust and secure

A program is robust if it can cope with unexpected or incorrect input without crashing or producing nonsense.

A program is secure if it helps protect data, systems, or users from unauthorised access or misuse.

In this topic, the GCSE focus is very practical: checking user input, checking login details, testing programs, and fixing errors.

Definition

Robust program

A robust program handles invalid or unexpected input sensibly, usually by rejecting it, showing an error message, and asking the user to try again.

Definition

Secure program

A secure program helps prevent unauthorised users from accessing data or features they should not be allowed to use.

The two routines below are the big idea: validation checks whether input is acceptable, while authentication checks whether a user is who they claim to be.

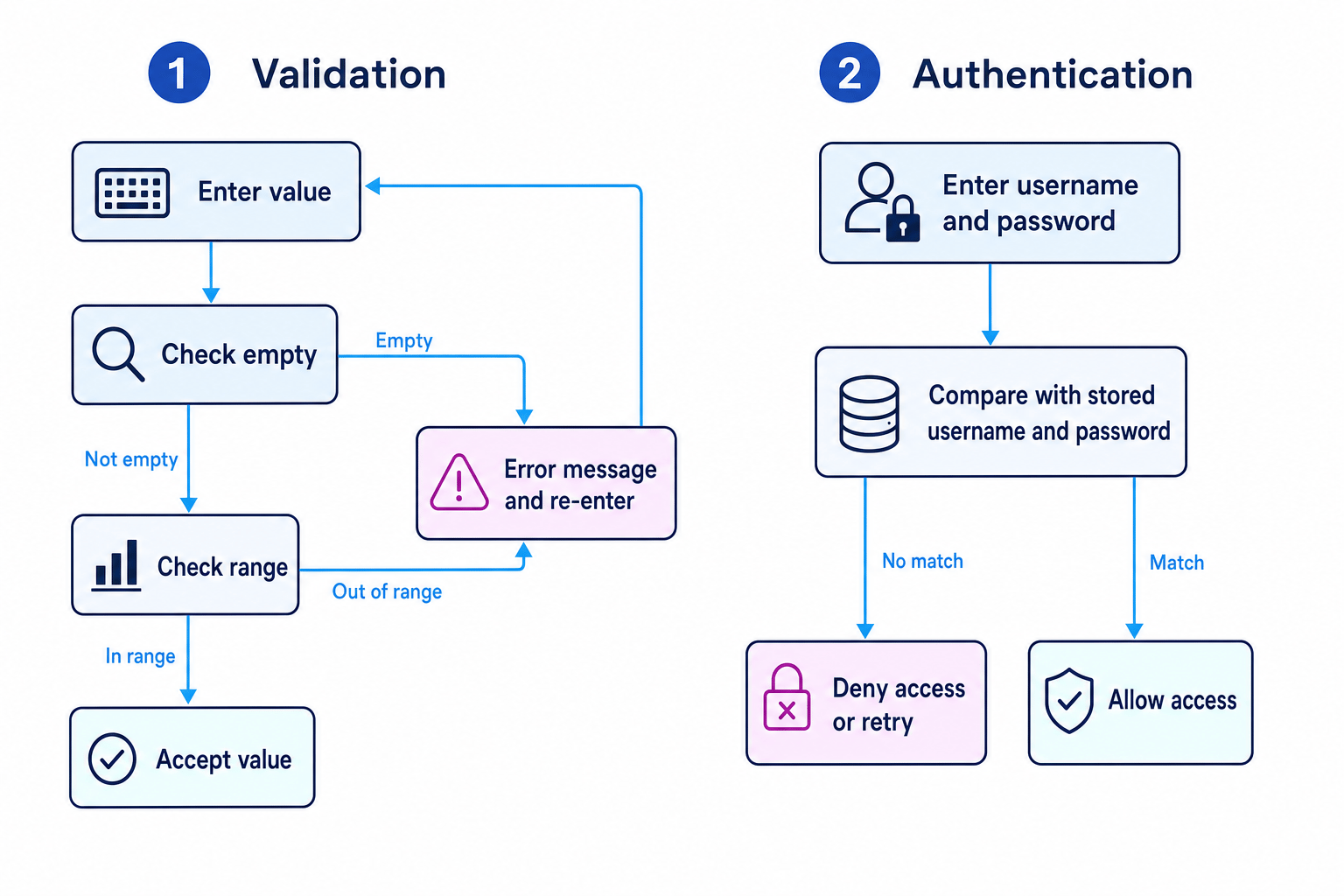

Flowchart showing a validation loop and an authentication routine

Validation: checking input before using it

Validation means checking whether data entered by a user is acceptable for the program.

For example, a program might check that:

  • a name is not empty
  • a password has a minimum length
  • a number lies between 1 and 10
Definition

Validation

Validation is the process of checking that input data is reasonable and meets the rules set by the program before it is processed.

Validation does not prove the data is true. If someone enters their age as 15, a range check may accept it, but the program cannot know whether they are lying.

Common Mistake

Validation does not prove truth

Validation checks whether data follows the rules. It does not prove the data is accurate in real life.

Common validation checks

A presence check makes sure something has been entered. For example, a username must not be an empty string.

A length check checks how many characters are in a string. For example, a password must be at least 8 characters long.

A range check checks whether a value is between a lower and upper limit. For example, a rating must be between 1 and 10.

Writing a validation routine

A validation routine usually uses a loop:

  1. Ask the user for input.
  2. Check whether the input is valid.
  3. If it is invalid, show an error message and ask again.
  4. Only continue once the input is valid.

Here is an AQA-style pseudocode routine for a number between 1 and 10:

valid ← FALSE

WHILE valid = FALSE
    OUTPUT "Enter a number from 1 to 10"
    number ← USERINPUT

    IF number >= 1 AND number <= 10 THEN
        valid ← TRUE
    ELSE
        OUTPUT "Invalid number"
    ENDIF
ENDWHILE
Key Idea

Range checks need both limits

For a value to be inside a range, it must be greater than or equal to the lower limit and less than or equal to the upper limit.

Example

Writing a range validation routine

A program should only accept a difficulty level from 1 to 5.

  1. The valid values must satisfy both conditions: level >= 1 and level <= 5.

  2. Because both conditions must be true at the same time, join them using AND.

  3. Put the check inside a loop so the user is asked again if they enter 0, 6, or another invalid value.

    valid ← FALSE

    WHILE valid = FALSE OUTPUT "Enter difficulty level from 1 to 5" level ← USERINPUT

     IF level >= 1 AND level <= 5 THEN
     valid ← TRUE
 ELSE
     OUTPUT "Level must be between 1 and 5"
 ENDIF

    ENDWHILE

Tip

Use AND for inside a range

For “between 1 and 10”, use number >= 1 AND number <= 10. Using OR here is a very common logic error.

Authentication: checking identity

Authentication means checking that a user is who they claim to be. At GCSE, you only need simple authentication using a plain text username and password.

Definition

Authentication

Authentication is the process of checking a user’s identity, often by comparing entered login details with stored login details.

A simple authentication routine:

  • stores a correct username and password

  • asks the user to enter their username and password

  • compares both entered values with the stored values

  • allows access only if both match

    storedUsername ← "student1" storedPassword ← "blue7"

    OUTPUT "Enter username" username ← USERINPUT

    OUTPUT "Enter password" password ← USERINPUT

    IF username = storedUsername AND password = storedPassword THEN OUTPUT "Access granted" ELSE OUTPUT "Access denied" ENDIF

Common Mistake

Plain text passwords are only for this GCSE routine

In real systems, passwords should not be stored as plain text. For this specification, simple username and password checks use plain text values, so do not add encryption or hashing unless the question asks for it.

Example

Tracing an authentication check

The stored username is student1 and the stored password is blue7. A user enters username student1 and password Blue7.

  1. Compare the usernames: student1 = student1, so the username condition is true.
  2. Compare the passwords exactly: Blue7 is not the same as blue7, so the password condition is false.
  3. The authentication uses AND, so both conditions must be true. Since one condition is false, access is denied.
Common Mistake

Passwords are case-sensitive

Blue7 and blue7 are different strings because the capital letter is different.

Testing: finding problems before users do

Testing means running an algorithm or program with chosen input data to check whether it works correctly.

Definition

Testing

Testing is the process of running a program or algorithm with test data and comparing the actual result with the expected result.

Good testing is planned. You should not just try one random value and assume the program works.

A useful test plan includes:

  • the input data
  • the type of test data
  • the expected result
  • the actual result after running the program
  • whether the test passed or failed
Key Idea

Expected result first

Decide what should happen before running the program. This makes it much easier to spot when the program is wrong.

Test data

Test data is the input data used to test a program.

For GCSE, you need to know three main types.

Normal test data

Normal test data is valid, typical data that should be accepted.

For a range of 1 to 10, normal data could be 5 or 7.

Boundary test data

Boundary test data is data at the edge of what is allowed, and just outside the edge.

For a range of 1 to 10, the key boundary values are:

  • 0: just below the valid range, should be rejected
  • 1: lower boundary, should be accepted
  • 10: upper boundary, should be accepted
  • 11: just above the valid range, should be rejected

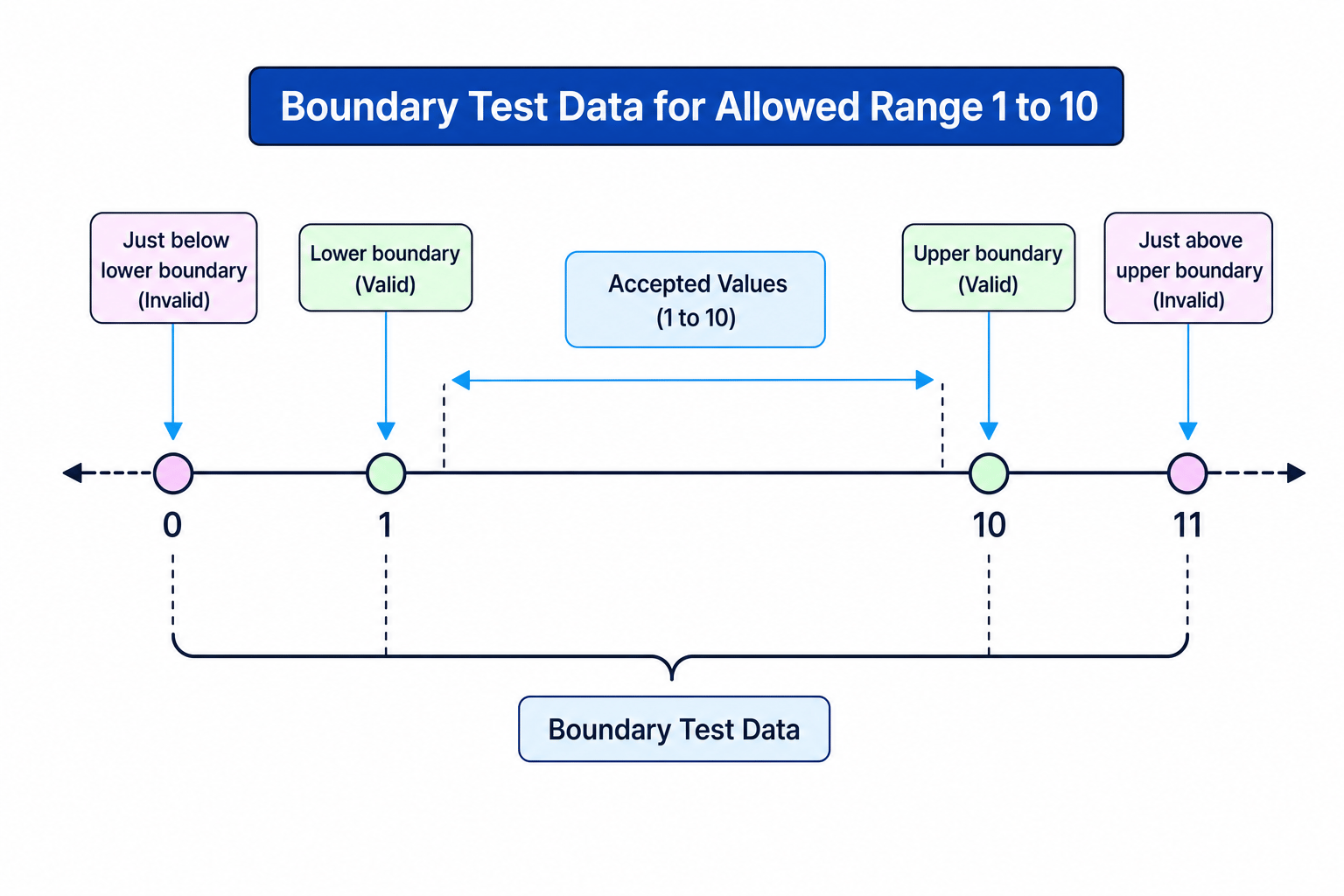

Number line showing boundary test data for the allowed range 1 to 10

Erroneous test data

Erroneous test data is invalid data that should be rejected.

Examples might include:

  • a number outside the allowed range
  • a blank input when something must be entered
  • text when a number is expected
Example

Selecting test data for a range check

A program should accept only whole numbers from 1 to 10.

  1. Choose normal data well inside the range, such as 5. The expected result is accepted.
  2. Choose boundary data at and just outside the limits: 0, 1, 10, and 11. The expected results are reject, accept, accept, reject.
  3. Choose erroneous data that breaks the rule in a different way, such as an empty input or text like ten. The expected result is rejection without crashing.
Common Mistake

Forgetting just outside the boundary

Boundary testing is not only the endpoints. For 1 to 10, test 1 and 10, but also 0 and 11.

Errors in programs

An error is a fault in an algorithm or program. The specification focuses on two types: syntax errors and logic errors.

Syntax errors

A syntax error happens when the code breaks the grammar rules of the language or pseudocode.

Examples include:

  • missing THEN after an IF condition
  • misspelling a keyword such as WHILE
  • forgetting ENDIF
Definition

Syntax error

A syntax error is an error caused by breaking the rules of the programming language, so the program may not run.

For example, this has a syntax error because THEN is missing:

IF number >= 1 AND number <= 10
    OUTPUT "Accepted"
ENDIF

Logic errors

A logic error happens when the program runs, but it does the wrong thing.

Definition

Logic error

A logic error is an error where the program runs but produces an incorrect result because the algorithm’s logic is wrong.

For example, this code runs, but the condition is wrong:

IF number >= 1 OR number <= 10 THEN
    OUTPUT "Accepted"
ELSE
    OUTPUT "Rejected"
ENDIF

This accepts almost every number. For example, 99 is accepted because 99 >= 1 is true.

Example

Correcting a logic error

A program should accept numbers from 1 to 10, but it uses this condition: number >= 1 OR number <= 10.

  1. Test a value below the range, such as 0. The condition 0 <= 10 is true, so the program incorrectly accepts it.
  2. Test a value above the range, such as 11. The condition 11 >= 1 is true, so the program incorrectly accepts it.
  3. To be inside the range, the number must pass both limits, so replace OR with AND: number >= 1 AND number <= 10.

Correcting errors

When correcting a program, use the test results to locate the problem.

If the program will not run at all, suspect a syntax error first. Look for missing keywords, incorrect indentation in Python, spelling mistakes in commands, or unmatched brackets.

If the program runs but gives the wrong answer, suspect a logic error. Check conditions, calculations, loop boundaries, and whether variables are updated correctly.

Tip

Use failed tests as clues

If only boundary tests fail, the error is often in a comparison such as < instead of <=, or > instead of >=.

Exam technique

In the exam

  1. When asked for validation, write a check plus a response: reject invalid data, show an error message, and ask again if needed.
  2. For test data, always include expected outcomes, especially for boundary values just inside and just outside the valid range.
  3. When identifying errors, say whether it is a syntax error or logic error, then explain the effect on the program.
Self review

Check yourself

  • What is the difference between validation and authentication?
  • For an allowed range of 20 to 50, what boundary test data would you choose?
  • Why is age >= 13 OR age <= 18 wrong for checking whether an age is between 13 and 18?
