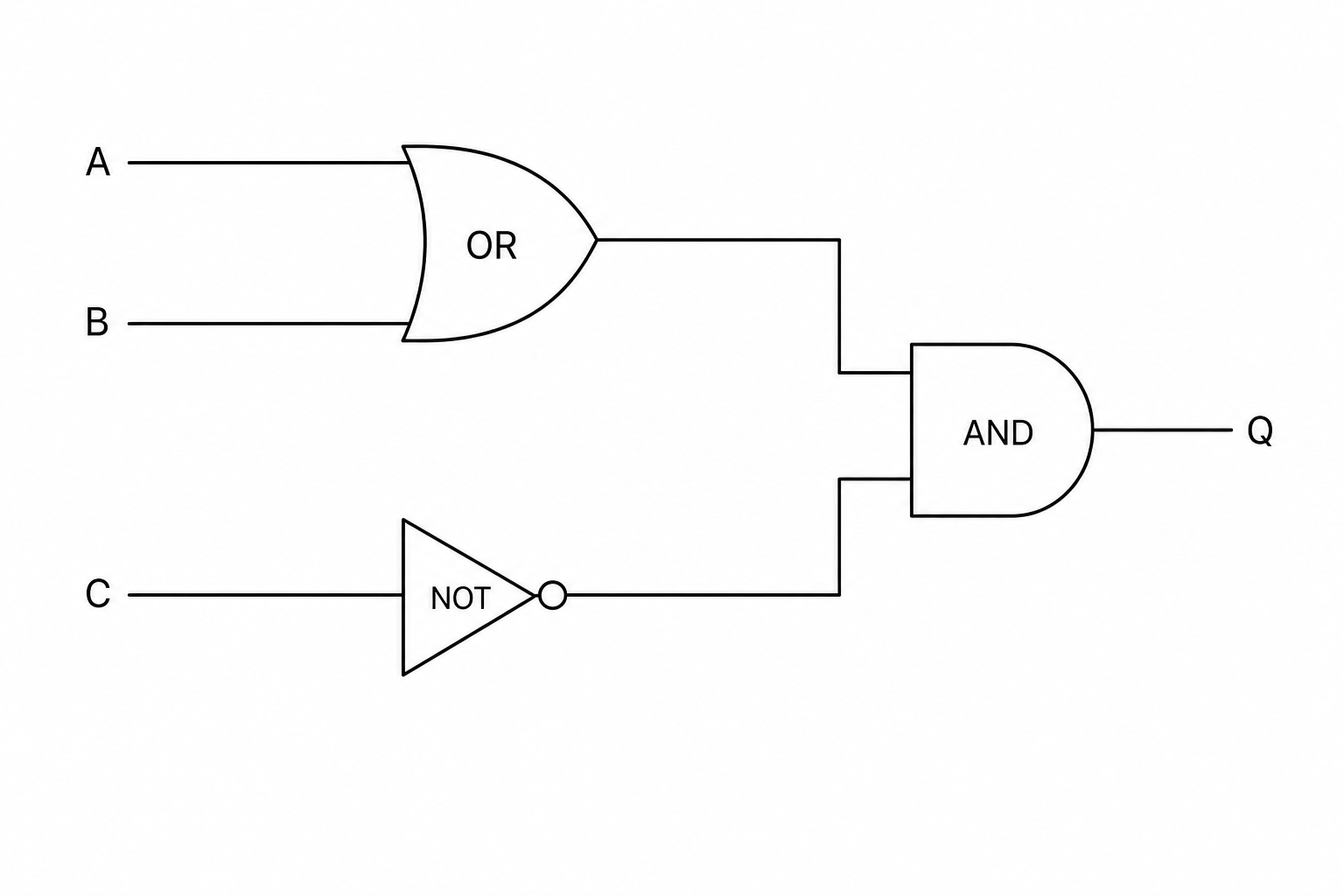

A digital climate control system uses a logic circuit to determine when to activate an auxiliary fan. The circuit has three inputs: AAA (temperature limit status), BBB (humidity limit status), and CCC (manual override status), and a single output QQQ (fan activation signal).
Write a Boolean expression to show how the output Q Q\,Q is calculated from the inputs AAA, BBB, and CCC.
You can use either the Boolean operator words (AND, OR, NOT) or their standard logic symbols.
Boolean logic Questions
Practise AQA GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 83 questions, matched to the AQA GCSE Computer Science (8525) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
