The table below shows a truth table with inputs AAA, BBB, C C\,C and intermediate/final outputs DDD, EEE, FFF.
| A | B | C | D | E | F |
|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 1 |
| 0 | 0 | 1 | 0 | 0 | 1 |
| 0 | 1 | 0 | 1 | 0 | 1 |
| 0 | 1 | 1 | 1 | 1 | 0 |
| 1 | 0 | 0 | 1 | 0 | 1 |
| 1 | 0 | 1 | 1 | 1 | 0 |
| 1 | 1 | 0 | 0 | 0 | 1 |
| 1 | 1 | 1 | 0 | 0 | 1 |

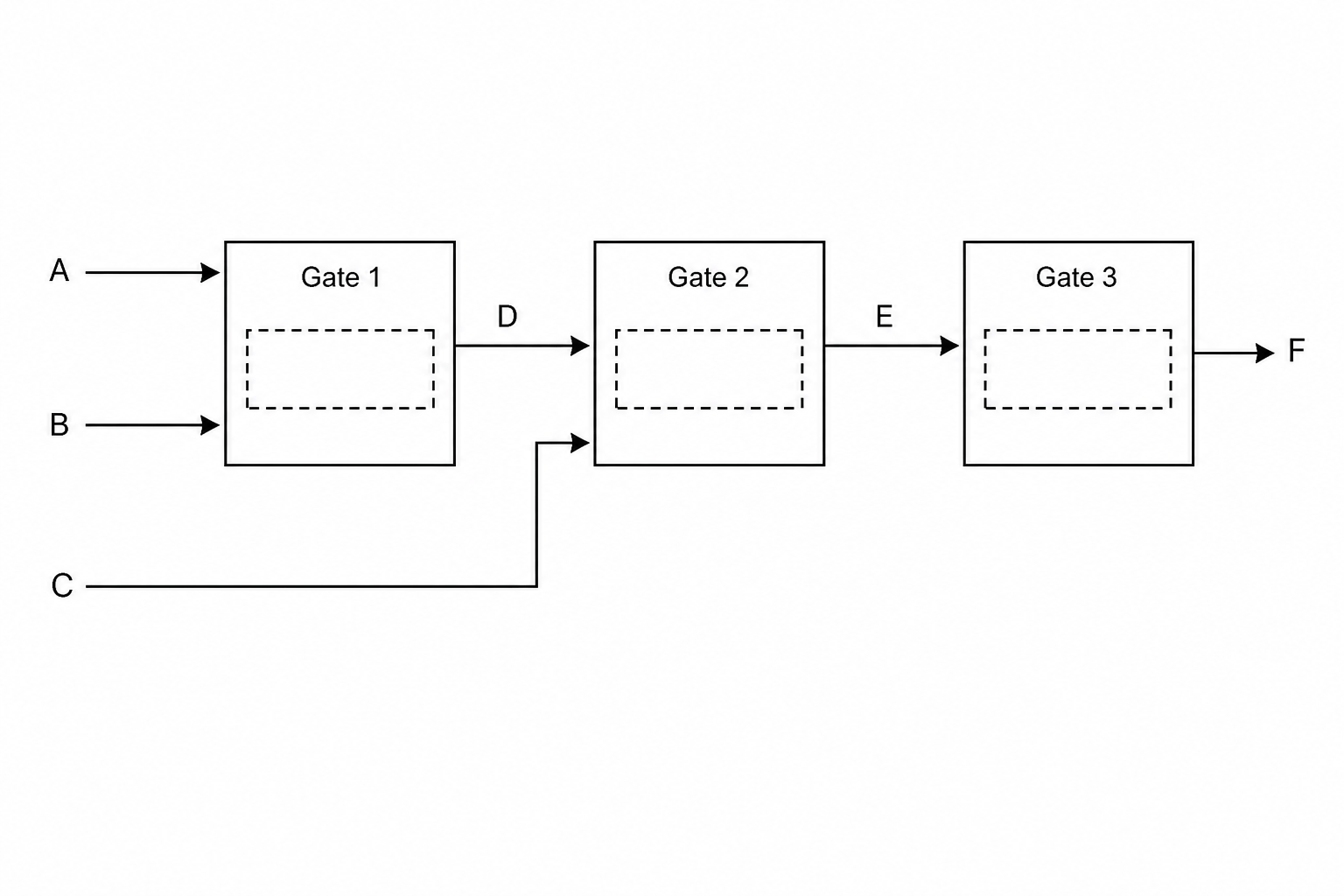

Complete the logic circuit below by identifying the name of the correct logic gate for each of the three empty boxes: Gate 1, Gate 2, and Gate 3.
The completed logic circuit must match the functionality represented by the truth table.
