Production and uses of NPK fertilisers

What you'll learn

• Why plants need nitrogen, phosphorus, and potassium to thrive.
• How we source the raw materials for fertilisers.
• How insoluble phosphate rock is chemically converted into useful, soluble salts.
• The differences between making a fertiliser in a school lab and producing it in an industrial plant.

What are NPK fertilisers?

As plants grow, they absorb nutrients from the soil. If a field is farmed repeatedly, those nutrients get used up, which limits how well future crops can grow. To keep agricultural productivity high, farmers replace these missing elements using synthetic fertilisers.

The three most important essential elements for plant growth are Nitrogen (N), Phosphorus (P), and Potassium (K).

Notice the word "formulation". An NPK fertiliser isn't just one single compound; it is a carefully designed mixture of several different chemical salts, blended together so the plant gets exactly the right ratio of nutrients it needs.

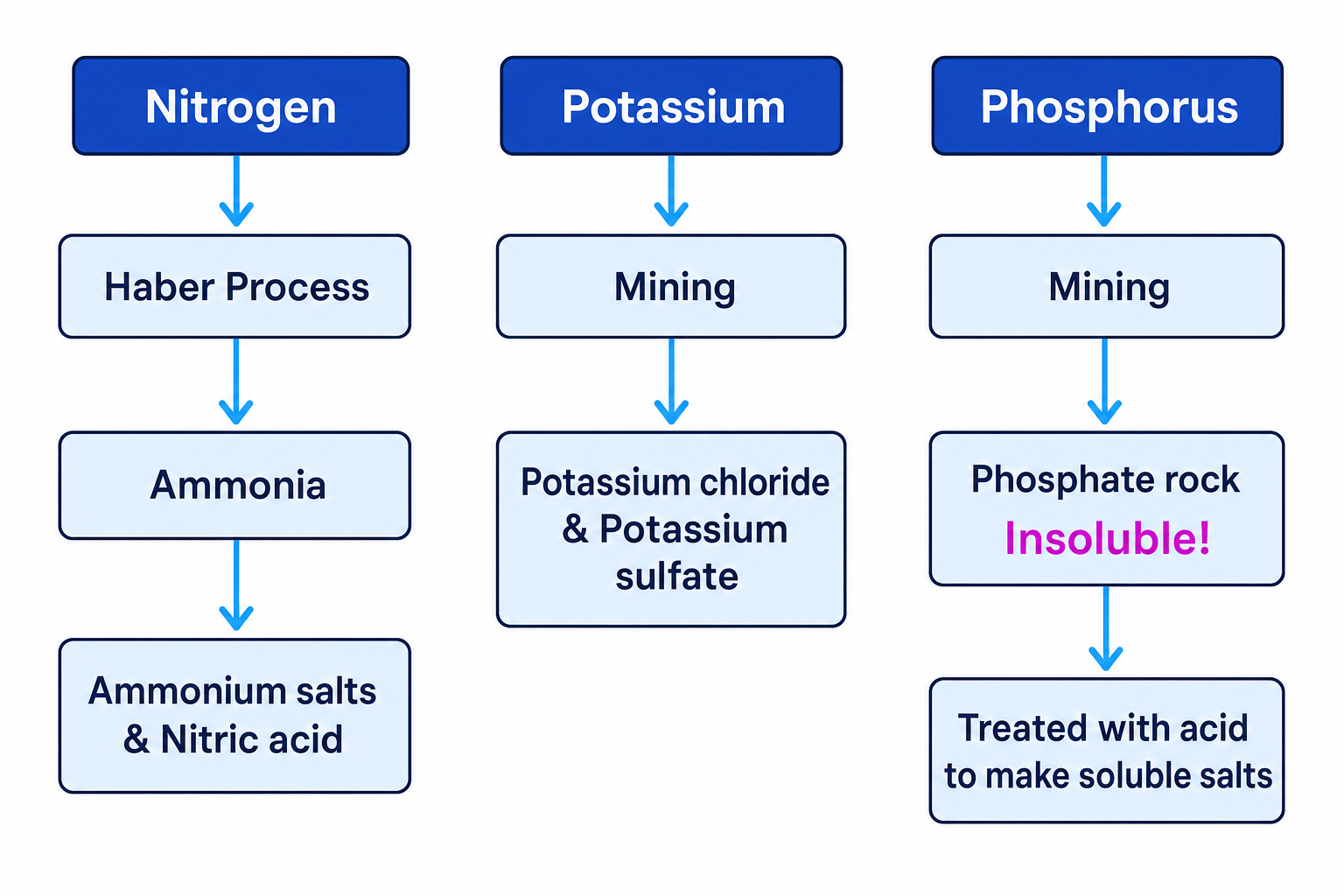

Where do the elements come from?

To make these massive quantities of fertiliser, scientists have integrated several different industrial and mining processes.

Sourcing Nitrogen (N)

Nitrogen is primarily sourced from ammonia gas (${NH}_3$), which is manufactured in the Haber process. Ammonia itself isn't a great fertiliser directly, but it is the starting point for two vital steps:

1. Some ammonia is reacted with oxygen and water to manufacture nitric acid (${HNO}_3$).
2. The remaining ammonia is reacted with acids to form highly soluble ammonium salts.

For example, reacting ammonia with nitric acid produces ammonium nitrate:

${NH}_3(aq)+{HNO}_3(aq)\rightleftharpoons {NH}_4{NO}_3(aq)$

Sourcing Potassium (K)

Potassium is much simpler to source. The salts potassium chloride and potassium sulfate are simply mined from the ground. Because these salts dissolve easily in water, they can be crushed, purified, and used directly as fertilisers without needing any complex chemical conversion.

The Phosphate Rock Problem

Like potassium salts, compounds containing phosphorus are also mined from the ground as phosphate rock.

However, there is a major problem: phosphate rock is mostly composed of highly insoluble calcium phosphate. Plants can only absorb nutrients that are dissolved in water through their roots. If you spread raw phosphate rock on a field, it just sits there.

To make the phosphorus useful, we must treat the phosphate rock with acid to produce soluble salts. The exact salt produced depends entirely on which acid is used. You need to memorise all three reactions:

1. Treatment with Nitric Acid

Reacting phosphate rock with nitric acid produces phosphoric acid and calcium nitrate. However, phosphoric acid is a liquid, so it is usually neutralised further with ammonia to produce ammonium phosphate, which can be added to the solid fertiliser mix.

2. Treatment with Sulfuric Acid

Reacting phosphate rock with sulfuric acid produces a mixture of calcium phosphate and calcium sulfate. This mixture has a specific industry name you need to know: single superphosphate.

3. Treatment with Phosphoric Acid

Reacting phosphate rock with phosphoric acid produces only one product: highly soluble calcium phosphate. This pure product is known as triple superphosphate.

Comparing Lab vs. Industrial Production

You need to be able to compare how fertilisers (like ammonium sulfate) are made in a school laboratory versus how they are manufactured on a massive industrial scale.

In the laboratory: You prepare an ammonium salt using a titration. You would place dilute ammonia solution in a conical flask, add an indicator, and slowly add dilute acid from a burette until neutralised. You would then gently heat the solution in a water bath to evaporate the water and allow crystals to form.

• Scale: Very small (a few grams).
• Process: Batch process (you make a small amount, stop, clean the equipment, and start again).
• Conditions: Room temperature and pressure, using dilute solutions to keep the experiment safe.

In industry: Industrial fertiliser production happens in massive chemical plants. Ammonia gas and highly concentrated acid are pumped directly into huge stainless-steel reaction chambers.

• Scale: Huge (thousands of tonnes a day).
• Process: Continuous process (raw materials are fed in at one end, and product pours out the other end 24/7 without stopping).
• Conditions: High pressures and temperatures. The reaction between ammonia and acids is highly exothermic; the heat released is actually captured and used to evaporate the water from the mixture, saving energy.
