Instrumental methods
What you'll learn
- What instrumental methods are used for in chemical analysis.
- The difference between detecting and identifying substances.
- Why instrumental methods are described as accurate, sensitive and rapid.
- How to compare instrumental methods with the chemical tests you have already learned.
The big picture: chemical analysis
In this topic, you are trying to answer a simple question:
“What substances are present in this sample?”
A sample is a small amount of material being tested. It might be a solution, a solid powder, a gas, a food sample, a water sample, or something from industry or medicine.
Chemical analysis can be used to find elements and compounds.
Definition
Element and compound
An element is a substance made from only one type of atom. A compound is a substance made from two or more different elements chemically joined together.
You should also be clear on the difference between detecting and identifying.
Definition
Detect and identify
To detect a substance means to show that it is present. To identify a substance means to work out exactly what it is.
For example, a test might detect that a metal ion is present, but a stronger test or instrument may identify it specifically as sodium ions, copper(II) ions, or another ion.
Chemical tests you already know
Before instrumental methods, GCSE Chemistry introduces several chemical tests. These are reactions carried out in the lab where you look for an observation.
Examples include:
- Flame tests for some metal ions.
- Adding sodium hydroxide solution to identify some metal ions from precipitate colours.
- Adding acid to test for carbonate ions, producing carbon dioxide.
- Adding silver nitrate solution to test for halide ions.
- Adding barium chloride solution to test for sulfate ions.
Definition
Chemical test
A chemical test is a lab reaction used to detect or identify a substance by making an observable change, such as a colour change, gas, flame colour, or precipitate.
A precipitate is an insoluble solid formed when two solutions react.
Key Idea
Chemical tests rely on observations
Chemical tests are useful, but they often depend on what you can see: flame colours, precipitate colours, gas bubbles, or cloudy solids.

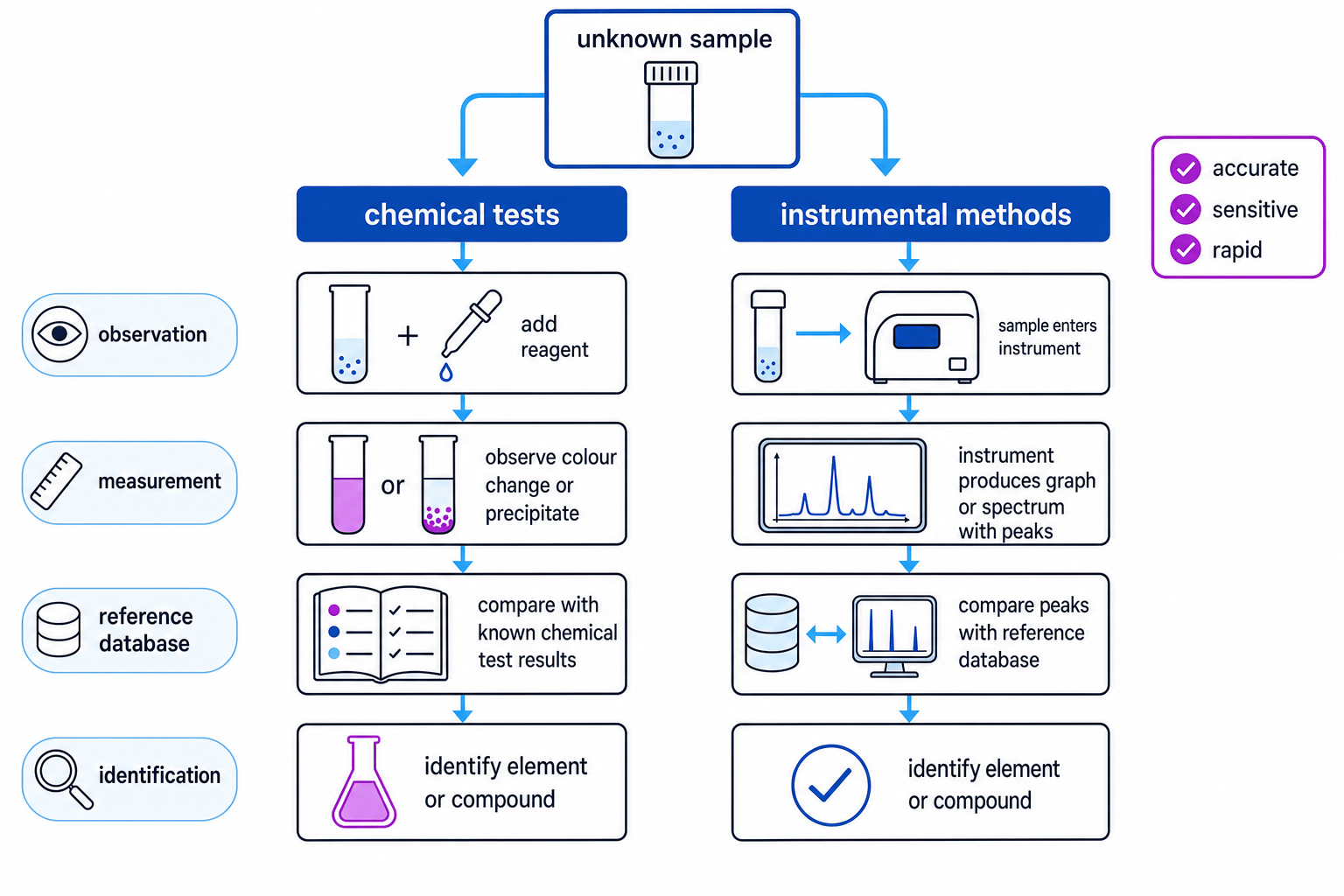

The diagram below shows the general difference between chemical tests and instrumental methods.
What is an instrumental method?

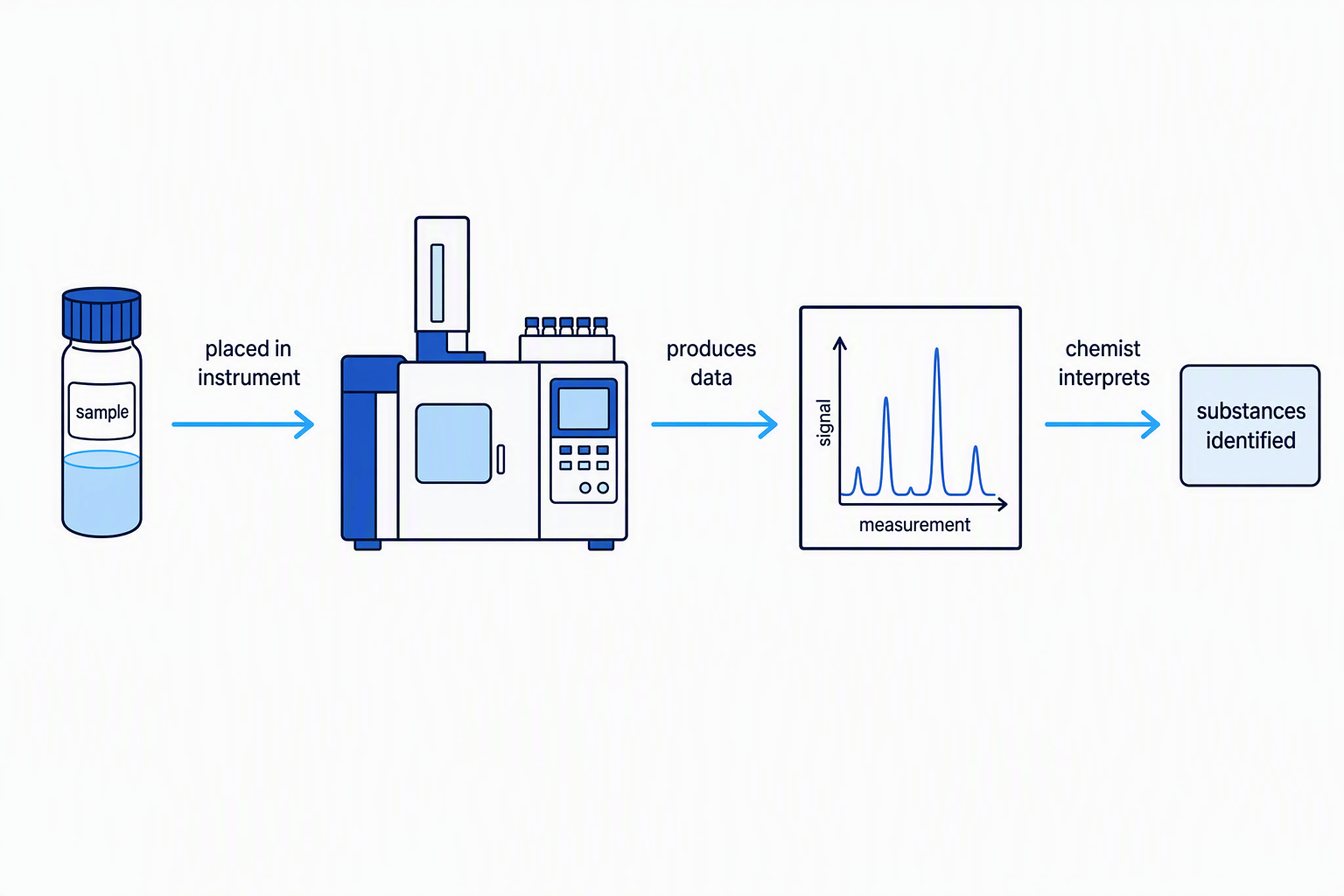

An instrumental method uses a machine or instrument to analyse a sample. The instrument makes measurements and produces data, often as numbers, a graph, or a spectrum.
Definition
Instrumental method
An instrumental method is a method of chemical analysis that uses scientific equipment to detect or identify elements and compounds from measured data.
An instrument may measure things such as:
- the colours or wavelengths of light emitted or absorbed;
- the masses of particles;
- how far substances travel in a separating system;
- electrical signals from substances in a sample.
At GCSE, you do not need to know the details of lots of different instruments in this section. The key idea is that instruments use measurements, not just human observations.
Comparing patterns with known results
Many instrumental methods work by comparing the result from the unknown sample with results from known substances.
For example, an instrument might produce a graph with peaks. The positions of the peaks can act like a “fingerprint” for a substance.
Definition
Spectrum
A spectrum is a pattern produced by an instrument, often shown as lines or peaks, that can be compared with known patterns to identify substances.
Example
Using a reference pattern
An unknown solution is tested using an instrument. The result has peaks at the same positions as a known sodium compound, with no extra peaks.
- Compare the positions of the peaks in the unknown result with the reference result for sodium compounds.
- Since the peak positions match, the instrument has detected the same substance or ion as the reference.
- Because there are no extra peaks, there is no evidence from this result for another substance being present.
- The sample can therefore be identified as containing sodium ions or a sodium compound, depending on the method used.
Advantage 1: instrumental methods are accurate
An accurate result is close to the true value or true answer.
Definition
Accurate
An accurate method gives results that are close to the true or correct value.
Chemical tests can be affected by human judgement. For example, two people might describe a precipitate as “cream” or “pale yellow”, especially if the colour is faint.
Instrumental methods often give a measurement instead. This can reduce uncertainty caused by eyesight, lighting, or unclear colour changes.
Common Mistake
Accurate does not just mean complicated
Do not write that instrumental methods are better “because they use machines”. The exam point is that they are more accurate, meaning the result is closer to the true answer.
Advantage 2: instrumental methods are sensitive
A sensitive method can detect very small amounts of a substance.
Definition
Sensitive
A sensitive method can detect a substance even when only a very small amount or very low concentration is present.
This is important when testing for trace amounts. A trace amount is a very tiny amount of a substance in a sample.
For example, a pollutant in water might be present in such a low concentration that it does not give an obvious precipitate or colour change in a school lab test. An instrumental method may still detect it.
Example
Choosing a method for a tiny amount
A water sample may contain a very small amount of a harmful metal ion. A student suggests using a simple precipitate test, but the lab chooses an instrumental method instead.
- The key detail is that the ion is present in a very small amount.
- A chemical precipitate test may not produce enough solid to see clearly.
- A sensitive instrumental method can detect substances at much lower concentrations.
- Therefore, the instrumental method is the better choice because it is more likely to detect the trace amount.
Tip
Sensitive means small amounts
If an exam question mentions “trace amounts”, “low concentration”, “tiny sample”, or “very dilute”, think sensitive.
Advantage 3: instrumental methods are rapid
A rapid method gives results quickly.
Definition
Rapid
A rapid method produces results in a short time.
Chemical tests may involve several steps: adding reagents, waiting for reactions, comparing colours, filtering, washing, or repeating tests.
Instrumental methods can often analyse a sample quickly, especially if the instrument is automated. This is useful when many samples need to be tested, such as in:
- water quality testing;
- medical laboratories;
- food safety checks;
- industrial quality control;
- forensic science.
Key Idea
The three key advantages
Compared with chemical tests, instrumental methods are usually more accurate, more sensitive, and more rapid.
Comparing instrumental methods with chemical tests
For this specification point, you need to be able to state advantages of instrumental methods compared with the chemical tests in this topic.
Good exam wording includes:
- “Instrumental methods are more accurate because they use measured data rather than relying only on visual observations.”
- “They are more sensitive, so they can detect very small amounts of a substance.”
- “They are rapid, so they can produce results quickly or test many samples in a short time.”
Chemical tests are still useful. They are often simple, cheap, and can be done in a school laboratory. But they are usually less suitable when the sample is very small, the concentration is very low, or a very reliable result is needed.
Example
Comparing methods in an answer
A company needs to test hundreds of drinking water samples for very low levels of contamination. Explain why an instrumental method is more suitable than a chemical test.
- The company has hundreds of samples, so speed matters.
- Instrumental methods are rapid, so they can test many samples more quickly than repeated test-tube reactions.
- The contamination is at a very low level, so sensitivity matters.
- Instrumental methods are sensitive, so they can detect very small amounts that may not give a visible chemical test result.
- The company needs reliable water safety results, so accuracy matters.
- Instrumental methods are accurate because they use measured data rather than just visible observations.
A careful comparison: instruments are not always “better” in every way
Instrumental methods have strong advantages, but that does not mean chemical tests are pointless.
Chemical tests can be:
- cheap;
- simple;
- quick for a single obvious sample;
- possible without specialist equipment.
Instrumental methods may require expensive equipment, trained operators, and calibration using known samples.
Definition
Calibration
Calibration means checking or adjusting an instrument using known standards, so its measurements can be trusted.
However, the specification point you need here is mainly the advantages of instrumental methods: accurate, sensitive, rapid.
Common Mistake
Do not overclaim
Avoid saying instrumental methods are “always perfect” or “always identify everything”. Instruments still need correct setup, suitable samples, and comparison with reliable reference data.
What exam questions usually want
If a question asks for advantages of instrumental methods, it is usually not asking you to describe a full practical method.
It wants clear comparison points.
Strong answers use comparative language:
- “more accurate than chemical tests”
- “more sensitive than flame tests or precipitate tests”
- “faster than carrying out several chemical tests”
- “can detect smaller amounts”
- “less dependent on human judgement”
Weak answers are vague:
- “better”
- “more scientific”
- “uses technology”
- “gives a graph”
Those might be true in a loose way, but they are not precise enough for GCSE marks.
Exam technique
In the exam
- If asked for advantages, write the three key words: accurate, sensitive, rapid.
- Add a comparison: “than chemical tests” or “than observing colour changes or precipitates”.
- Link sensitivity to small amounts or low concentrations.
- Link accuracy to measured data and reduced reliance on human observation.
- Link rapid to quick results or testing many samples.
Self review
Check yourself
- What is the difference between detecting a substance and identifying it?
- Give two reasons why an instrumental method may be preferred over a chemical test.
- Why is sensitivity important when testing for pollutants in water?
