2.3 Plant tissues, organs and systems

EasyMediumHard
12345678910111213141516171819
Question 5
Medium

Water and gas exchange in plants occurs primarily through tiny pores called stomata.

a.

Name the specialized cells that control the opening and closing of the stomata.

[1]
b.

Water moves through a plant in the transpiration stream, whereas sugars are transported via translocation. Describe two differences between the transpiration stream and translocation.

[2]
c.

Which of the following environmental conditions would result in the lowest rate of transpiration in a plant?

  • Cold with low humidity
  • Cold with high humidity
  • Warm with low humidity
  • Warm with high humidity
[1]
d.

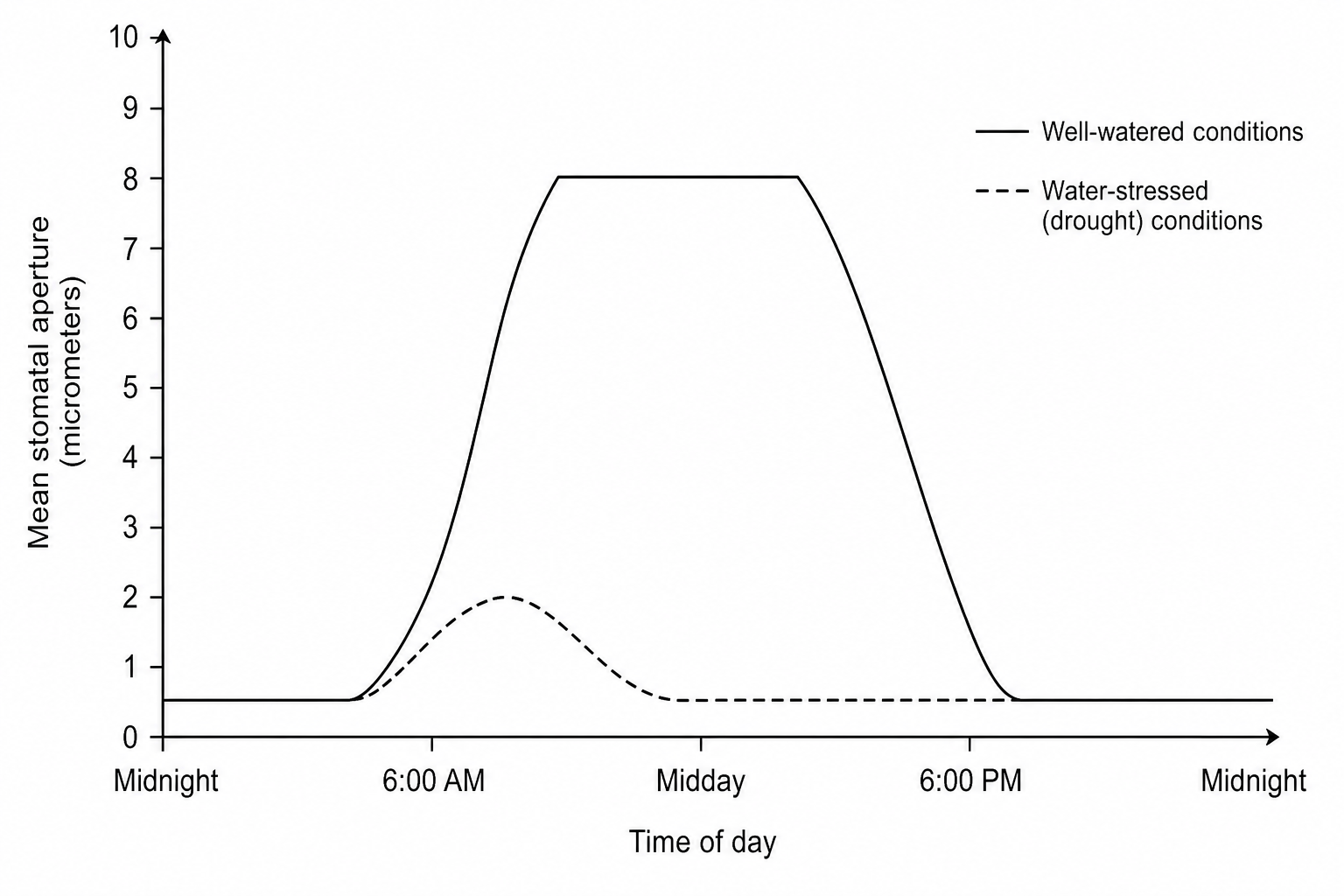

Line graph showing the mean stomatal aperture in micrometers over a 24-hour period starting from midnight, through midday, to the next midnight. The y-axis ranges from 0 to 10 micrometers with grid lines. The x-axis shows the time of day, marked with Midnight, 6:00 AM, Midday, 6:00 PM, and Midnight. Two curves are plotted: 1) A solid line representing 'Well-watered conditions' which starts at 0.5 micrometers at midnight, rises sharply from 6:00 AM to a flat peak of 8.0 micrometers around midday, and then declines back to 0.5 micrometers by 6:00 PM, remaining low until midnight. 2) A dashed line representing 'Water-stressed (drought) conditions' which starts at 0.5 micrometers at midnight, rises slightly to a peak of only 2.0 micrometers at 8:00 AM, then quickly decreases back to 0.5 micrometers by midday and remains at 0.5 micrometers for the rest of the day and night.

Figure 1 shows the changes in the mean stomatal aperture of a plant species over a 24-hour period under two soil moisture conditions: well-watered soil and water-stressed (drought) conditions.

Explain how the stomatal behavior under well-watered conditions is an advantage to the plant.

[3]
e.

Describe how the stomatal behavior under water-stressed conditions differs from well-watered conditions, and explain how this difference helps the plant survive a dry spell.

[3]
