Question 9

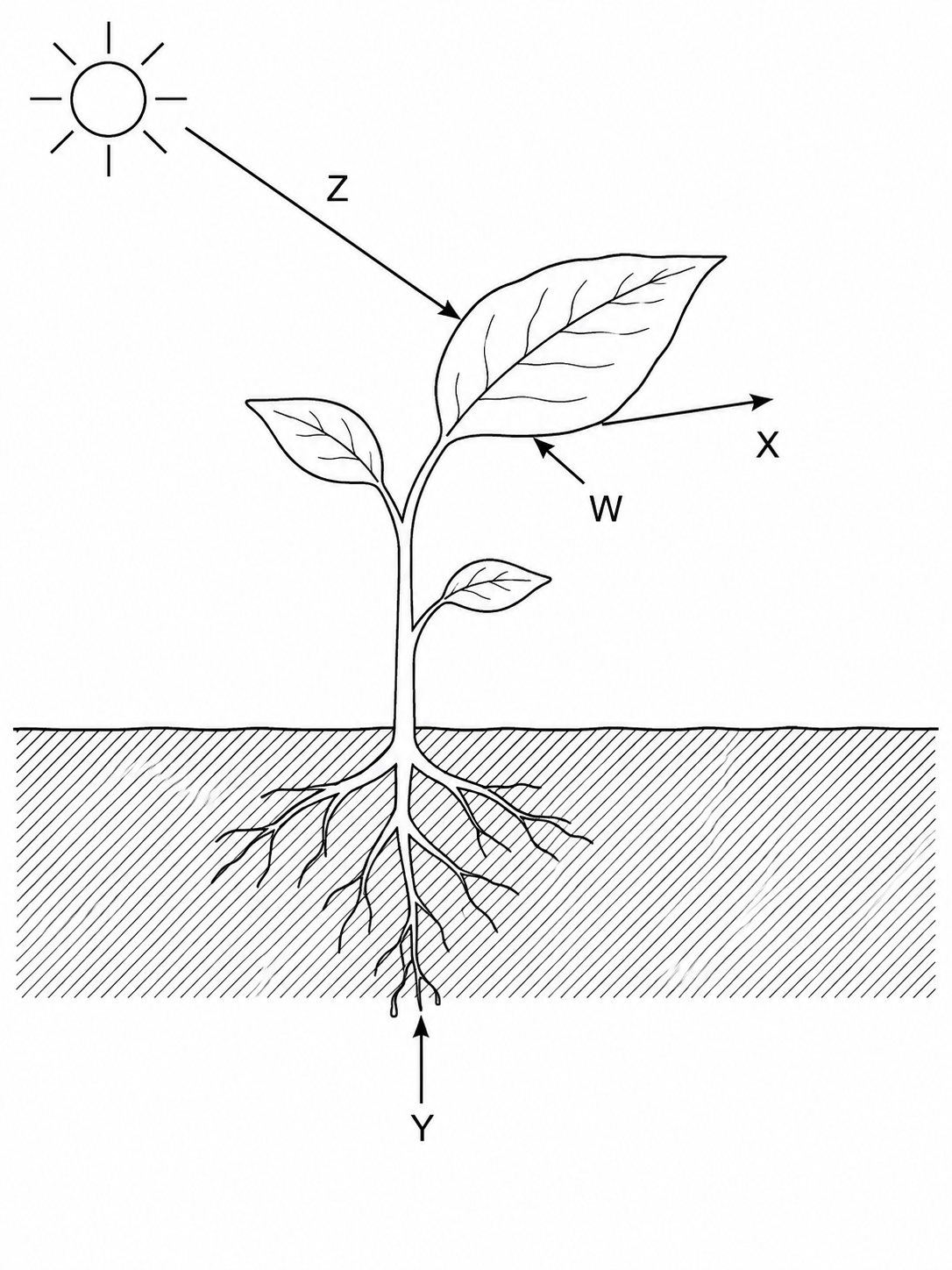

FThe figure shows a plant in the light. The arrows W, X, Y and Z show substances and energy moving into and out of the plant.
Figure: A plant in the light, with four labelled arrows showing substances and energy moving into and out of the plant
a.[1]
Give the letter of the arrow that shows carbon dioxide entering the leaf.
b.[1]
Give the letter of the arrow that shows oxygen leaving the leaf.
c.[2]
Name the substance shown by arrow Y and describe how it reaches the leaves.
d.[2]
Explain what happens to the light shown by arrow Z.
4.1 Photosynthesis Questions
54 exam-style questions on AQA GCSE Biology 4.1 Photosynthesis, covering 4.1.1 Photosynthetic reaction, 4.1.2 Rate of photosynthesis, and 4.1.3 Uses of glucose from photosynthesis. Each one has a worked solution and a mark scheme showing where the marks go.
