Question 22
F

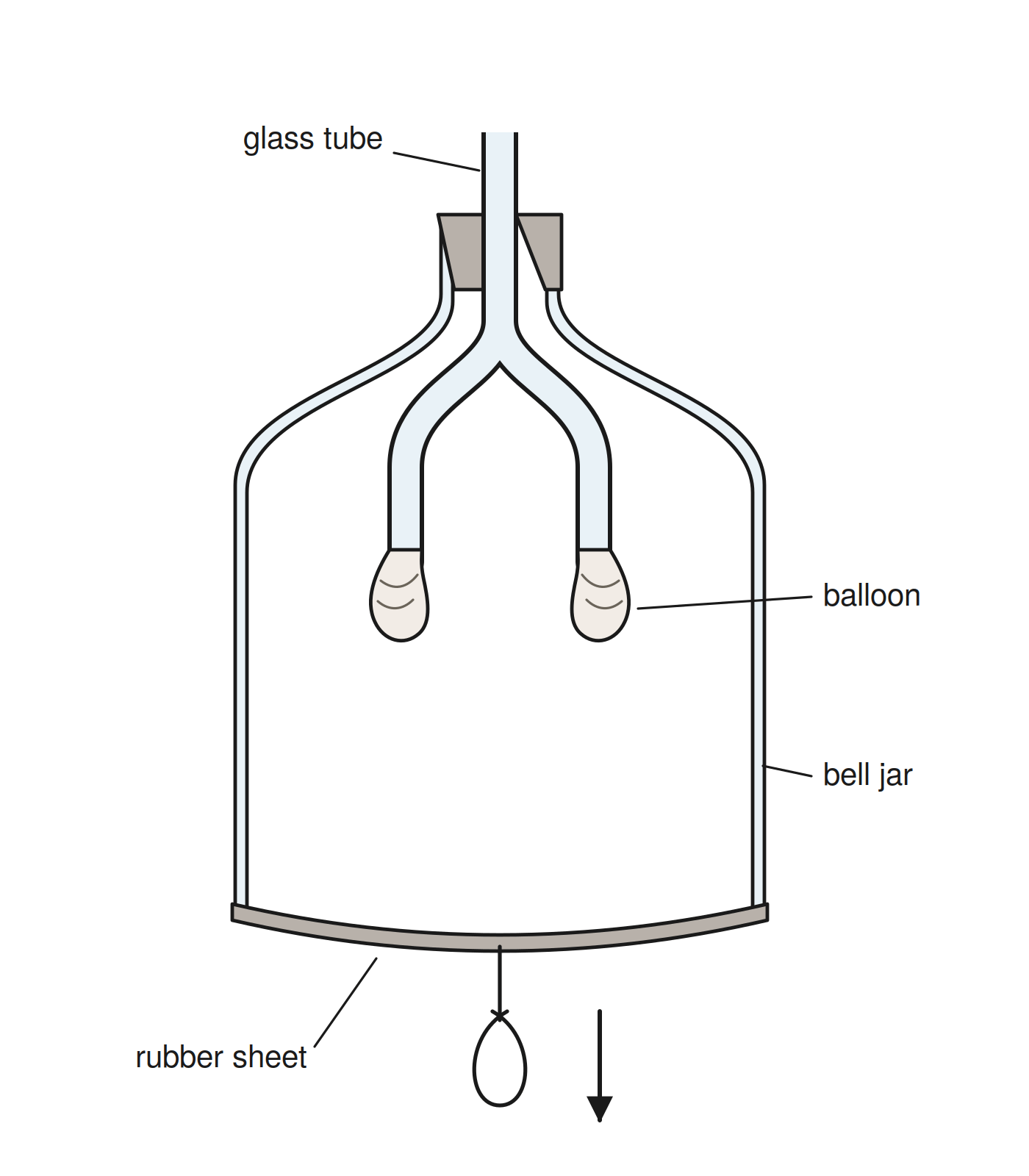

A student uses the model shown in Figure to investigate breathing.

Figure: A model of the human breathing system made from a bell jar, a Y-shaped glass tube and two balloons


a.

Give the part of the human breathing system that is represented by each of the following parts of the model.

  • the glass tube
  • the rubber sheet
[2]
b.

The student pulls the rubber sheet downwards and the balloons inflate.

Explain why the balloons inflate.

[3]
c.

Give one way in which this model is not a good representation of the human breathing system.

[1]
