An investigation was carried out on two protease enzymes, Enzyme A and Enzyme B, to see how pH affects their rate of reaction.

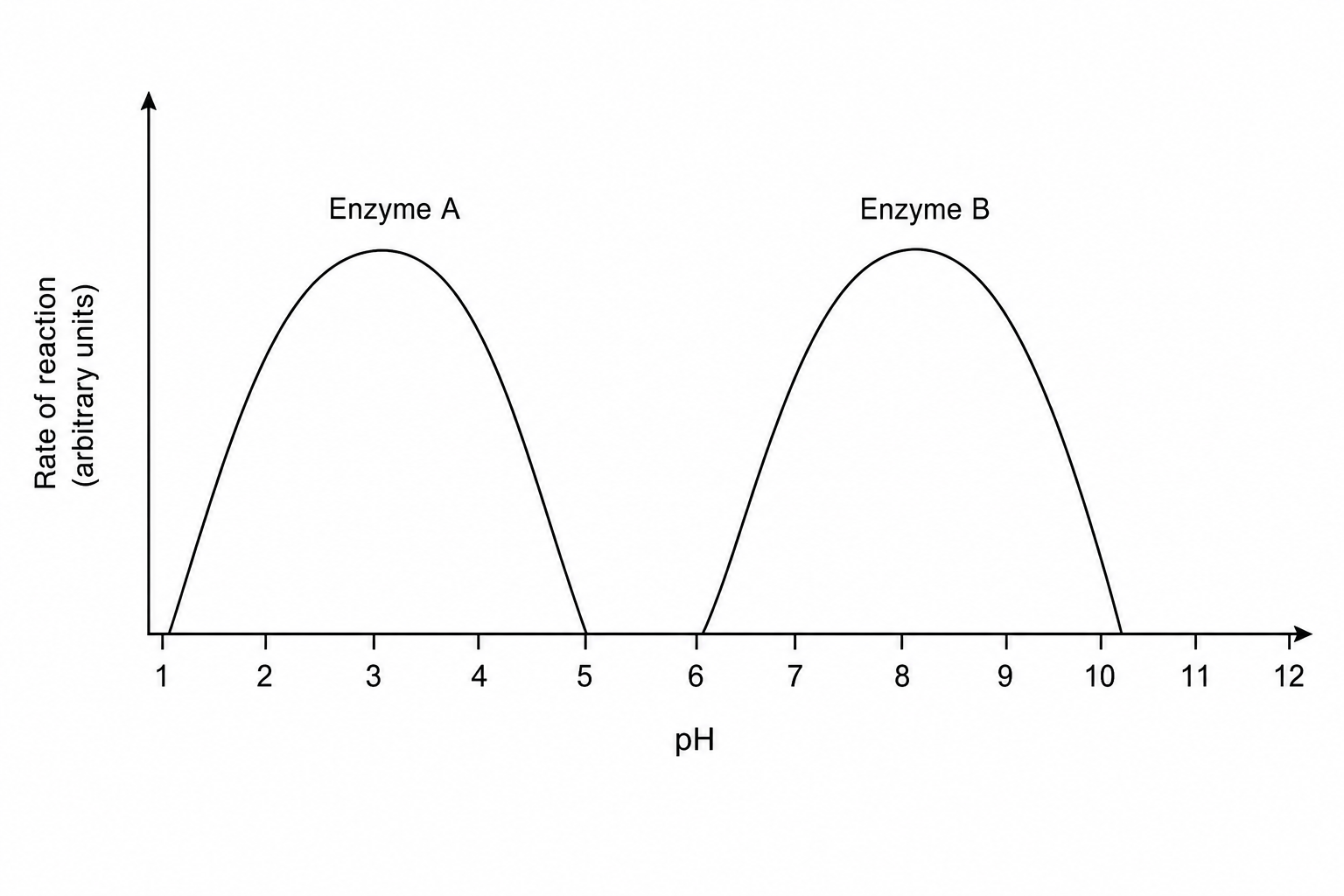

A graph showing the rate of reaction for Enzyme A and Enzyme B at different pH values. The horizontal axis is pH, ranging from 1 to 12. The vertical axis is 'Rate of reaction (arbitrary units)'. Enzyme A has a curve that starts at pH 1, rises to a peak at pH 3, and falls to 0 at pH 5. Enzyme B has a curve that starts at pH 6, rises to a peak at pH 8, and falls to 0 at pH 10.

a.

State the optimum pH for Enzyme B.

[1]
b.

Enzyme A is found in the human stomach. Explain why Enzyme A is suited to working in the stomach.

[2]
c.

Complete the sentences to explain why Enzyme B does not work at pH 11. Choose words from the following list:

  • active site
  • catalyst
  • membrane
  • substrate
  • product

The part of the enzyme that changes shape is the ______.

The change in shape means the enzyme cannot bind to the ______.

[2]
