Question 3

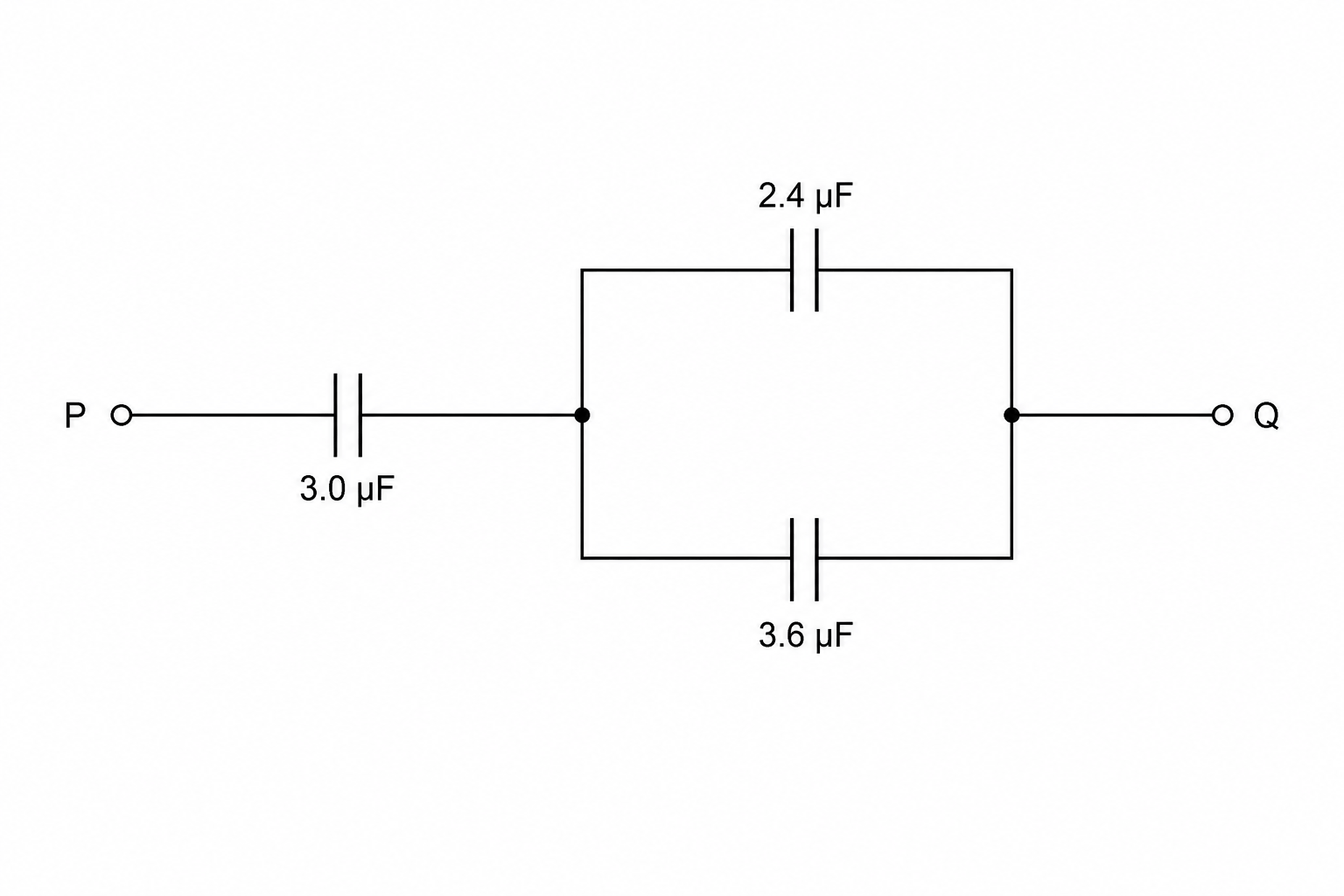

Three capacitors are arranged in a circuit as shown.

Capacitor Circuit

What is the total capacitance of this arrangement between terminals P and Q?

0.97 μF0.97\ \mu\text{F}0.97 μF

2.0 μF2.0\ \mu\text{F}2.0 μF

4.4 μF4.4\ \mu\text{F}4.4 μF

9.0 μF9.0\ \mu\text{F}9.0 μF
