Question 23

This question is about electricity.

a.

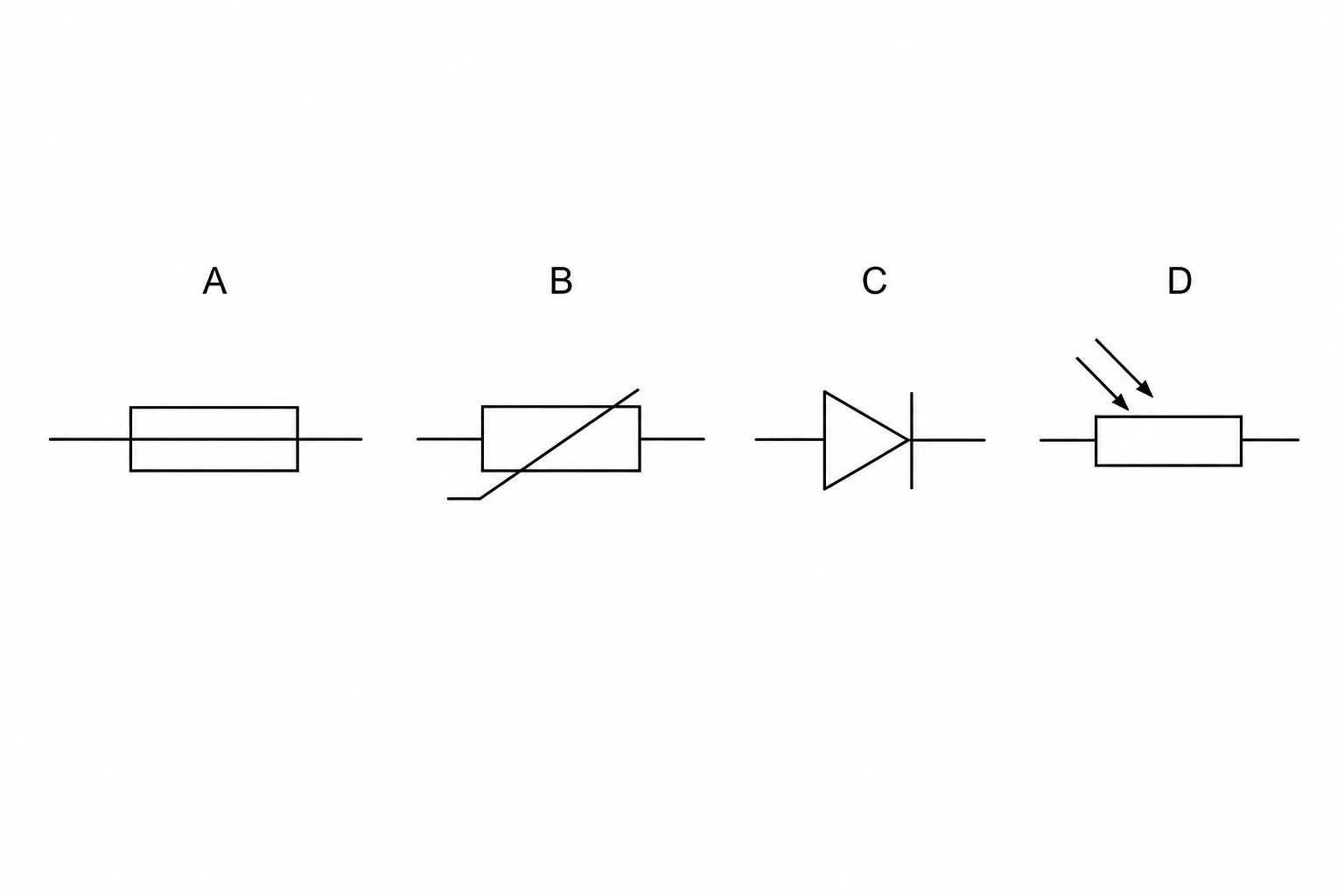

The diagram shows four electrical circuit symbols.

Four electrical circuit symbols labeled A, B, C, and D.

Which symbol represents a fuse?

  • A
  • B
  • C
  • D
[1]
b.

Which symbol represents a semiconductor diode?

  • A
  • B
  • C
  • D
[1]
c.

An electric lawnmower connected to the mains supply has a power rating of 1100 W1100\text{ W}1100 W.

State the equation linking power, current, and voltage.

[1]
d.

Show that the current in the electric lawnmower is approximately 4.8 A4.8\text{ A}4.8 A when connected to a 230 V230\text{ V}230 V mains supply.

[2]
e.

Which of these fuses should be used with the electric lawnmower?

  • A: 3 A3\text{ A}3 A
  • B: 5 A5\text{ A}5 A
  • C: 10 A10\text{ A}10 A
  • D: 13 A13\text{ A}13 A
[1]
f.

Explain how the fuse protects the electric lawnmower when the current in the lawnmower is too high.

[2]
