Question 18

Study Figure 1, an illustration of a newly constructed eco-friendly community centre.

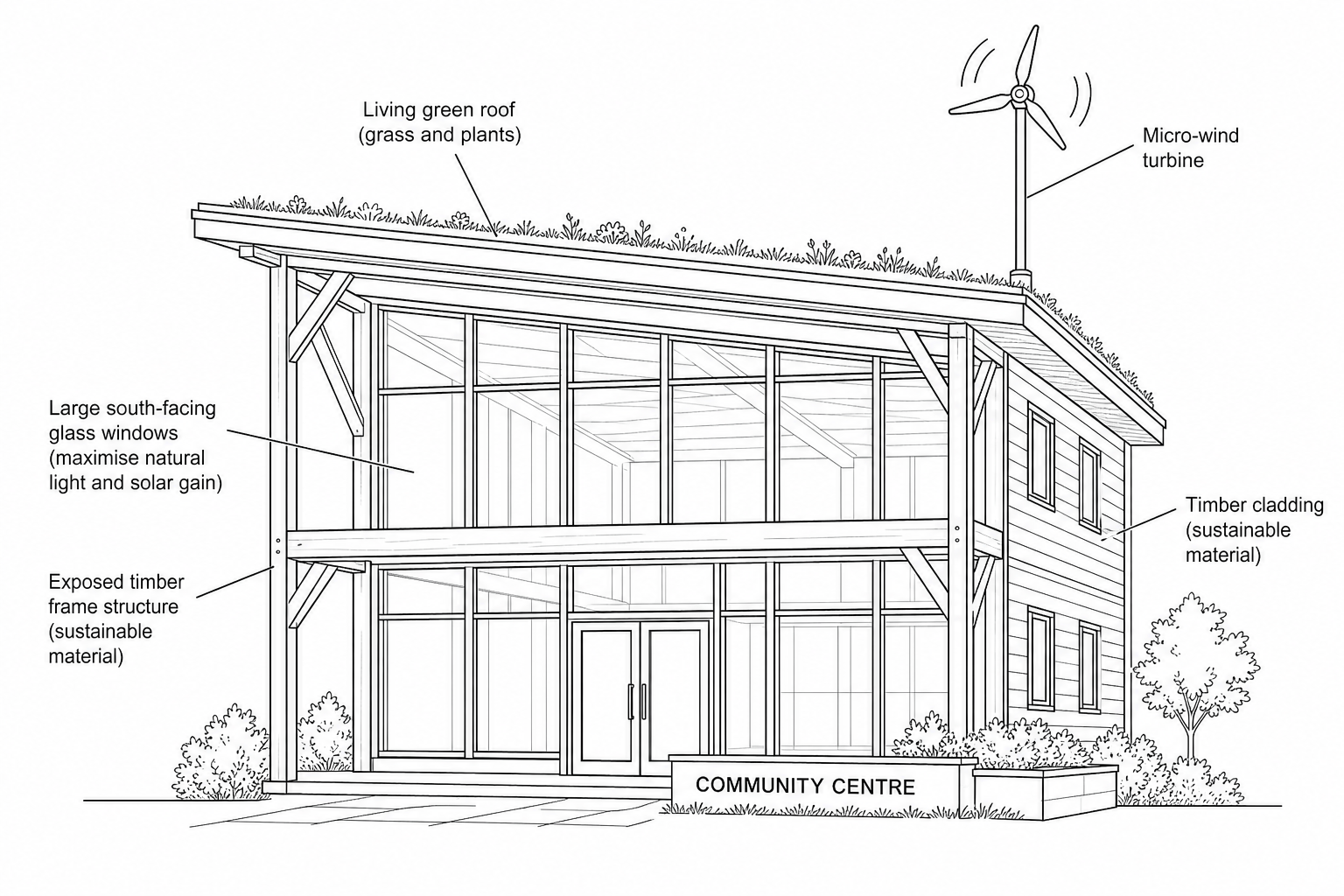

Figure 1: A modern two-story eco-friendly community centre built with timber framing. The building features a living green turf roof, very large south-facing triple-glazed glass windows covering most of the front facade, and a small micro-wind turbine spinning on a pole attached to the roofline.

Suggest one way the community building shown in Figure 1 has been adapted to manage its energy use.

[2]
