A student investigates the heating of a metal cylinder, Y, using a constant-power electrical heater.

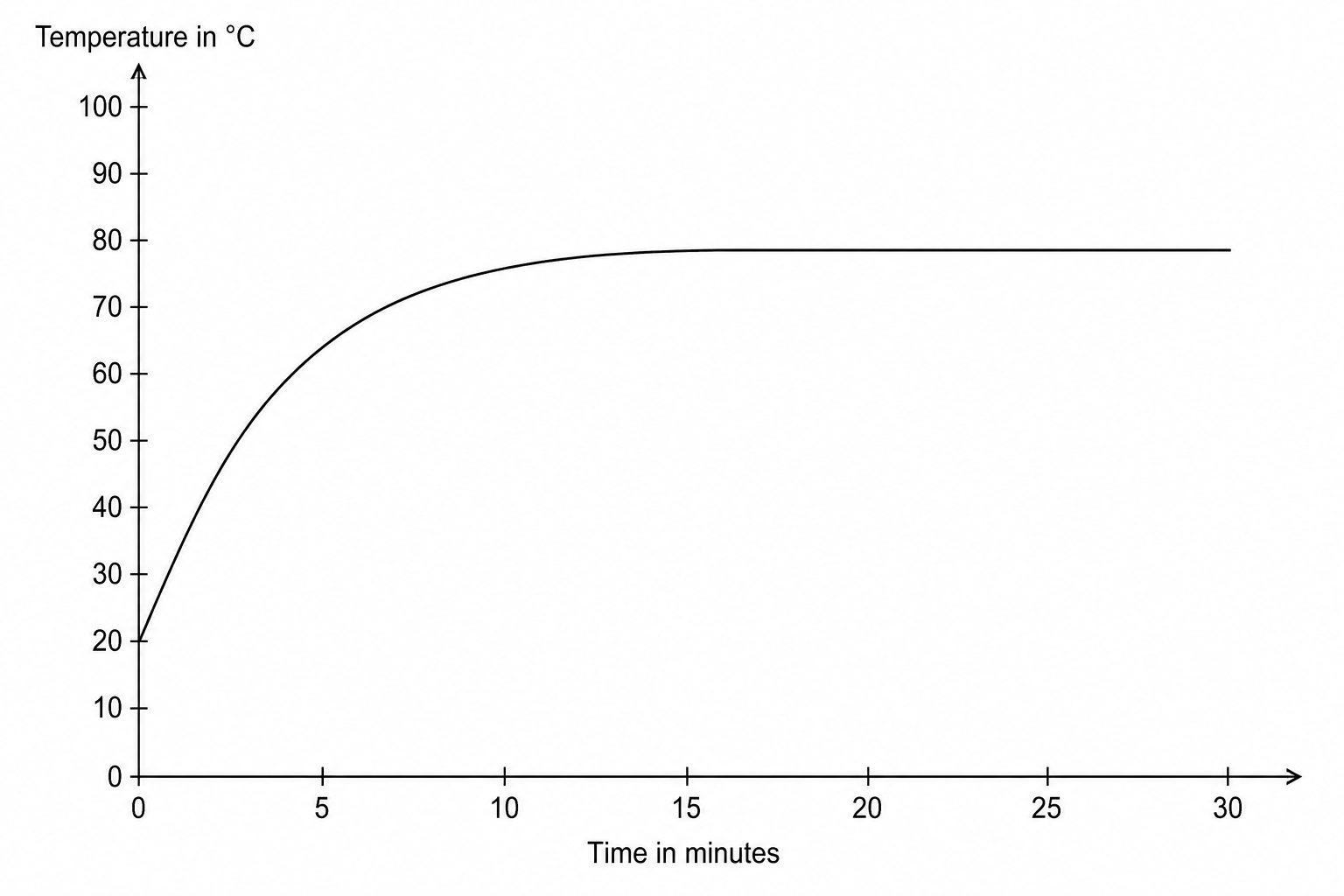

A graph showing how the temperature of metal cylinder Y changes over time. The x-axis is labeled 'Time in minutes' and ranges from 0 to 30. The y-axis is labeled 'Temperature in °C' and ranges from 0 to 100. The curve starts at 20 °C, rises steeply at first, then the curve's gradient gradually decreases until it becomes a completely horizontal line at 78 °C.

Explain why the temperature of cylinder Y eventually reaches a constant value, even though the heater remains switched on.

[4]
