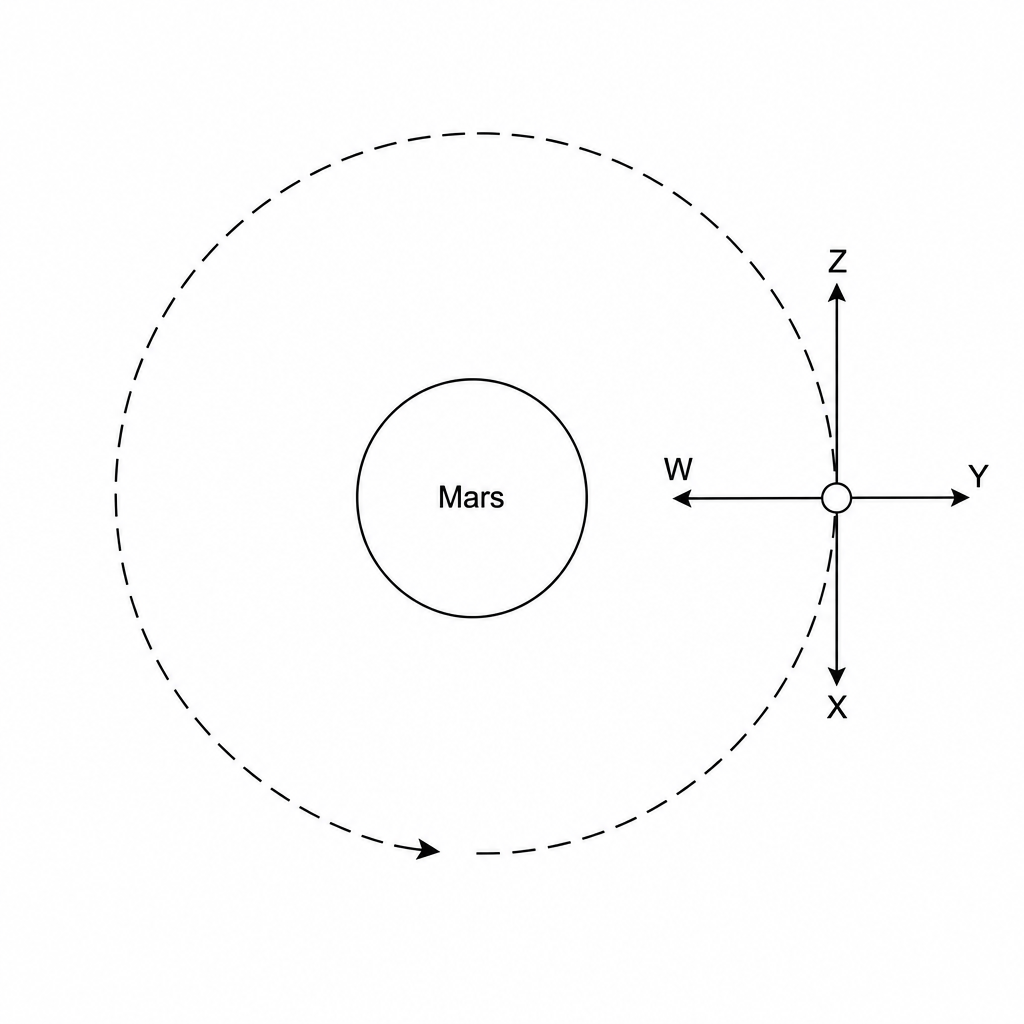

The diagram below shows a spacecraft in a stable, clockwise circular orbit around Mars.

Spacecraft orbiting Mars

Which option correctly identifies the arrows representing the instantaneous velocity vector ( $v⃗\vec{v}$ ) of the spacecraft and the gravitational force ( $F⃗g\vec{F}_g$ ) acting on it?

$v⃗\vec{v}$ is shown by Arrow X; $F⃗g\vec{F}_g$ is shown by Arrow W

$v⃗\vec{v}$ is shown by Arrow Z; $F⃗g\vec{F}_g$ is shown by Arrow W

$v⃗\vec{v}$ is shown by Arrow X; $F⃗g\vec{F}_g$ is shown by Arrow Y

$v⃗\vec{v}$ is shown by Arrow W; $F⃗g\vec{F}_g$ is shown by Arrow X
