The motor effect

EasyMedium
123456789101112131415161718
Question 5
Easy

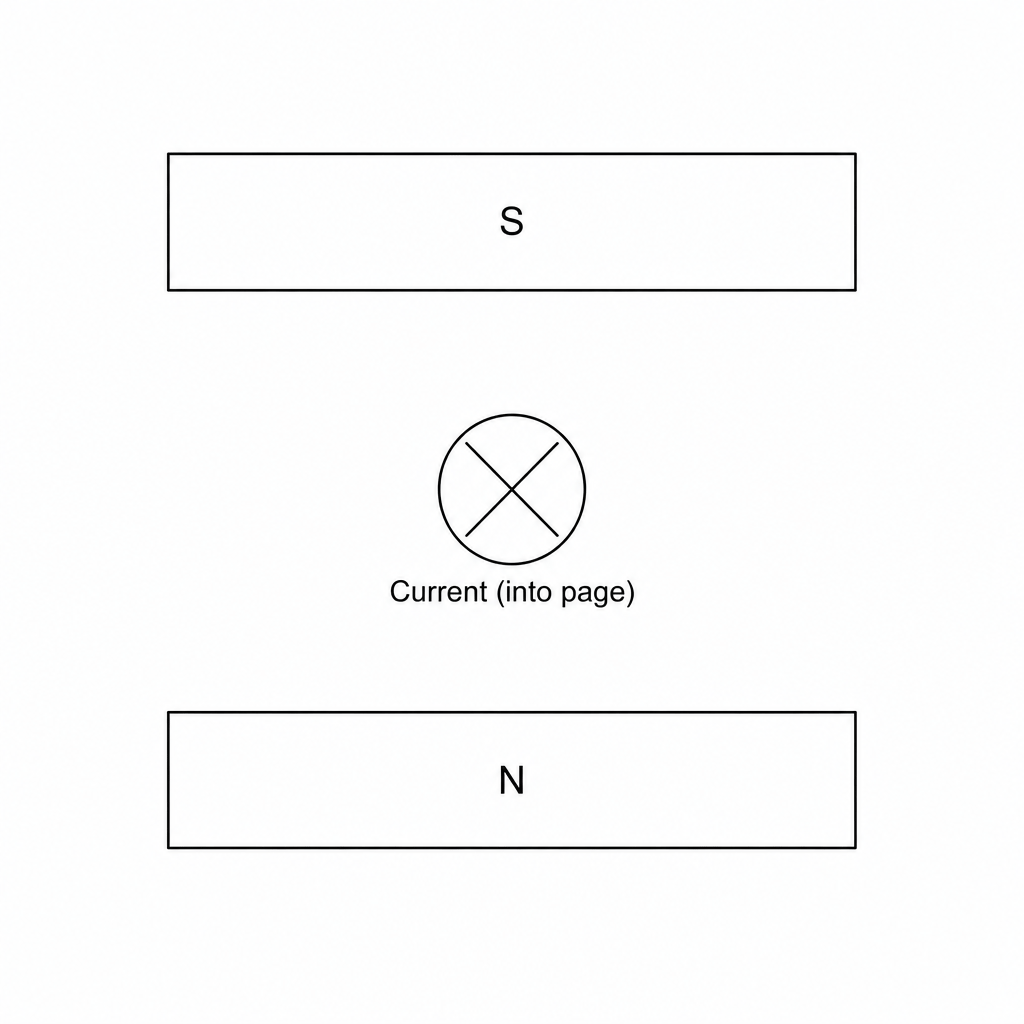

Figure 1 shows a cross-section of a horizontal wire carrying an electric current directed vertically into the page. The wire is situated in the uniform magnetic field between two flat magnetic poles, with the North pole (NNN) located directly below the wire and the South pole (SSS) located directly above the wire.

Figure 1

Both the wire and the magnet experience a force when there is a current in the wire.

a.

State the direction of the force on the wire.

[1]
b.

State the direction of the force on the magnet.

[1]
