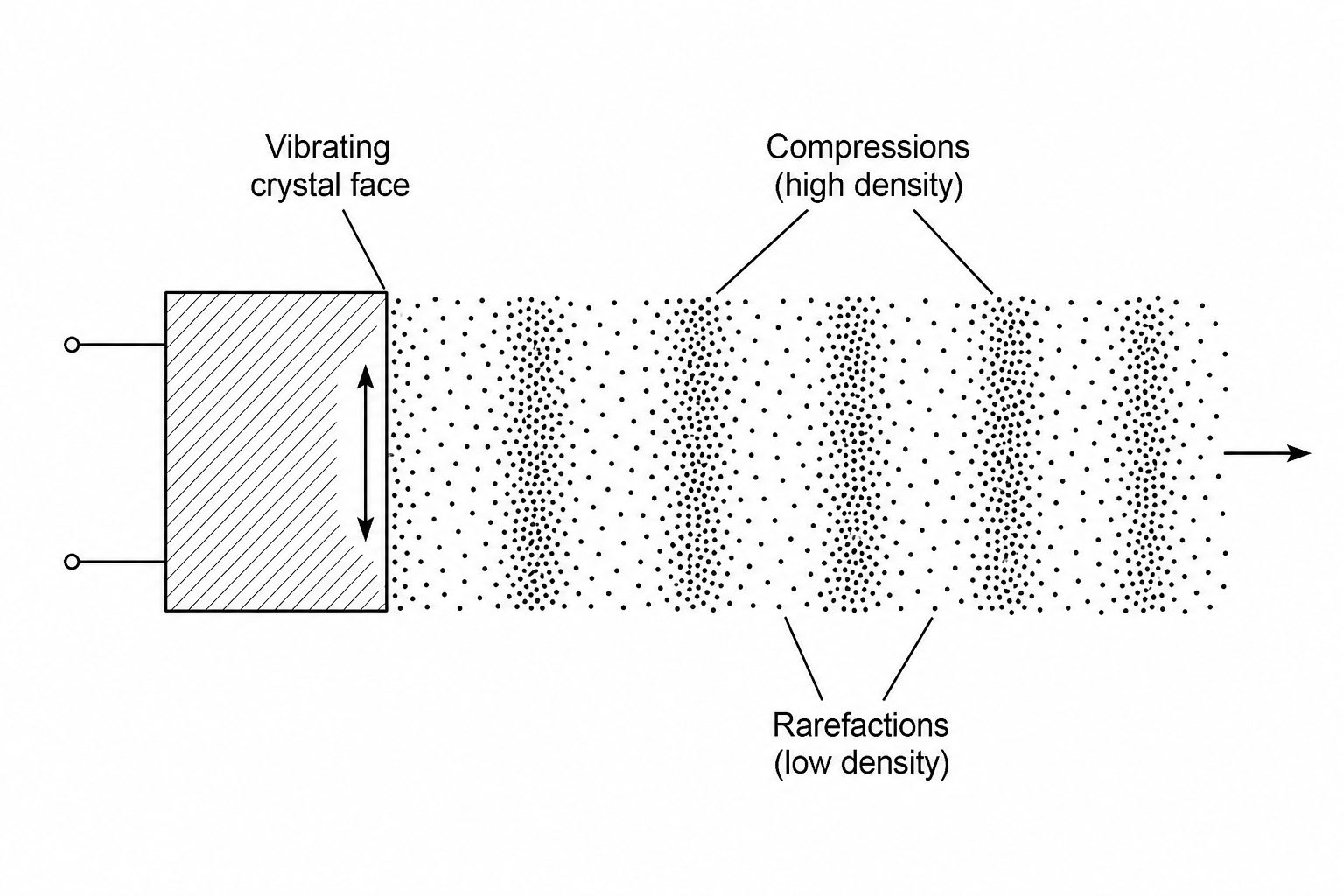

Figure 1 shows a simplified diagram of a piezoelectric transducer crystal used in a medical ultrasound scanner.

Figure 1: Cross-section of a vibrating piezoelectric crystal generating ultrasound waves in a coupling gel.

When an alternating electrical voltage is applied, the face of the crystal vibrates at high frequency as indicated by the arrows.

Describe how the vibrating face of the transducer crystal causes an ultrasound wave to travel through the adjacent coupling gel.

[2]

Sound, ultrasound and infrasound Questions

Practise Edexcel GCSE Physics Sound, ultrasound and infrasound with exam-style questions for Foundation and Higher tier. 50 questions, matched to the Edexcel GCSE Physics (1PH0) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
