Question 44
Easy

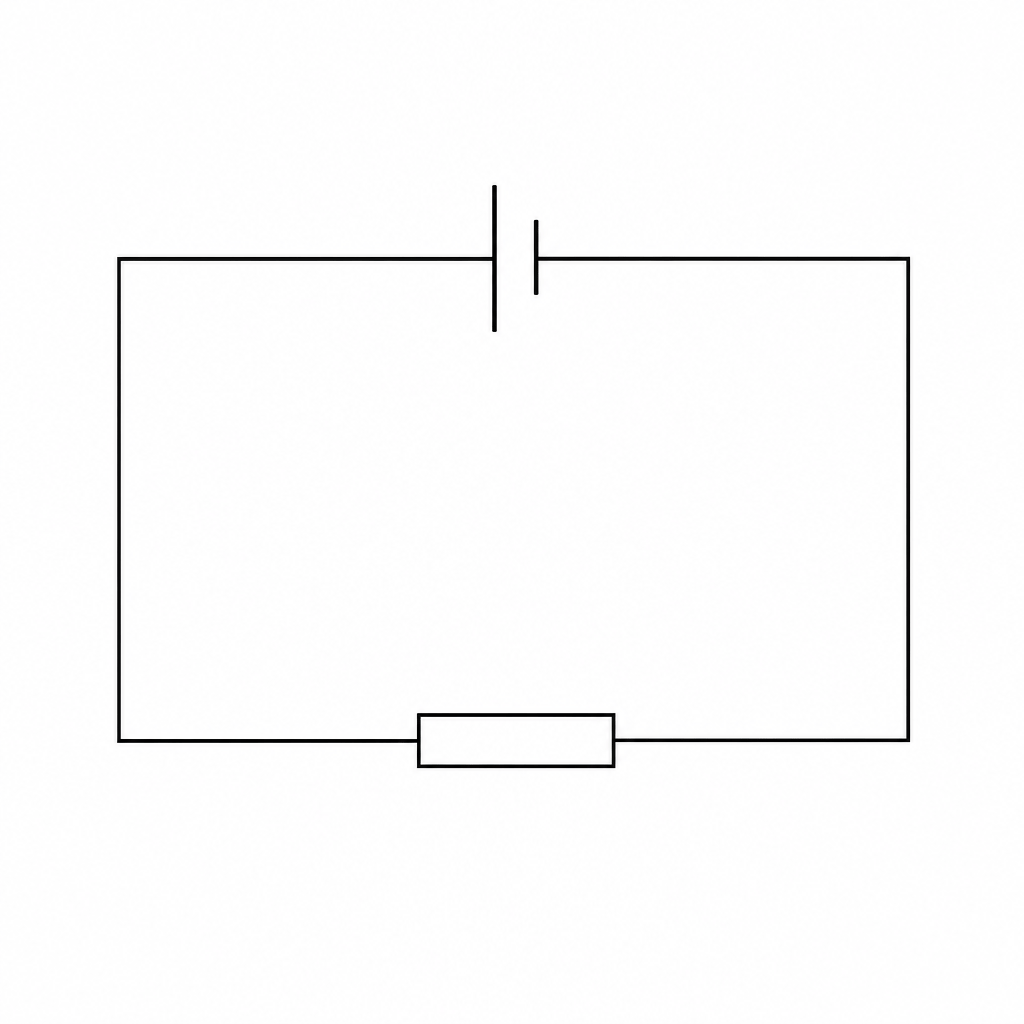

Figure 1 shows a resistor connected to a d.c. power supply.

Figure 1: A circuit diagram displaying a d.c. power supply connected in series with a single fixed resistor.

The power supply provides a potential difference of 6.0 V.

The current in the resistor is 0.15 A.

Calculate the resistance of the resistor.

Use the equation:

R=VI R = \frac{V}{I} R=IV​
[1]
