Question 2
Easy

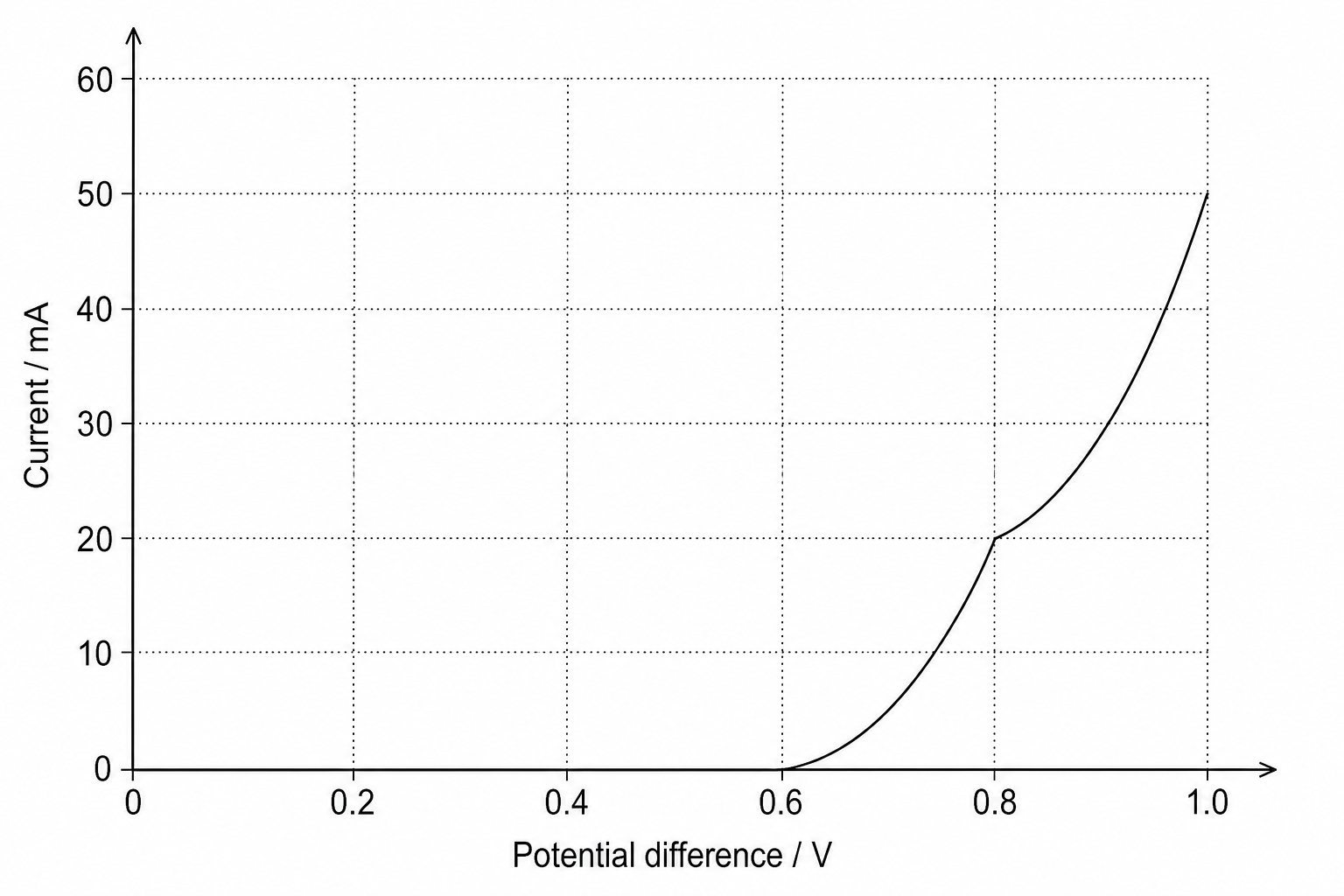

A student investigates how current varies with potential difference for a semiconductor diode. Their results are shown in the graph below. Figure 1: A graph showing current in mA on the vertical y-axis and potential difference in V on the horizontal x-axis. The y-axis ranges from 0 to 60 mA. The x-axis ranges from 0 to 1.0 V. The curve stays at 0 mA from 0 V to 0.6 V, and then curves sharply upwards from 0.6 V, reaching 20 mA at 0.8 V and 50 mA at 1.0 V. Describe how the current changes as the potential difference increases from 0 V to 1.0 V.

[2]
