Question 9
Easy

An engineer is testing a 12 V DC miniature solenoid actuator, represented by the rectangular block S S\,S in the incomplete circuit diagram below.

To determine the operating resistance of the actuator, the engineer must measure:

  • the electric current passing through the actuator,
  • the potential difference across the actuator.

Complete the circuit diagram by adding the correct circuit symbols for an ammeter and a voltmeter connected in the correct positions to allow both measurements to be taken simultaneously.

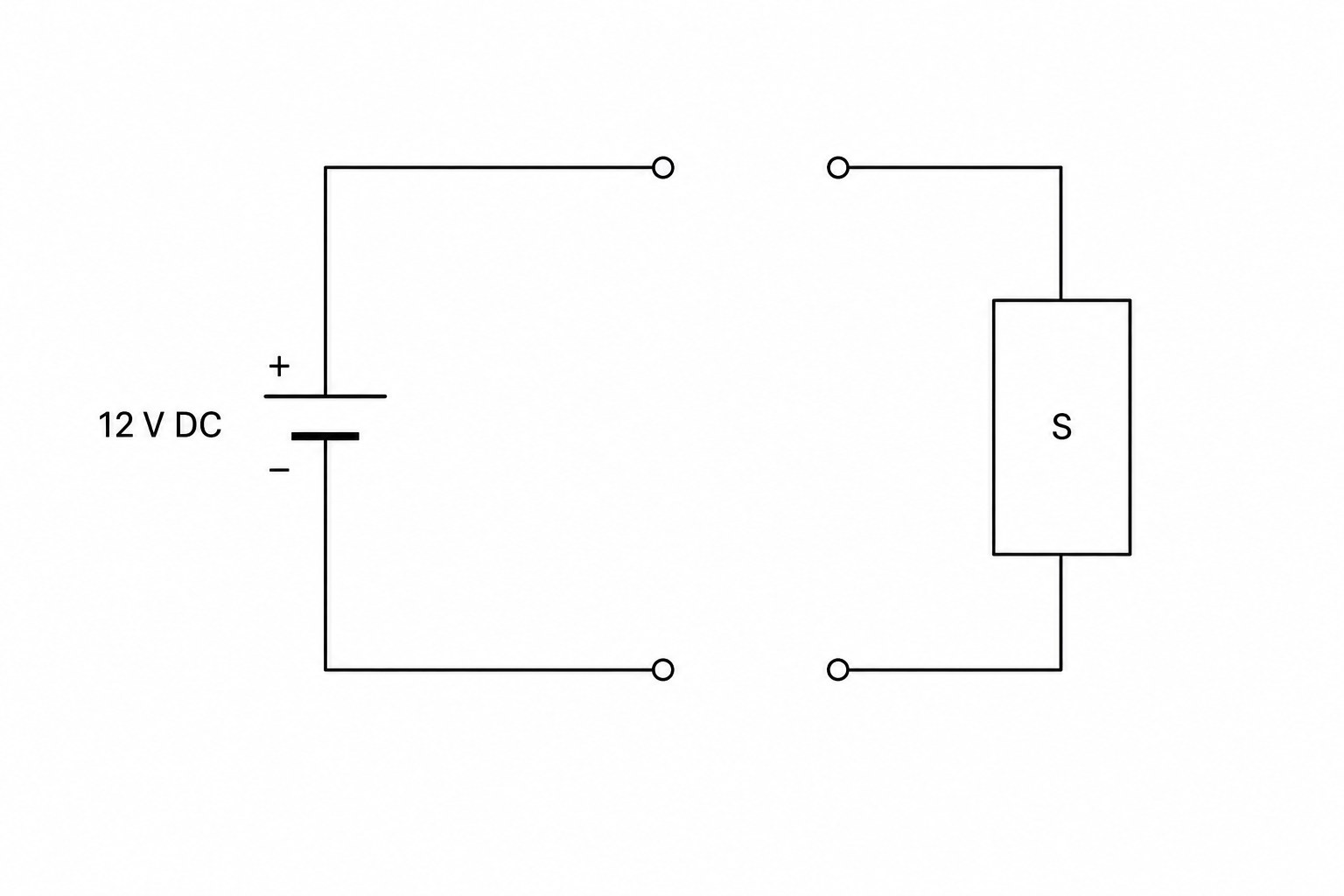

Incomplete circuit diagram showing a 12 V DC power supply on the left and a solenoid S on the right, with gaps in the connecting wires.

[2]
