6.5.1 Uses of radioactivity

Matching radiation to the job

1. Every use of a radioactive source is chosen by matching two properties of the radiation to the job: how penetrating it is and how strongly ionising it is.
2. Alpha radiation ($\alpha$) is a helium nucleus, ${}_2^{4}He$, so it is the most strongly ionising type and the least penetrating; it travels a few centimetres in air and is absorbed by a sheet of paper.
3. Beta radiation (${\beta }^{-}$) is a fast-moving electron, ${}_{-1}^{0}e$, so it is moderately ionising and moderately penetrating; it passes through paper but is absorbed by about $3mm$ of aluminium.
4. Gamma radiation ($\gamma$) is a high-energy electromagnetic wave, so it is the least ionising and by far the most penetrating; it is only reduced, never fully stopped, by thick lead or concrete.
5. Penetration decides whether the radiation can reach the thing it must affect or the detector that must measure it.
6. Ionising power decides how much change the radiation makes when it arrives, whether that change is ionising air, damaging the DNA of a microorganism or damaging a tumour cell.
7. The activity of the source, measured in becquerel ($Bq$), is chosen alongside the type: a smoke alarm needs a tiny activity, whereas a sterilisation plant needs a very large one.

Smoke alarms

1. An ionisation smoke alarm contains a very small alpha source, usually americium-241, sealed inside an ionisation chamber.
2. Two metal electrodes in the chamber are connected across a potential difference, with a gap of air between them.
3. Alpha particles ionise the air in the gap, knocking electrons off air molecules to create positive ions and free electrons.
4. These charged particles are attracted to the electrodes, so a small steady current flows across the gap even though air is normally an insulator.
5. When smoke enters the chamber, smoke particles absorb alpha particles before they can ionise much of the air.
6. Fewer ions are produced each second, so fewer charge carriers cross the gap and the current falls.
7. An electronic circuit monitors the current and sounds the alarm as soon as it drops below a set value.
8. Alpha is the right choice because it is strongly ionising, so a tiny activity still produces enough ions to give a measurable current, and because its range in air is only a few centimetres, so the radiation cannot escape the casing into the room.
9. Gamma would fail on both counts: it is weakly ionising, it would pass through the smoke without being absorbed, and it would escape from the alarm.

Irradiating food

1. Food travels on a conveyor into a heavily shielded chamber containing a gamma source, typically cobalt-60.
2. Gamma rays pass through the packaging and through the full depth of the food, ionising molecules inside any bacteria, fungi, moulds and insect eggs present.
3. Ionisation damages the DNA of those organisms, so they are killed or can no longer reproduce.
4. With far fewer microorganisms alive, the food spoils more slowly and its shelf life increases, which cuts waste and lowers the risk of food poisoning.
5. Gamma is essential because alpha and beta would be absorbed by the packaging and would never reach the food inside.
6. The food is exposed to radiation but no radioactive material is put into it, so it does not become radioactive and is safe to eat.
7. Irradiation can slightly reduce the vitamin content of some foods, and irradiated food must be labelled so shoppers can still choose whether to buy it.

Sterilising equipment

1. Syringes, scalpels, dressings and surgical instruments are sealed inside their packaging first and then passed through a gamma irradiation plant.
2. Gamma rays penetrate the packaging and the instrument, ionising molecules inside any microorganisms on the surfaces and killing them.
3. Because the item is sealed before it is irradiated, nothing can land on it afterwards, so it stays sterile until the pack is opened.
4. Gamma sterilises without heating the object, so plastic syringes and delicate instruments are not melted or damaged, which is the main advantage over steam sterilisation in an autoclave.
5. The source is kept in a thick concrete cell and loading is done remotely, because the activity needed to sterilise in a reasonable time is very large.

Industrial tracers

1. To find a leak in an underground pipe, a gamma-emitting tracer is added to the liquid flowing through it.
2. A Geiger-Muller tube connected to a counter is moved along the ground above the pipe and the count rate is recorded at each position.
3. Along an intact section the count rate stays roughly steady, because the tracer inside the pipe is the same distance from the detector at every point.
4. At a leak, tracer escapes into the soil and collects there, so the detector records a sharp rise in count rate at that position.
5. The engineers then dig at that one position instead of excavating the whole length of the pipe.
6. Gamma is the only sensible choice because the radiation must pass through the pipe wall and the soil to reach a detector at the surface, and alpha and beta would both be absorbed long before that.
7. The tracer is chosen with a half-life long enough to complete the survey but short enough that its activity soon falls to a safe level.
8. The same method tracks the movement of sewage and silt at sea and finds blockages inside industrial pipework.

Thickness gauging

1. In a paper or aluminium foil mill a beta source such as strontium-90 sits above the moving sheet and a detector sits directly below it.
2. Some beta particles are absorbed by the sheet and the rest reach the detector, so the count rate depends on the thickness of material between them.
3. If the sheet becomes too thick, more beta particles are absorbed and the detector records a lower count rate.
4. If the sheet becomes too thin, fewer beta particles are absorbed and the detector records a higher count rate.
5. A control system compares the count rate with the target value and moves the rollers closer together or further apart until the reading returns to that value.
6. Beta is used because it is partly absorbed, which is exactly what makes the count rate sensitive to small changes in thickness.
7. Alpha would be absorbed completely, so the detector would read only background whatever the thickness, and gamma would pass almost entirely through, so the reading would barely change.
8. A source with a long half-life is chosen so that the activity, and therefore the target count rate, does not drift during the life of the machine.
9. Thicker or denser products such as rolled steel use a gamma source instead, because beta would be completely absorbed by steel.

Finding and treating cancer

1. A gamma-emitting tracer can be swallowed or injected, and it collects in the organ the doctor wants to examine.
2. Gamma is used because it is penetrating enough to leave the body and reach a detector outside it, whereas alpha and beta would be absorbed by the surrounding tissue.
3. A tumour is treated by aiming high-energy gamma radiation at it, so that ionisation damages the DNA of the tumour cells and stops them dividing.
4. Cancer cells divide more often than most healthy cells, which is why they are more strongly affected by the same dose.
5. Healthy cells in the path of the beam are damaged as well, which causes side effects, so the beam must be aimed accurately at the tumour and no wider.

6.5.2 Dangers of ionising radiation and precautions

How radiation damages cells

1. Alpha, beta and gamma radiation are all ionising, which means each one carries enough energy to knock an electron out of an atom it passes.
2. The atom left behind has lost a negative charge, so it becomes a positive ion.
3. When this happens inside a living cell, the atom that is ionised is part of a molecule, so ionisation breaks or alters that molecule.
4. Cells are mostly water, so most ionisation happens in water molecules and produces highly reactive fragments that then attack proteins, cell membranes and DNA nearby.
5. A single ionisation is harmless because a cell can repair it, so the danger comes from the very large number of ionisations produced along the path of the radiation.
6. Alpha radiation produces the most ionisations per centimetre of its path, so it does the most damage in the small volume it reaches, while gamma radiation produces far fewer ionisations but spreads them right through the body.
7. From a source outside the body, beta and gamma radiation are the greater hazard, because alpha radiation is absorbed by the dead outer layer of skin and never reaches living tissue.

Tissue damage and mutation

1. There are two separate outcomes to learn: the cell is killed, or the cell survives with damaged DNA.
2. If enough molecules inside one cell are ionised, the cell can no longer function and it dies.
3. When large numbers of cells in the same place are killed, the organ or the skin stops working properly, and this is called tissue damage.
4. A very large exposure in a short time causes radiation sickness, with reddened skin like a burn, hair loss, vomiting and damage to the bone marrow that makes blood cells.
5. If instead the cell survives but its DNA has been altered, the instructions the cell copies when it divides are no longer the original ones, and this change is a mutation.
6. Most mutations have no noticeable effect, because they fall in a part of the DNA that the cell does not use or because the cell repairs them.
7. Some mutations affect the genes that control how often a cell divides, so the cell begins to divide uncontrollably.
8. The mass of cells that builds up is a tumour, and a tumour that spreads and invades other tissue is cancer.
9. A mutation in a sex cell can be passed on to a child, whereas a mutation in any other cell affects only the person exposed.
10. Tissues whose cells divide most often are the most sensitive, which is why bone marrow, the lining of the gut and a developing foetus are damaged by exposures that leave muscle or bone unharmed.

Why exposure changes risk

1. Radioactive decay is a random process, and so is the path each emitted particle takes through the body, so nobody can say which cell will be hit or which mutation will occur.
2. This is why exposure is described using risk, the chance that harm occurs, rather than as a certain outcome.
3. A greater exposure means more ionising particles pass through the body, which means more ionisations, which means a greater chance that a mutation happens in a gene that matters.
4. So the risk of cancer increases with exposure, but a person who is exposed will not necessarily develop cancer, and a person who is not exposed still can.
5. Everyone is exposed to background radiation all the time, so precautions are about keeping any extra exposure as small as is practical rather than reducing it to zero.

Precautions when using sources

1. Every precaution works by cutting the number of ionising particles that reach living tissue, and there are three ways of doing it.
2. Reduce the time spent near the source, because the total exposure is the rate at which radiation arrives multiplied by how long you stand there.
3. Increase the distance from the source, because the radiation spreads out in all directions, so the further away you stand the smaller the fraction of it that passes through you.
4. Use shielding between the source and the person, choosing a material that absorbs that type of radiation: a few millimetres of aluminium for beta, and thick lead or concrete for gamma.
5. In practice these three principles become a set of working rules that a technician or a teacher follows every time a source is used.
   1. Lift the source with long handling tongs rather than fingers, which puts the whole length of the tongs between the source and the hand.
   2. Point the open face of the source away from people and never look directly into it.
   3. Take the source out only for the reading itself and return it to its lead-lined, clearly labelled container immediately afterwards.
   4. Store that container in a locked cupboard and keep a record of when each source is signed out.
   5. Keep everyone else at the far side of the room while the source is out of its container.
   6. Never eat, drink or apply cosmetics in the area, and wash hands afterwards, so that no radioactive material can be swallowed.
6. Industrial sources that cannot be shielded by hand are handled by remote manipulators behind thick concrete walls, which is the same three principles applied on a larger scale.

6.5.3 Half-life and radiation dangers

Linking half-life to activity

1. The half-life of an isotope tells you what fraction of the undecayed nuclei in a sample decay in a given time, and it is fixed for that isotope.
2. Take two samples containing the same number of undecayed nuclei: the one with the shorter half-life has a larger fraction of its nuclei decaying each second, so it has the greater activity.
3. A greater activity means more ionising particles are emitted each second, so more of them pass through anyone standing nearby and more ionisation happens in their tissue.
4. Activity halves every half-life, so after $n$ half-lives the activity is $A=A_0{\left(\frac{1}{2}\right)}^n$, where $A_0$ is the starting activity.
5. The number of half-lives that have passed in a time $t$ is $n=\frac{t}{T_{1/2}}$, where $T_{1/2}$ is the half-life.
6. Half-life therefore controls two different things at once: how intense the hazard is at the moment, and how long the hazard lasts.

Sources with a short half-life

1. A short half-life source emits a large number of ionising particles each second while it is fresh, so anyone close to it receives a large exposure in a short time.
2. The immediate hazard is therefore high, and a few minutes of careless handling can matter more than a whole day near a weaker source.
3. The activity then falls quickly, because each half-life removes half of the nuclei that are left.
4. This means the hazard has a short lifetime, so the material can simply be locked away and left to decay until its activity is close to background.
5. A short half-life is an advantage wherever the source has to stop emitting soon after it has done its job, and it is a disadvantage wherever a steady output is needed for years.
6. It also means the source has to be made shortly before it is used, because a great deal of it decays away while it is being transported and stored.

Sources with a long half-life

1. A long half-life source has only a small fraction of its nuclei decaying each second, so for a given number of nuclei its activity, and the immediate hazard, is lower.
2. That lower activity is spread out over a very long time, so the material is still emitting ionising radiation decades, centuries or thousands of years later.
3. The hazard cannot be waited out, so it has to be contained instead.
4. If long half-life material escapes into soil, water or the food chain, that land or water stays hazardous long after the accident that released it.
5. The responsibility for that containment also outlasts the people who created the material, so records and warnings have to be kept for future generations.
6. A long half-life is an advantage where a source must give an almost unchanging output for years, such as an industrial gauge that would otherwise need constant recalibration.

Matching precautions to half-life

1. Because half-life sets both the intensity and the duration of the hazard, the precautions that matter most are different for the two kinds of source.
2. For a short half-life source, the priority is protecting people during the few hours or days when the activity is high.
   1. Plan the work in advance so the source is out of its container for the shortest possible time.
   2. Handle it remotely with tongs and keep the shielding in place while it is fresh.
   3. Store it in a shielded container and measure its activity before deciding it is safe to dispose of as ordinary waste.
3. For a long half-life source, the priority is stopping the material escaping at any point over a very long period.
   1. Seal it inside a corrosion-resistant container that will not fail as it ages.
   2. Label the container clearly and keep written records of what it holds and where it is.
   3. Store it in a secure site with restricted access, often deep underground in stable rock.
   4. Monitor the site and the groundwater around it for as long as the material remains active.
4. Shielding is chosen by the type of radiation rather than by the half-life, so a long-lived gamma emitter still needs lead or concrete and a short-lived beta emitter still needs only a few millimetres of aluminium.

6.5.4 Safety precautions for radiation exposure

Measuring exposure as dose

1. Dose is measured in sievert ($Sv$), and because a sievert is a very large dose, medical exposures are usually quoted in millisievert ($mSv$) or microsievert ($\mu Sv$).
2. Two things fix the dose: how much energy the tissue absorbs from the radiation, and how damaging that particular type of radiation is for the same absorbed energy.
3. Alpha radiation is counted as far more damaging than gamma radiation for the same absorbed energy, because it produces its ionisations packed closely together in a small volume of tissue.
4. The dose a person receives builds up with time, so $dose=dose\; rate\times time$.
5. Doses add up over a lifetime, which is why records of past scans are kept and why a worker's exposure is totalled over months and years rather than judged one shift at a time.
6. For scale, the average person in the United Kingdom receives roughly $2.7mSv$ each year from background radiation, a chest X-ray adds about $0.02mSv$, and a whole-body computed tomography scan can add several $mSv$.
7. Because the harm is a matter of chance, there is no dose small enough to carry no risk at all, so the working rule everywhere is to keep every dose as low as is reasonably possible while still doing the job properly.

Justifying the exposure

1. Before any patient is exposed, a doctor has to judge that the expected benefit of the scan or the treatment outweighs the risk the radiation carries.
2. A scan that finds a tumour early can save a life, so a small increase in the lifetime risk of cancer is worth accepting; a scan that would tell the doctor nothing new is not.
3. Methods that use no ionising radiation, such as ultrasound or magnetic resonance imaging, are used instead wherever they would answer the same question.
4. The patient's record of previous exposures is checked, so that repeated scans of the same person are not ordered without good reason.
5. Extra care is taken with children and with pregnant patients, because dividing cells are the most easily damaged and a child has more years ahead in which a cancer could develop.

Limiting the dose to patients

1. Use the lowest intensity or activity that still produces a usable image, because the dose rate rises with the intensity of the beam.
2. Use the shortest exposure time, since the dose is the dose rate multiplied by the time for which the beam is on.
3. Narrow the beam with a collimator so that it covers only the part of the body being examined, which keeps the rest of the body out of the beam entirely.
4. Cover the organs just outside the beam with a lead apron or thyroid collar, because lead absorbs much of the scattered radiation that would otherwise reach them.
5. Check the settings and the patient's position before switching the beam on, because a poor image has to be retaken and a repeated scan doubles the dose.
6. Use sensitive digital detectors rather than old photographic film, since a detector that responds to fewer arriving photons needs a smaller dose to form the same image.
7. Where a radioactive substance is given to the patient, choose one whose activity falls away soon after the procedure, so the patient is not still being exposed days later.
8. Encourage the patient to drink plenty of fluid afterwards, so any such substance is removed from the body more quickly.
9. In treatment rather than imaging, a large dose is deliberately given to the tumour, so the precautions there are about protecting the healthy tissue around it rather than about reducing the dose to the target.

Protecting medical personnel

1. A patient may be scanned once or twice in a lifetime, but a radiographer works beside the same machine every day, so it is the total dose over a career that has to be controlled.
2. The strongest protection is to be somewhere else, so staff leave the room and operate the machine remotely from a control area.
3. Where they must stay in the room, they stand behind a lead-lined screen or a lead-glass window, which absorbs most of the radiation heading towards them.
4. The walls of an X-ray room are lined with lead or made of thick concrete, so that people in the corridor and in neighbouring rooms are shielded as well.
5. Staff who have to be at the bedside wear lead aprons, thyroid collars and lead gloves, and stand as far from the beam as the procedure allows.
6. Radioactive sources for treatment are moved with long handling tools and kept in shielded containers, so that no one holds a source in their fingers.
7. Work is shared out between staff, so no single person is repeatedly the one standing closest to the machine.
8. Every worker wears a dosimeter badge, which contains a film or a crystal that changes measurably in proportion to the radiation that has reached it.
9. The badges are collected and read at regular intervals, and each worker's running total is compared with the legal dose limit for the year.
10. If someone's total is climbing towards that limit, they are moved to work that involves no exposure, and the reason for the high reading is investigated.
11. A badge gives no protection of its own; it monitors the dose so that action can be taken before the exposure becomes unacceptable.

6.5.5 Contamination and irradiation

Two different things that can happen

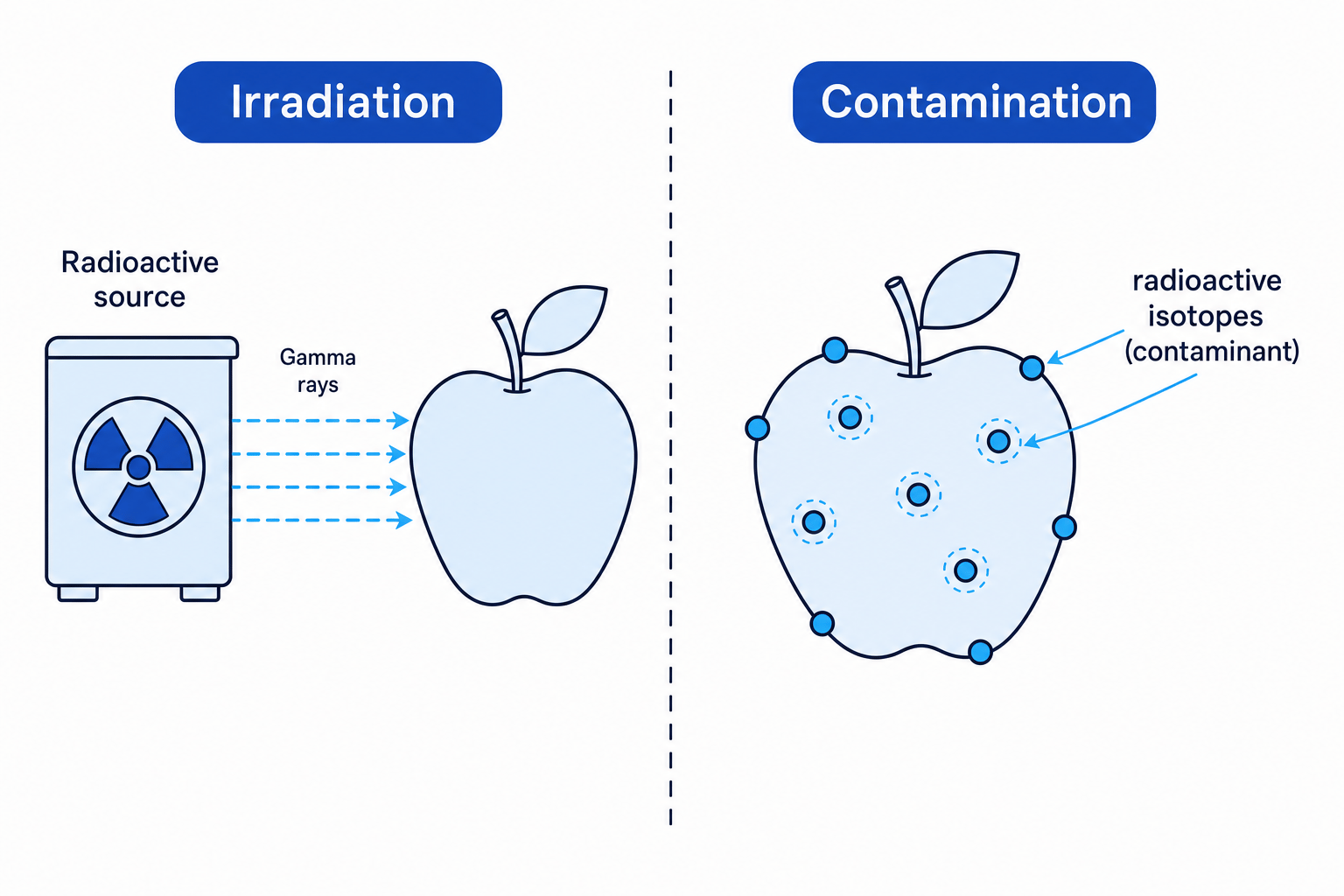

1. The whole distinction rests on one question: has any radioactive material been moved onto or into the object?
2. In irradiation the answer is no: alpha particles, beta particles or gamma rays travel across from the source, deposit energy and are absorbed, but the unstable nuclei stay where they were.
3. In contamination the answer is yes: atoms with unstable nuclei end up on the skin, on a surface, or inside the body, and they carry on decaying there.
4. An object can be irradiated without being contaminated, contaminated without anyone realising, or both at the same time.

The effects of irradiation

1. While the radiation is arriving, it ionises molecules in whatever it passes through, so living cells can be killed and DNA can be altered.
2. The moment the source is taken away, shielded or switched off, the exposure stops immediately.
3. The irradiated object does not become radioactive, because nothing has been added to it that has an unstable nucleus.
4. A patient who has had an X-ray, a syringe that has been sterilised and a strawberry that has been irradiated are all safe to handle straight afterwards for exactly this reason.
5. The size of the hazard depends on the type of radiation, the activity of the source, the time spent near it, the distance from it and the shielding used, so all of those can be controlled.
6. From outside the body, gamma radiation is the greatest irradiation hazard because it penetrates deeply, while alpha radiation is the least because the dead outer layer of skin absorbs it.

The effects of contamination

1. Contamination happens when radioactive dust settles on skin or clothing, when a radioactive liquid is spilled, when radioactive gas is breathed in, or when radioactive material is swallowed with food or water or enters through a cut.
2. Once the material is there, the object or person carries the source with them, so moving away from the original spill changes nothing.
3. The exposure continues until the material is washed or cleaned away, is excreted by the body, or has decayed to a low activity, and none of those can be done instantly.
4. Contamination also spreads, because contaminated hands touch door handles and contaminated boots walk material out of the laboratory.
5. Contamination inside the body is the most serious case, because there is no layer of skin between the source and living cells.
6. This reverses the usual ranking: an alpha emitter is the most dangerous contaminant, because it is strongly ionising and deposits all of its energy in a very small volume of living tissue.
7. Some contaminants are worse still because the body concentrates them: radioactive iodine collects in the thyroid gland and strontium behaves chemically like calcium, so it is built into bone.
8. Contamination is controlled by keeping sources sealed, working over trays, wearing gloves and laboratory coats, banning food and drink, and monitoring hands and surfaces with a detector before leaving.

Comparing the hazards

1. Both hazards do their damage the same way, by ionising molecules in cells, so the difference is not in the kind of harm but in how long it goes on and how easily it can be stopped.
2. Duration: irradiation is over the instant the source is gone, whereas contamination keeps exposing the person for as long as the material stays put.
3. Control: irradiation is reduced by time, distance and shielding, while contamination is dealt with by removing the material and by stopping it spreading.
4. Reach: irradiation affects only what is within range of the source, while contamination travels wherever the contaminated person, object, air or water goes.
5. Radiation type: gamma is the worst for irradiation from outside, and alpha is the worst for contamination inside the body.
6. Neither is always the more dangerous, and the honest comparison depends on the numbers in the situation.
7. A few minutes beside a high-activity gamma source can give a larger exposure than a trace of contamination ever would.
8. Contamination of a large area with a long-lived isotope is the harder problem, because the exposure cannot be switched off and the land may stay unusable for decades.

6.7.1 Nuclear power: advantages and disadvantages

Weighing up nuclear power

1. A nuclear power station generates electricity using energy released inside its uranium fuel, so no fuel is burned and the station's advantages and disadvantages are quite different from those of a coal or gas station.
2. An evaluation is not a list; it sets advantages against disadvantages, gives a reason for each, and ends with a judgement that follows from those reasons.
3. Several of the arguments turn on risk, which combines how likely harm is with how serious that harm would be if it happened.
4. Nuclear power sits at one extreme of that combination: the probability of a major release is very small, but the consequences would be very large, which is why people disagree about it so strongly.
5. Five areas have to be covered in a full answer: carbon dioxide emissions, reliability, the risk of an accident, radioactive waste and safety, together with how the public sees all of these.

Carbon dioxide emissions

1. Nothing is burned while the station is running, so generating the electricity releases no carbon dioxide, and no sulfur dioxide or smoke particles either.
2. Carbon dioxide is a greenhouse gas, so electricity generated this way makes a much smaller contribution to climate change than the same electricity from coal or gas.
3. Nor does it release the sulfur dioxide that causes acid rain, which is a further advantage over burning coal.
4. Looked at over the whole life of the station, though, the emissions are low rather than zero.
   1. Mining, processing and enriching the uranium all use energy that today mostly comes from fossil fuels.
   2. Making the enormous quantities of concrete and steel for the buildings releases carbon dioxide.
   3. Fuel and waste have to be transported, and the station has to be dismantled at the end of its life.
5. Even counting all of that, the carbon dioxide released for each unit of electricity is far below that of a fossil-fuel station, so the advantage is real; the accurate phrase is low carbon rather than carbon free.

Reliability and fuel

1. The output does not depend on the weather, so a nuclear station can run at close to full power day and night for months at a time, which wind turbines and solar panels cannot.
2. This makes nuclear useful for the base load, the steady demand that never goes away, so a country using a lot of renewable generation still has a supply when the wind drops.
3. An enormous amount of energy is released from each kilogram of fuel compared with coal, so only a small mass of fuel has to be mined, transported and stored each year.
4. Because so little fuel is needed, the cost of the fuel is a small part of the running cost, so the price of electricity is not pushed about by fuel prices in the way gas generation is.
5. Uranium is a finite resource that has to be imported, so nuclear power is not renewable and does not remove every question about long-term supply.
6. A reactor is also slow to start up and shut down, so it is poorly suited to following sudden changes in demand.

Risk of an accident

1. A working station holds a very large quantity of intensely radioactive material inside its reactor and its fuel stores.
2. If the containment failed, radioactive material could escape into the air and into rivers or the sea, spreading over a wide area as dust and rain.
3. People nearby would receive a large dose, and thousands might have to leave their homes, in some cases permanently.
4. Where the escaping isotopes are long-lived, farmland, water supplies and buildings can stay unusable for decades.
5. The accidents at Chernobyl in 1986 and Fukushima in 2011 are the events usually quoted, and both led to large exclusion zones.
6. Such accidents are very rare, and measured against the electricity generated worldwide the number of deaths caused by nuclear power is far smaller than the number caused by air pollution from burning coal.
7. A fair judgement therefore uses both halves of the risk: a very low probability combined with a very severe consequence.

Radioactive waste

1. Waste is sorted by how active it is, and the three levels are handled very differently.
   1. Low level waste, such as used gloves, tools and packaging, is only slightly active and is compacted and buried in lined, monitored surface sites.
   2. Intermediate level waste, such as reactor components and metal fuel cladding, needs shielding and is set in concrete inside steel drums.
   3. High level waste, the used fuel itself, is intensely radioactive and generates so much thermal energy that it has to be cooled for years before it can be moved.
2. Used fuel is first stored under water in cooling ponds on the site, where the water absorbs the radiation and carries the thermal energy away.
3. It is then sealed into glass or ceramic blocks inside corrosion-resistant containers, which stops the material dissolving or blowing away.
4. The long-term plan in most countries is deep geological disposal, burying the containers hundreds of metres down in stable rock away from groundwater.
5. Some of the isotopes in the waste have half-lives of thousands of years, so it must stay isolated for longer than any human structure has ever survived.
6. This is the strongest argument against nuclear power: the electricity is used now, but the cost and responsibility of guarding the waste fall on future generations who gained nothing from it.

Safety systems and cost

1. Because the consequences of a release are so serious, a station is built with several independent barriers rather than relying on any single one.
   1. The fuel is sealed in metal cladding, which is enclosed in a thick steel pressure vessel, which sits inside a reinforced concrete containment building.
   2. There are separate emergency shutdown systems and back-up cooling with its own back-up electricity supply.
   3. Radiation levels are monitored continuously on the site and in the surrounding area.
   4. Staff are trained and the whole site is inspected by an independent regulator with the power to shut it down.
2. All of this makes a nuclear station expensive and slow to build, often taking well over a decade from decision to first electricity.
3. At the end of its life the station has to be decommissioned, which means dismantling radioactive structures over several decades and paying to store what is removed.
4. So although the fuel is cheap, the electricity is not cheap once building, safety and decommissioning are counted across the whole life of the station.

Public perception

1. Public perception is how large people believe the risk to be, and it is often quite different from the risk the measurements show.
2. People judge a hazard as worse when it is unfamiliar, when it is invisible, when the harm might appear years later, and when a single event could affect very many people at once, and nuclear power has all four of these features.
3. Major accidents are reported worldwide for years afterwards, whereas the steady harm done by air pollution from fossil fuels is rarely reported at all, so the two are not judged on the same scale.
4. Perception has real effects: local opposition can delay or block a new station or a waste repository, and public opinion after an accident abroad has led some countries to close their reactors early.
5. Opinion is not simply an obstacle to be argued away, because the people who live near a station are the ones who would carry the consequences, and in a democracy they have a say in the decision.
6. The scientific evidence on emissions, doses and accident rates informs the decision, but it does not make it; that is a choice for society.

6.7.2 Nuclear reactions and the fission of U-235

Nuclear reactions as energy sources

1. A chemical reaction only rearranges the electrons on the outside of atoms, so every nucleus is exactly the same before and after it.
2. A nuclear reaction changes the nucleus itself, so the number of protons or neutrons is different afterwards and the atom can end up as a different element.
3. A nucleus is written as ${}_Z^{A}X$, where $A$ is the mass number, the total number of protons and neutrons, and $Z$ is the atomic number, the number of protons.
4. Nuclear reactions release enormously more energy per atom than chemical reactions, which is why a few kilograms of nuclear fuel can do the work of thousands of tonnes of coal.
5. Three kinds of nuclear reaction can be used as a source of energy, and you need to be able to recall all three.
   1. Nuclear fission, in which a large nucleus splits into two smaller ones.
   2. Nuclear fusion, in which small nuclei join to make a larger one.
   3. Radioactive decay, in which an unstable nucleus emits an alpha particle, a beta particle or a gamma ray.
6. Of these three, the one you must be able to explain in detail is the fission of uranium-235.

The uranium-235 nucleus

1. Uranium-235 is written as ${}_{92}^{235}U$, so it holds $92$ protons and $235-92=143$ neutrons.
2. That is one of the largest nuclei found in nature, and the more protons a nucleus contains the harder it is to hold together, because every proton repels every other proton.
3. A uranium-235 nucleus is therefore only just stable, and absorbing one extra neutron is enough to tip it over the edge.
4. A nucleus that will split after absorbing a neutron in this way is described as fissile.
5. Most natural uranium is uranium-238, which is not fissile in the same way, so reactor fuel is processed to raise the proportion of uranium-235 it contains.

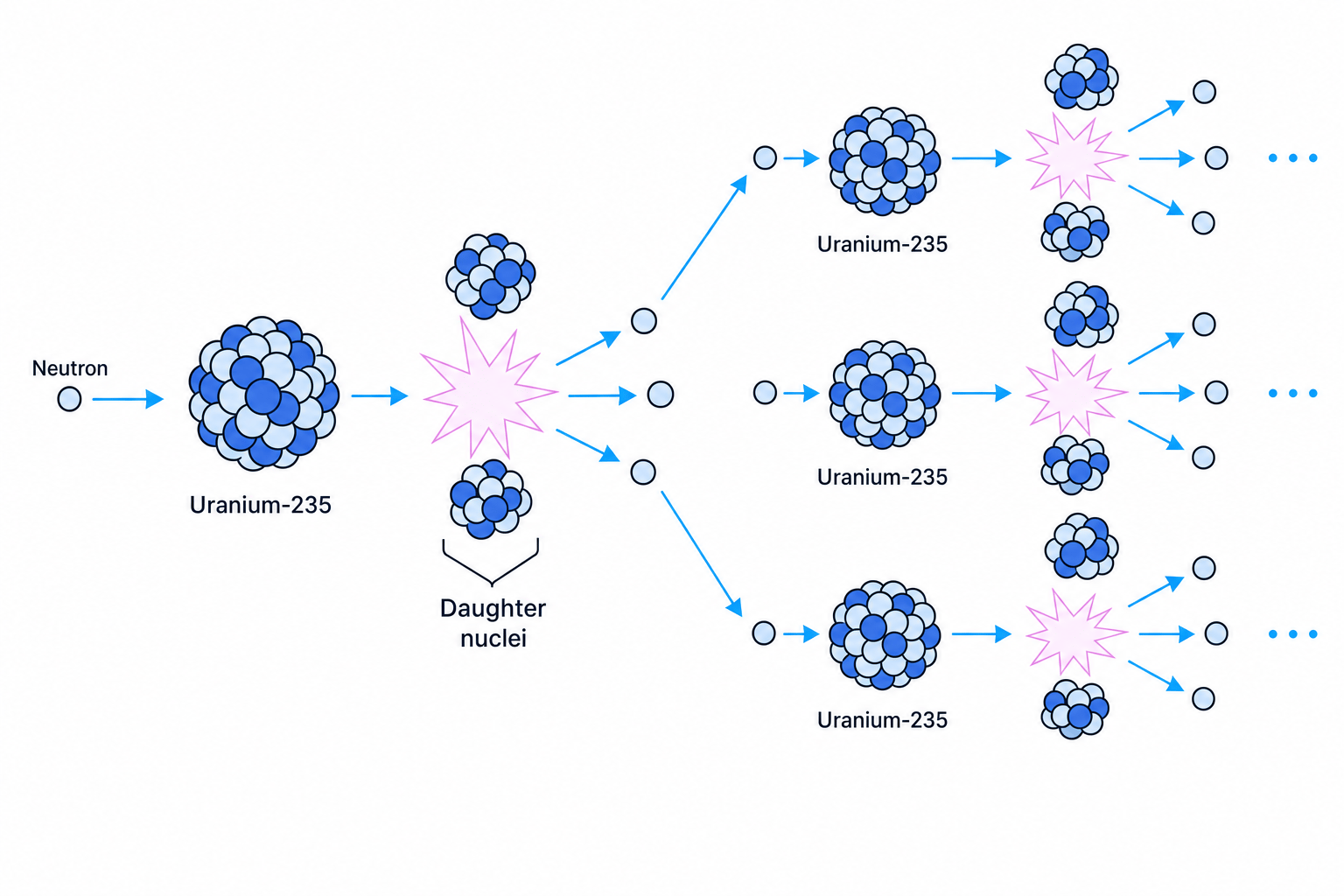

The fission of uranium-235

1. A slow-moving neutron reaches a uranium-235 nucleus and is absorbed by it rather than bouncing off or passing through.
2. The nucleus now has one more neutron, making it ${}_{92}^{236}U$, and this new nucleus is highly unstable.
3. Within a tiny fraction of a second the unstable nucleus splits into two smaller daughter nuclei.
4. At the same instant two or more neutrons are thrown out, because a large nucleus needs proportionally more neutrons to hold it together than the two smaller ones do.
5. A large amount of energy is released, mostly as the kinetic energy of the two daughter nuclei flying apart, with some carried away as gamma radiation.
6. The fast-moving daughter nuclei collide with surrounding atoms and are slowed down, so that kinetic energy ends up as an increase in the thermal energy of the fuel.
7. In words, the whole process is $U-235\; nucleus+neutron\to two\; daughter\; nuclei+two\; or\; more\; neutrons+energy$.
8. One possible split is ${}_{92}^{235}U{+}_0^{1}n\to {}_{56}^{141}Ba{+}_{36}^{92}Kr+3{}_0^{1}n$, and both the mass numbers and the atomic numbers balance across the arrow.
9. The two daughter nuclei are not equal halves, and the same nucleus can split in many different ways, so barium and krypton are only one of the possible pairs.
10. This kind of fission is described as induced, because a neutron has to arrive and trigger it, unlike radioactive decay, which happens on its own.

Where the energy comes from

1. Add up the masses of everything produced by one fission and the total is very slightly less than the mass of the uranium nucleus and the neutron that went in.
2. That missing mass is the source of the energy released, so the reaction does not create energy from nothing.
3. The fractional loss of mass is tiny, but because so many nuclei are involved the energy adds up to an enormous amount from a very small mass of fuel.
4. One fission of uranium-235 releases roughly a million times as much energy as burning one carbon atom, which is the reason a nuclear station needs so little fuel.

6.7.3 Controlled chain reactions and nuclear reactors

How a chain reaction builds

1. Each fission of a uranium-235 nucleus throws out two or more neutrons, and those neutrons are what makes a chain reaction possible.
2. If one of them is absorbed by another uranium-235 nucleus, that nucleus becomes unstable and splits in turn, releasing more neutrons and more energy.
3. The reaction is therefore self-sustaining: once it has started, it supplies its own trigger and needs nothing from outside.
4. Not every neutron goes on to cause a fission, because some escape from the edge of the fuel and some are absorbed by nuclei that do not split.
5. What matters is therefore the average number of neutrons from each fission that go on to cause another fission, and everything about running a reactor comes down to holding that number where it is wanted.

Keeping the reaction steady

1. If more than one neutron per fission causes a further fission, the number of fissions grows with every generation, so the rate of energy release rises faster and faster and the reaction runs away.
2. If fewer than one does so, each generation is smaller than the one before, so the reaction dies out and the reactor shuts itself down.
3. If exactly one does so, each generation is the same size as the last, so the number of fissions per second stays constant and energy is released at a steady rate.
4. That last case is a controlled chain reaction, and it is the condition a power station holds its reactor in for months at a time.
5. A steady rate of fission gives a steady rate of energy transfer, which is what allows a turbine and generator to run at a constant output.

The moderator

1. The neutrons that come out of a fission are moving extremely fast, and a fast neutron is very likely to shoot past a uranium-235 nucleus without being captured.
2. Left as they are, too few of them would be absorbed, so the chain reaction would not keep going.
3. The fuel rods are therefore surrounded by a moderator, usually blocks of graphite or a tank of water, filling the space between them.
4. A neutron leaving a fuel rod collides many times with the nuclei of the moderator, and it transfers some of its kinetic energy at each collision.
5. After enough collisions the neutron is travelling slowly, and a slow neutron spends far longer passing a nucleus, so it is much more likely to be absorbed.
6. Slowed neutrons that wander back into a fuel rod are therefore absorbed by uranium-235 nuclei, and the chain reaction is sustained.
7. The moderator slows neutrons down and does not absorb them, which is the single most important thing to keep straight in this topic.

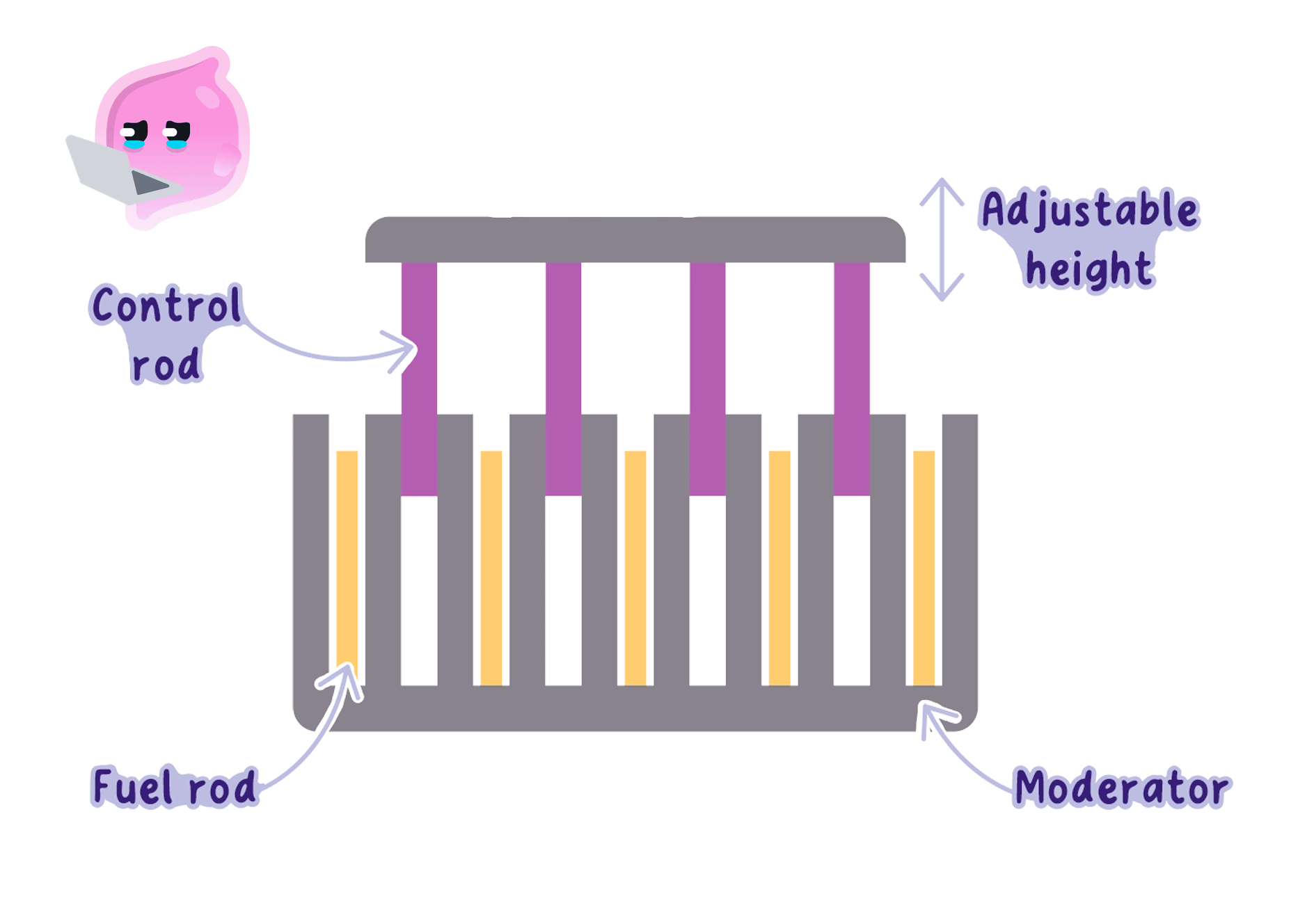

The control rods

1. Control rods are made from a material that absorbs neutrons strongly without splitting, such as boron or cadmium.
2. They hang between the fuel rods and can be raised and lowered by motors while the reactor is running.
3. Every neutron a rod absorbs is one that can no longer reach a uranium-235 nucleus, so the rods set how many neutrons are left to keep the reaction going.
4. Lowering the rods further in absorbs more neutrons, so fewer fissions happen each second and the rate of energy release falls.
5. Raising the rods further out absorbs fewer neutrons, so more fissions happen each second and the rate of energy release rises.
6. Detectors in the core measure the neutron level continuously and the rod position is adjusted automatically, which holds the average at one neutron per fission causing the next.
7. In an emergency the rods are dropped fully into the core, absorbing so many neutrons that almost none reach a fuel nucleus and the chain reaction stops.

From fission to electricity

1. The energy released by the controlled chain reaction raises the thermal energy of the fuel rods, so the core becomes extremely hot.
2. A coolant, usually water under high pressure or carbon dioxide gas, is pumped through the core and heated as it passes the fuel rods.
3. The hot coolant flows to a heat exchanger, where it transfers thermal energy to water in a completely separate circuit before returning to the core.
4. Keeping the two circuits separate matters, because the coolant has been through the reactor and must not be allowed to carry radioactive material out to the rest of the station.
5. The water in the second circuit boils, producing high-pressure steam.
6. The steam is directed onto the blades of a turbine and makes it spin.
7. The turbine shaft turns a generator, which transfers energy electrically to the National Grid through transformers.
8. The used steam is condensed back to water in a condenser cooled by river or sea water, and pumped round to be boiled again.
9. The reactor is only the source of thermal energy, so from the heat exchanger onwards a nuclear station works in exactly the same way as a coal or gas station.

The products are radioactive

1. The daughter nuclei left after a fission have too many neutrons for nuclei of their size, because they inherited a neutron-rich mixture from the much larger uranium nucleus.
2. Those nuclei are unstable, so they undergo radioactive decay and emit ionising radiation, which is why the products of nuclear fission are radioactive.
3. Used fuel taken out of the core is therefore intensely radioactive, and some of the isotopes in it stay active for a very long time.
4. Parts of the reactor structure also become radioactive over the years, because their nuclei absorb neutrons and become unstable.
5. Used fuel is therefore moved by remote handling behind thick shielding, and it is this radioactivity that creates the waste and decommissioning problems a nuclear station has to plan for.

6.7.4 Nuclear fusion

What happens in nuclear fusion

1. In fusion, two small nuclei come together and merge into a single larger nucleus, so the number of particles bound into one nucleus goes up rather than down.
2. The reaction most often used as an example joins two isotopes of hydrogen: deuterium, ${}_1^{2}H$, which has one proton and one neutron, and tritium, ${}_1^{3}H$, which has one proton and two neutrons.
3. Written as a nuclear equation this is ${}_1^{2}H{+}_1^{3}H\to {}_2^{4}He{+}_0^{1}n$.
4. Both sides balance, because the mass numbers give $2+3=4+1$ and the atomic numbers give $1+1=2+0$.
5. The larger nucleus created here is helium-4, and a spare neutron is left over that carries away most of the energy released.
6. Fusion of small nuclei releases energy, and this holds for nuclei up to about the size of iron; joining nuclei larger than that would take energy in rather than give it out.

The loss of mass

1. Weigh everything before the reaction and everything after it, and the total mass afterwards is very slightly smaller.
2. No particles have gone missing, since the number of protons and the number of neutrons are both unchanged; it is the mass itself that has decreased.
3. That loss of mass is where the released energy comes from, so mass and energy are two forms of the same thing rather than two separate quantities.
4. The fraction of mass lost is extremely small, but the energy that appears is very large, which is why fusion releases more energy per kilogram of fuel than any chemical reaction and more even than fission.
5. A full description of fusion therefore needs three linked statements: small nuclei join, a larger nucleus is created, and a loss of mass is accompanied by a release of energy.

Fusion in stars

1. A star is a vast ball of gas that is mostly hydrogen, and in its core hydrogen nuclei fuse to form helium.
2. Every one of those reactions involves a small loss of mass, so every one releases energy, and an enormous number of them happen every second.
3. The energy released keeps the core extremely hot and eventually works its way out to the surface, from where the star radiates it away as light, infrared and other electromagnetic radiation.
4. Fusion is therefore the energy source for stars, including the Sun, and all the energy arriving at the Earth as sunlight was released by fusion in the Sun's core.
5. Because mass is lost in each reaction, the Sun is very slowly getting lighter as it shines, even though it is losing only a tiny fraction of its mass over its whole lifetime.
6. Fusion in stars also builds the heavier elements, so the carbon, oxygen and nitrogen in your body were made inside stars that existed before the Sun.

Fusion compared with fission

1. Fusion and fission are both nuclear reactions, so both change the nuclei of atoms rather than rearranging their electrons.
2. Both release energy, and in both cases the energy comes from a small loss of mass between the particles going in and the particles coming out.
3. The difference that defines them is the direction of the change: fusion joins small nuclei into a larger one, whereas fission splits one large nucleus into smaller ones.
4. The fuels are at opposite ends of the periodic table: fusion uses the lightest nuclei, such as isotopes of hydrogen, while fission uses the heaviest, such as uranium.
5. Fission has to be started by a neutron being absorbed, whereas fusion happens only where nuclei are already being driven together under extreme conditions.
6. The products differ too: the daughter nuclei from fission are radioactive, while the helium produced by fusion is a stable, harmless gas.
7. Where each one is found also differs: fission is what runs nuclear power stations on the Earth today, and fusion is what powers every star.

6.7.5 Conditions for fusion

Why nuclei resist joining

1. Every nucleus contains protons, and protons carry positive charge, so every nucleus is positively charged.
2. Two objects with the same type of charge repel each other, so two nuclei approaching one another push each other apart.
3. That repulsive force gets rapidly stronger as the separation gets smaller, so the closer the nuclei get, the harder they are pushed back.
4. The attractive force that would hold the two nuclei together once they merge acts only over an extremely short range, roughly the width of a nucleus itself.
5. So the two nuclei have to be forced right up against each other before that attraction can take over, and the electrostatic repulsion is fighting them the whole way in.
6. Getting that close means the nuclei must arrive with a great deal of kinetic energy, because that energy is used up doing work against the repulsion as they approach.
7. This is why fusion needs extreme conditions and does not simply happen in a container of hydrogen gas on a laboratory bench.

Why the temperature must be high

1. Temperature is a measure of the average kinetic energy of the particles in a substance.
2. Raising the temperature therefore makes the nuclei move faster, and a faster nucleus arrives at a collision with more kinetic energy to spend.
3. At a very high temperature, enough nuclei have enough kinetic energy to overcome the electrostatic repulsion and get close enough to fuse.
4. At a low temperature the nuclei move slowly, so they run out of kinetic energy while they are still far apart and the repulsion pushes them back before they can touch.
5. The temperatures involved run to tens of millions of degrees, far hotter than anything a flame or a furnace can reach.
6. At those temperatures the atoms have long since lost their electrons, so the fuel is a plasma of bare nuclei and free electrons rather than a gas of atoms.

Why the pressure must be high

1. High pressure squeezes the fuel into a smaller volume, so there are far more nuclei packed into each cubic metre.
2. Nuclei that are packed closely together travel a much shorter distance before meeting another one, so collisions happen far more often.
3. This matters because even in a very hot plasma only a small fraction of collisions actually result in fusion, so a large number of collisions per second is needed to give a useful rate of energy release.
4. At low pressure the nuclei are spread thinly, so collisions are rare and almost no fusion happens even if the nuclei are moving fast enough.
5. The two conditions do different jobs and neither replaces the other: temperature decides whether a collision can lead to fusion, and pressure decides how many collisions there are.
6. In the core of the Sun both conditions are supplied free by gravity, because the weight of the layers above squeezes the core to an enormous pressure and keeps it enormously hot.

Building a fusion power station

1. A power station on Earth cannot reach anything like the pressure at the centre of the Sun, so it has to make up for that with an even higher temperature, above a hundred million degrees.
2. Reaching that temperature takes a very large energy input before any fusion happens at all.
3. No solid container can hold the plasma, because any material touching it would melt or vaporise, and the contact would also cool the plasma below the temperature fusion needs.
4. The plasma is therefore held away from the walls by powerful magnetic fields inside a ring-shaped vessel, which works because a plasma is made of charged particles.
5. The magnets, the heating equipment and the vacuum vessel are all complex and expensive, and running the magnets uses a great deal of electricity of its own.
6. A plasma at these conditions is also difficult to hold steady, because small disturbances grow quickly and can end the reaction in a fraction of a second.
7. A power station must keep the conditions going continuously, not for a few seconds at a time, because the electricity supply has to be constant.
8. The fast neutrons produced by the reaction damage the inner walls over time and make them radioactive, so parts must be replaced and eventually disposed of.
9. The economic test is strict: the station must generate enough electricity to pay back the energy used to heat and confine the plasma, and to cover the cost of building, running and repairing it, and still have electricity left to sell.
10. Individual fusion reactions releasing energy is not enough, and no fusion reactor has yet supplied electricity to a grid, which is why fusion is still an area of research rather than a working power source.
