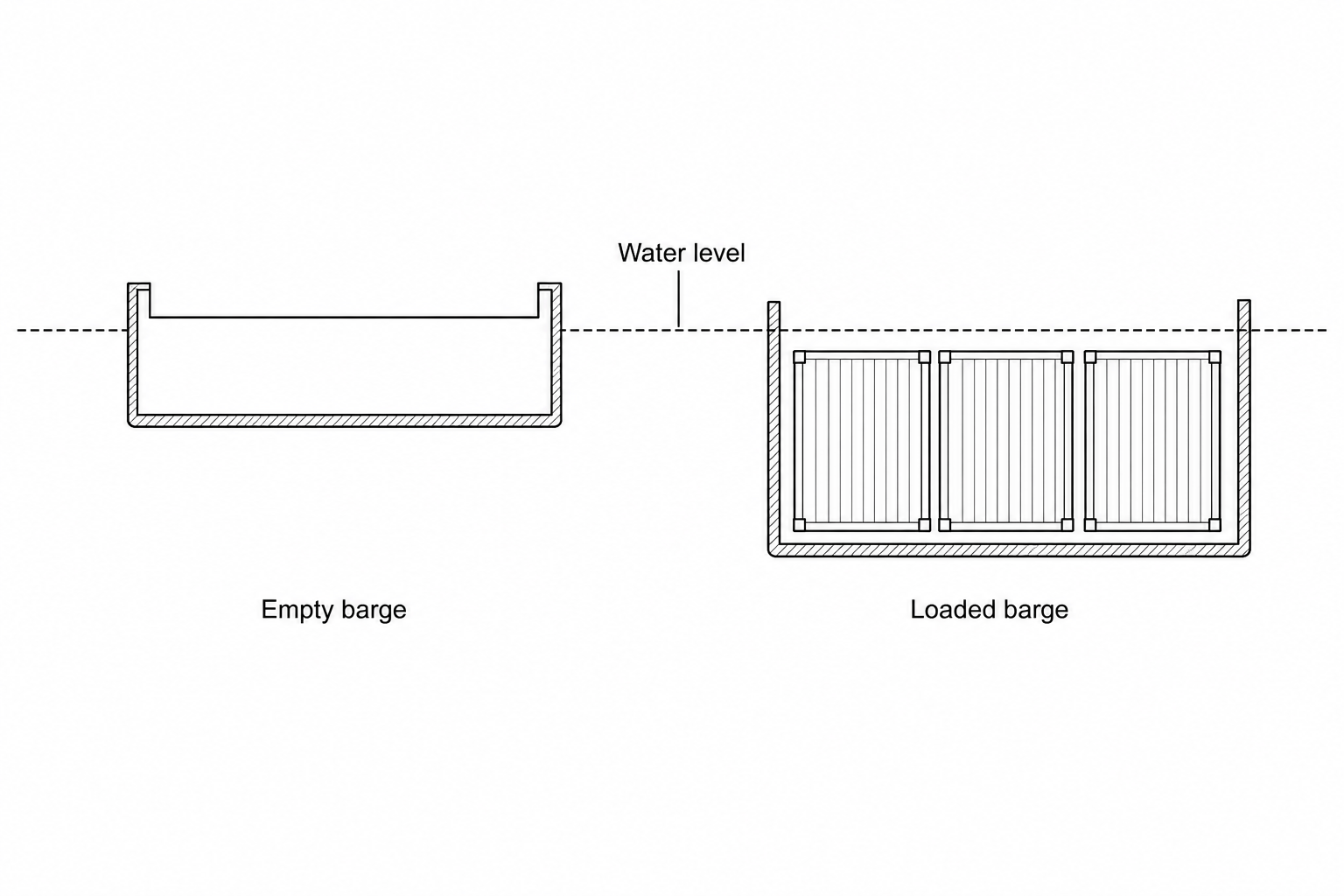

en carrying the cargo containers than when it is empty.","difficulty":7,"difficultyBand":"medium","totalMarks":6,"sourceTitle":null,"calculatorUse":null,"parts":[{"id":"ad92b411-e7ff-42db-8224-f1ba5c9a0b59","label":null,"content":"Explain why the barge floats when empty, and why it floats lower in the water when it is carrying the heavy cargo.","markscheme":"- Identifies that for an object to float, the downward force of its weight must be balanced by an upward upthrust force (equilibrium of forces) B1\n- States that upthrust is equal to the weight of the water displaced by the submerged volume of the barge (Archimedes' principle) B1\n- Explains that the empty barge has a relatively small weight, which is balanced by the upthrust from a small volume of displaced water B1\n- Explains that adding shipping containers increases the overall weight of the barge system B1\n- Explains that to remain floating, the upward upthrust must increase to balance this new, larger total weight M1\n- Connects this directly to sitting lower: the barge must submerge further to displace a larger volume of water to generate the required larger upthrust A1","marks":6,"order":0,"markingRubric":null,"explanation":{"methods":[{"id":"forces_and_displacement","label":"Balance forces and displacement","steps":[{"type":"text","order":0,"title":"Balance the empty barge","content":"For the empty barge to float without moving up or down, the forces must be in **equilibrium** (balanced): its downward weight equals the upward **upthrust** from the water. This earns **B1**.","highlights":[{"text":"The barge floats lower in the water when carrying the cargo containers than when it is empty.","location":"specification"}]},{"type":"text","order":1,"title":"Link upthrust to water","content":"Upthrust is equal to the **weight of the water displaced** by the submerged volume of the barge. *Displaced water* is the water that the submerged part of the barge takes the place of. This earns a further **B1**.","highlights":[{"text":"The barge floats lower in the water when carrying the cargo containers than when it is empty.","location":"specification"}]},{"type":"text","order":2,"title":"Explain the empty barge","content":"When empty, the barge has a relatively small weight. A small volume of submerged barge displaces a small weight of water, producing enough upthrust to balance that small weight. This earns the third **B1**.","highlights":[{"text":"first when empty","location":"specification"}]},{"type":"text","order":3,"title":"Add the cargo weight","content":"Putting heavy shipping containers on the barge increases the overall weight of the barge-and-cargo system. This earns **B1**.","highlights":[{"text":"loaded with heavy shipping containers","location":"specification"}]},{"type":"text","order":4,"title":"Increase the upthrust","content":"The loaded barge still floats, so its forces must again be balanced. Its larger downward weight therefore needs a larger upward upthrust. This earns **M1**.","highlights":[{"text":"The barge floats lower in the water when carrying the cargo containers","location":"specification"}]},{"type":"text","order":5,"title":"Explain the lower position","content":"To produce the larger upthrust, the barge must submerge further and displace a larger volume, so a larger weight, of water. Therefore it floats lower in the water. This earns **A1**.","highlights":[{"text":"floats lower in the water","location":"specification"}]}]}],"generatedAt":"2026-07-22T09:41:59.968Z","modelVersion":"gpt-5.6-terra+diagrams-1","explanationVersion":"v3"},"options":[]}],"options":[],"explanation":null,"firstAttemptFullMarks":null},{"id":"9883bc2d-46f2-468f-a52a-040a6f512d5c","revisionId":"84592123-0e90-43ba-97de-526d838146d0","questionNumber":null,"questionType":"LA","specification":"Figure 1 shows how the gauge pressure in a deep, non-homogeneous liquid ocean on a distant moon varies with depth below the surface.\n\n![Figure 1: A line graph showing gauge pressure in megapa

Pressure in fluids and upthrust

Question 16
