Question 16
Medium

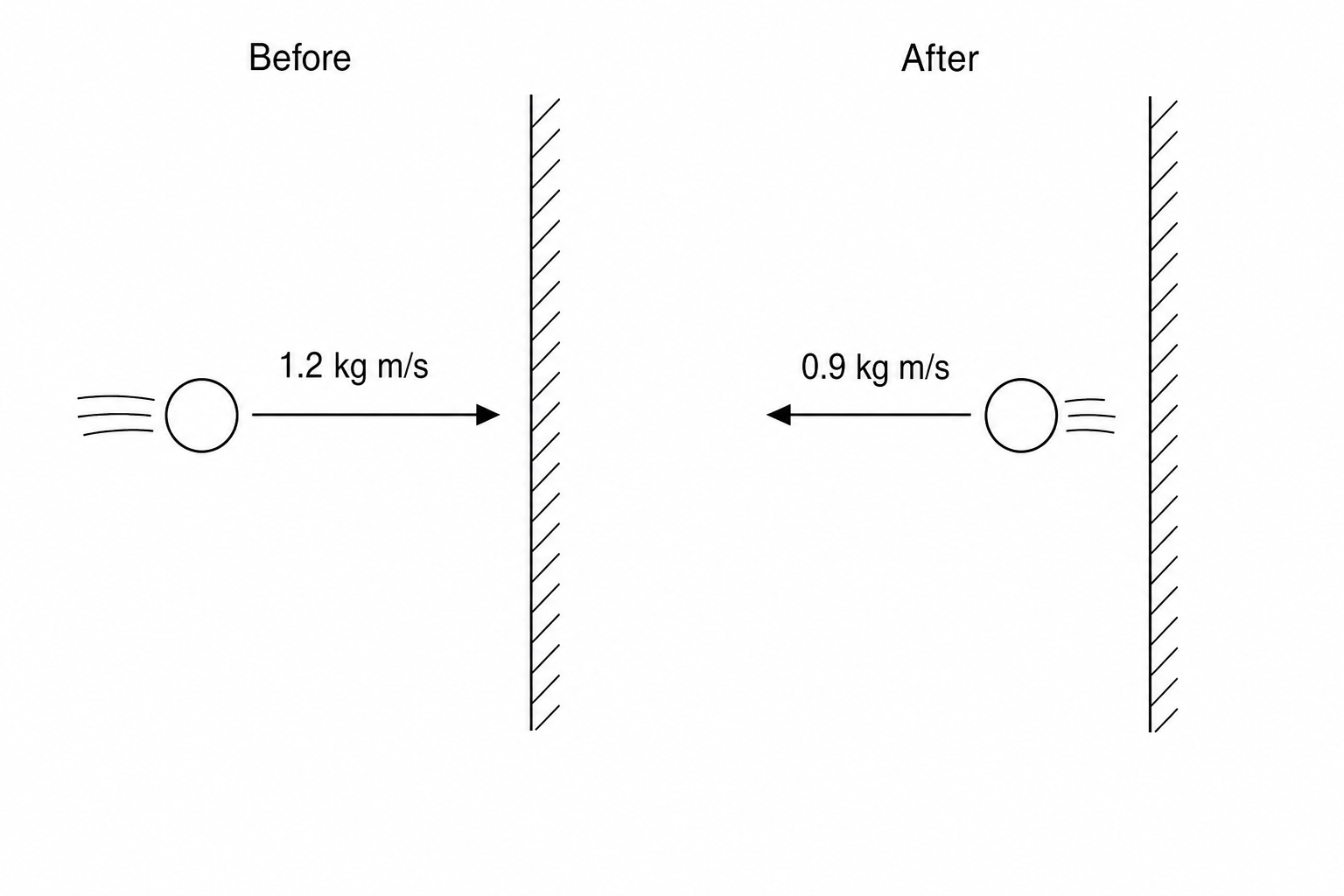

Figure 1 shows a squash ball before and after it collides with a wall.

Figure 1: Diagram showing a squash ball before and after it collides with a flat vertical wall. The panel labelled 'Before' shows the ball moving horizontally to the right towards the wall with a momentum of 1.2 kg m/s. The panel labelled 'After' shows the ball moving horizontally to the left away from the wall with a momentum of 0.9 kg m/s in the opposite direction.

Before the collision, the momentum of the ball is 1.2 kg m/s.

After the collision, the momentum of the ball is 0.9 kg m/s in the opposite direction.

The ball is in contact with the wall for a time of 60 ms during the collision.

Calculate the magnitude of the average force exerted on the ball by the wall.

Use an equation selected from the physics equation sheet.

[3]
