Question 7
Medium

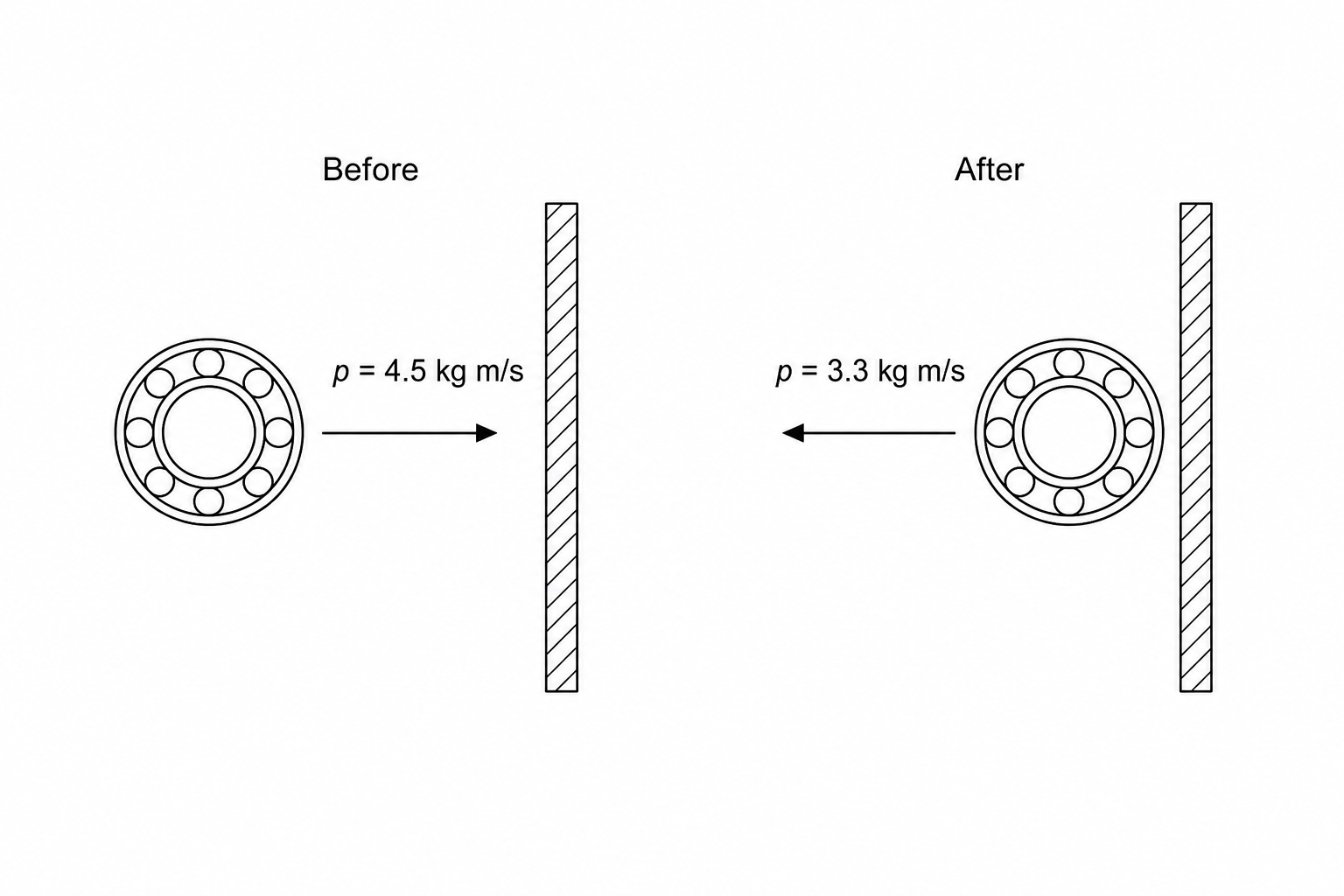

The diagram shows a steel ball-bearing in an industrial sorting machine before and after it collides with a flat vertical deflector plate.

Diagram showing a steel ball-bearing before and after it collides with a deflector plate

Before the collision, the momentum of the ball-bearing is 4.5 kg m s−14.5\text{ kg m s}^{-1}4.5 kg m s−1 horizontally to the right.

After the collision, the momentum of the ball-bearing is 3.3 kg m s−13.3\text{ kg m s}^{-1}3.3 kg m s−1 horizontally to the left (in the opposite direction).

The ball-bearing is in contact with the deflector plate for a duration of 15 ms15\text{ ms}15 ms.

Calculate the magnitude of the average force exerted on the ball-bearing by the deflector plate.

[3]
