Question 12
Easy

A toy car of mass m m\,m is acted on by a constant resultant force of 12 N.

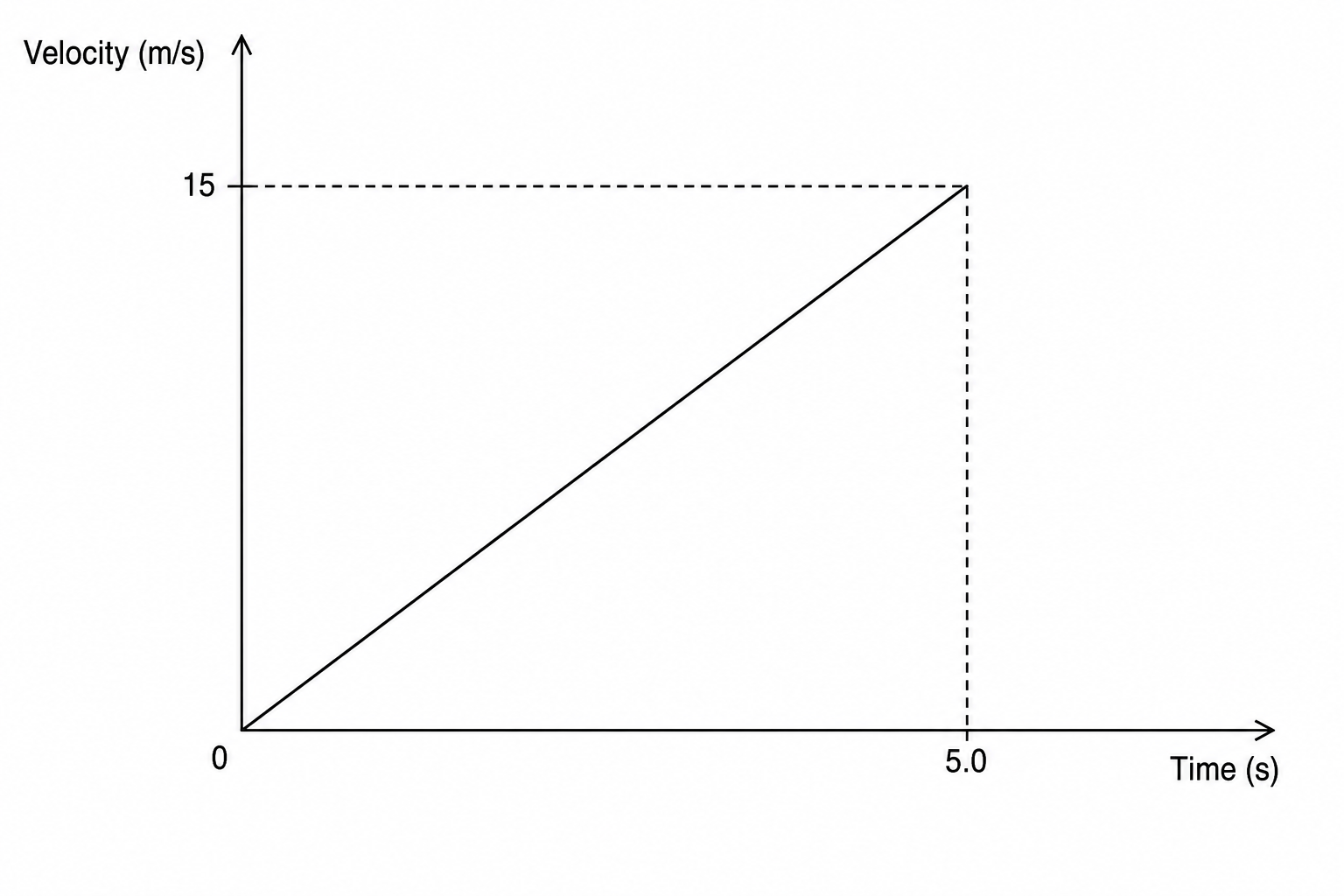

Figure 1: A velocity-time graph with velocity in meters per second (m/s) on the y-axis and time in seconds (s) on the x-axis. A straight line starts at the origin (0,0) and rises steadily to a point at time = 5.0 s and velocity = 15 m/s.

Calculate the value of the inertial mass, mmm, of the toy car using the graph in Figure 1.

[2]
