Moments, levers and gears

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Question 55

Easy

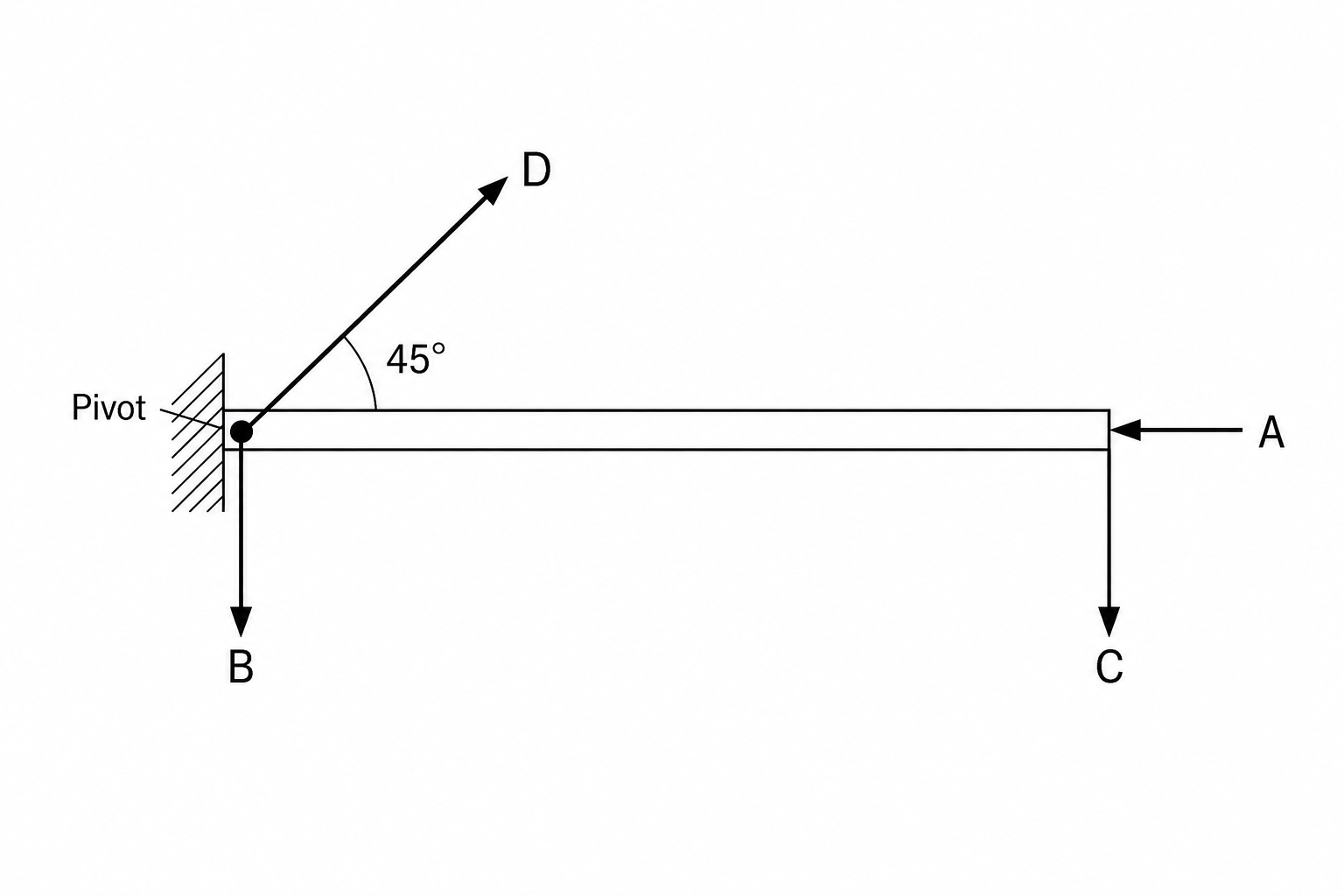

Figure 1 shows a uniform horizontal bar that is free to rotate around a fixed axle (pivot) at its left end. Four forces, $A$ , $B$ , $C$ , and $D$ , are applied to the bar.

Which force will produce a turning effect (moment) to make the bar rotate about the axle?

Force $A$

Force $B$

Force $C$

Force $D$
