Question 20
Medium

A foot pedal mechanism uses a horizontal lever pivoted at a point PPP.

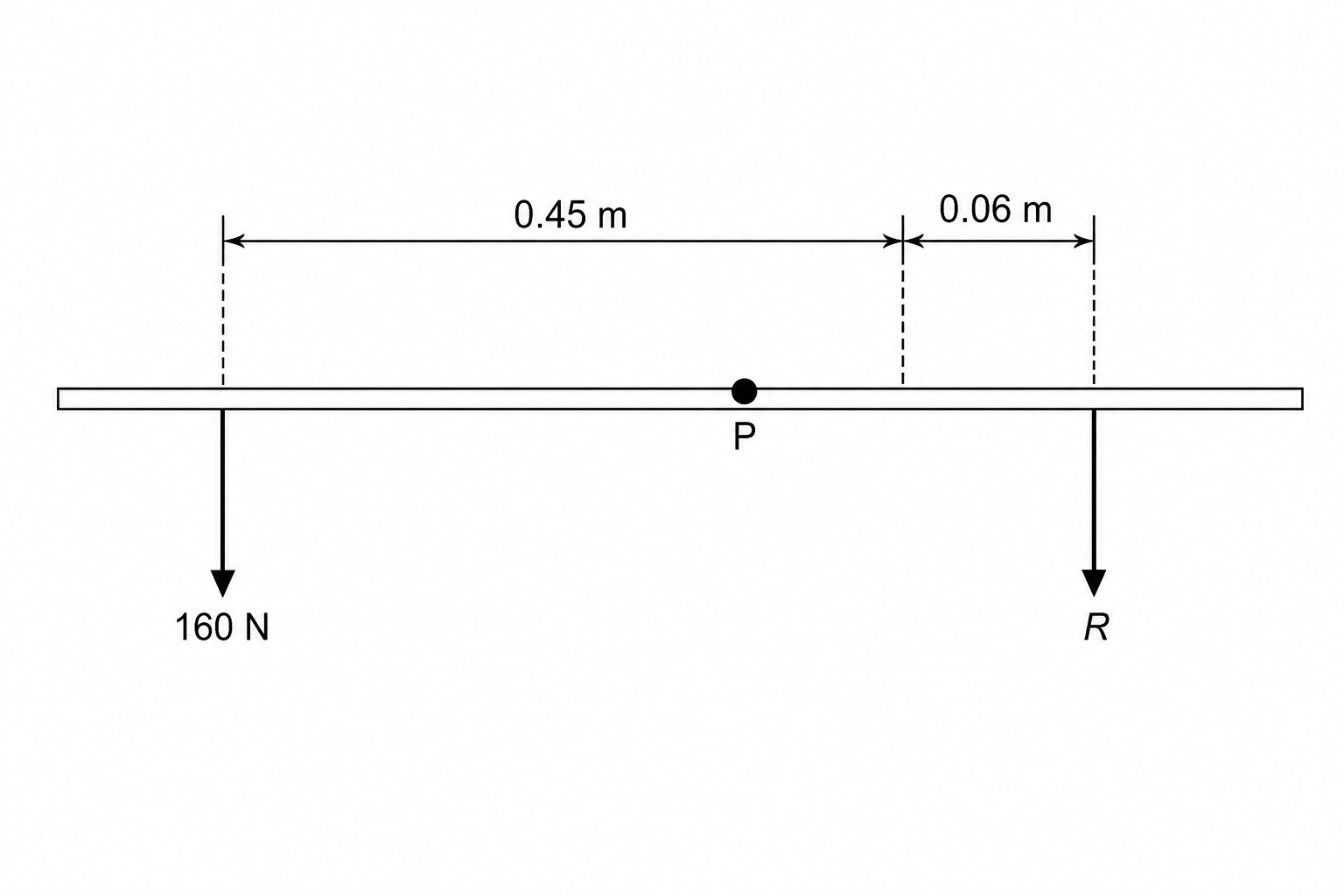

The diagram shows the vertical forces acting on the lever when it is in equilibrium.

A foot pedal lever mechanism pivoted at P with forces 160 N and R

Calculate the magnitude of the resistance force, RRR, exerted on the lever.

[3]
