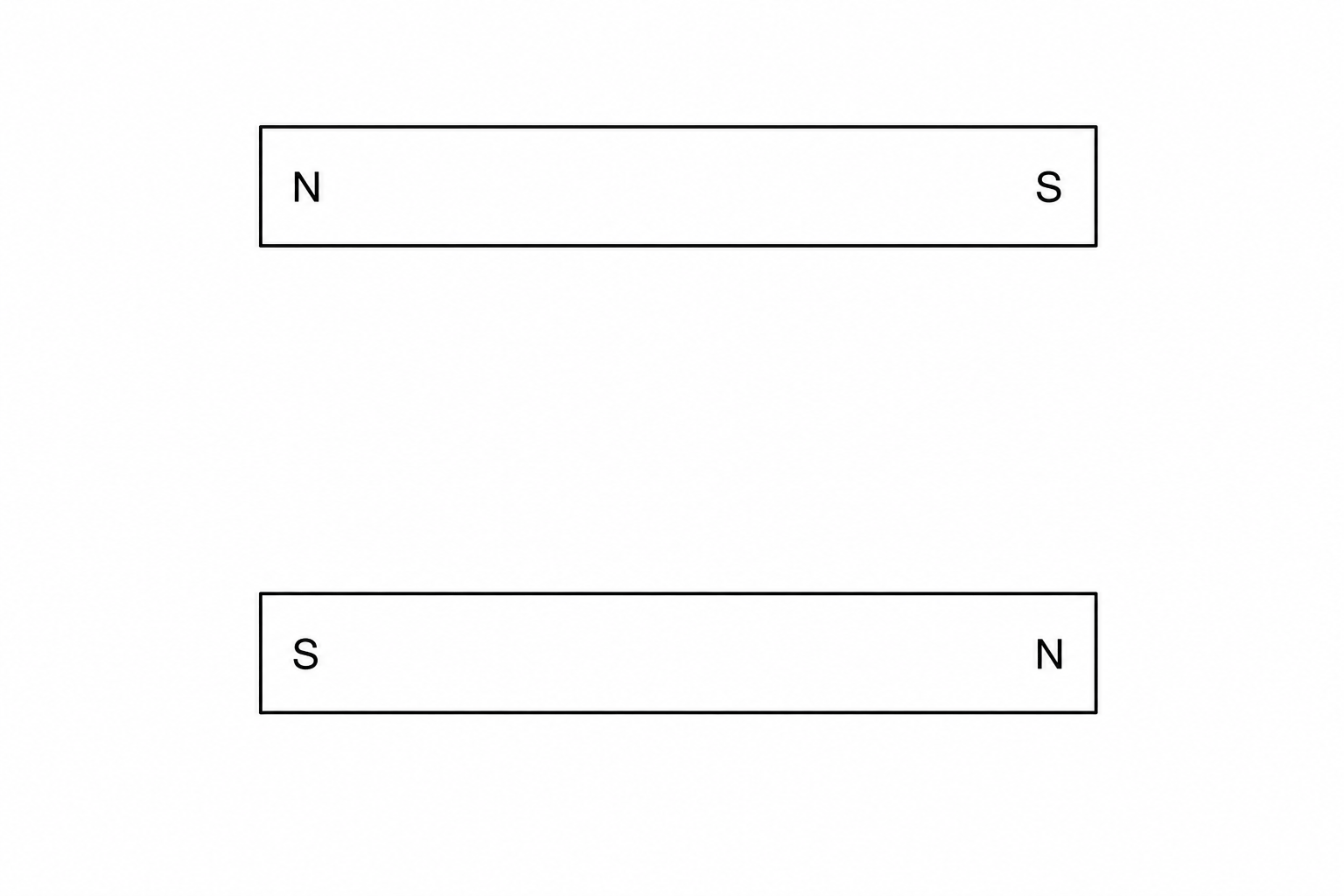

A student places two bar magnets parallel to one another on a bench, with a small gap between them.
The top magnet has its North (N) pole on the left and its South (S) pole on the right. The bottom magnet has its South (S) pole on the left and its North (N) pole on the right.
On a copy of the diagram, draw at least three magnetic field lines in the space between the two parallel magnets.
Your drawing must show:
- the shape of the magnetic field lines in this region
- the direction of the magnetic field lines
Magnets and magnetic fields Questions
Practise Edexcel GCSE Physics Magnets and magnetic fields with exam-style questions for Foundation and Higher tier. 100 questions, matched to the Edexcel GCSE Physics (1PH0) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
