A student uses a digital magnetometer sensor connected to a tablet to measure the local magnetic field in a physics laboratory.

Figure 1 shows the sensor's reading on the tablet before a strong magnet is placed on the workbench nearby.

Figure 2 shows the reading after the magnet is placed on the workbench.

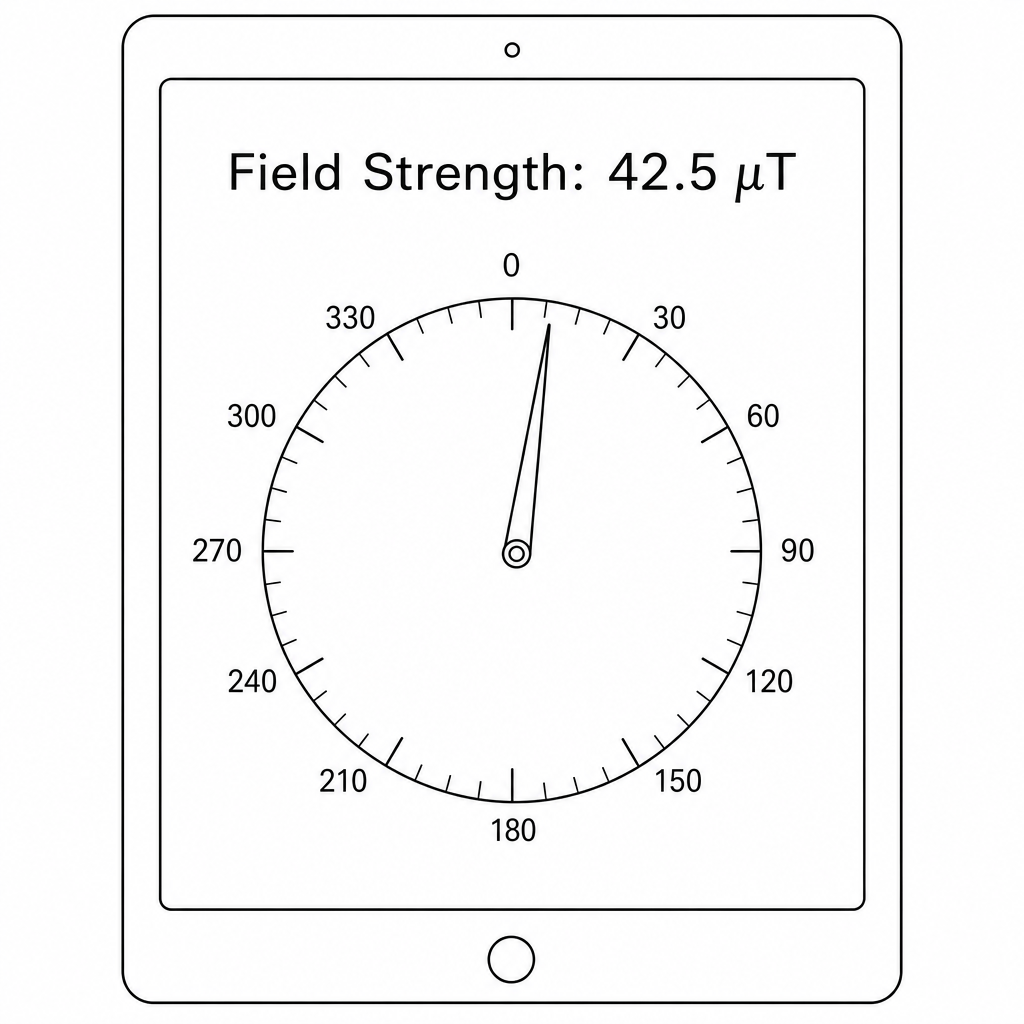

Figure 1: Tablet screen displaying the digital magnetometer app before the magnet is placed. It shows a digital reading of 'Field Strength: 42.5 μT' and a circular compass dial with a needle pointing to 12°.

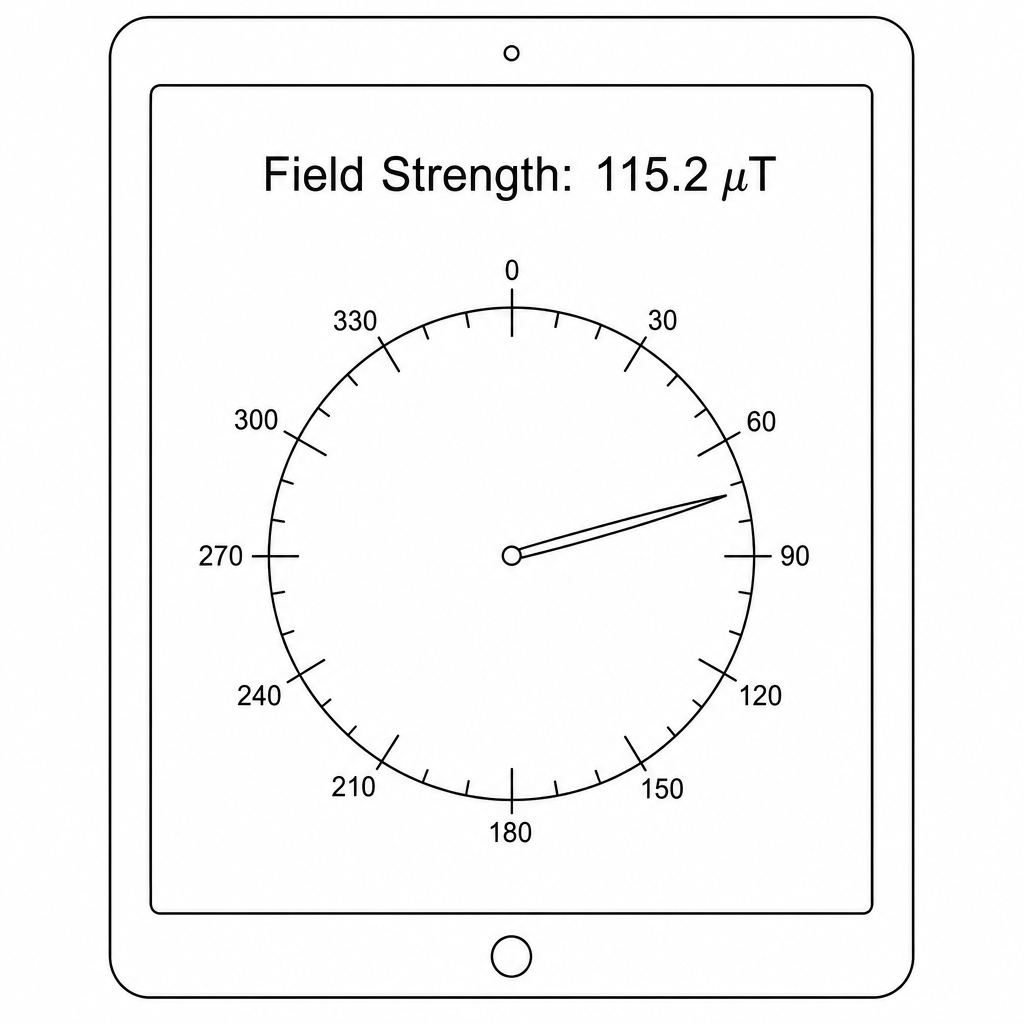

Figure 2: Tablet screen displaying the digital magnetometer app after the magnet is placed nearby. It shows a digital reading of 'Field Strength: 115.2 μT' and a circular compass dial with a needle pointing to 78°.

State two changes in the measured magnetic field shown by the sensor from Figure 1 to Figure 2.

[2]
