Question 38
Easy

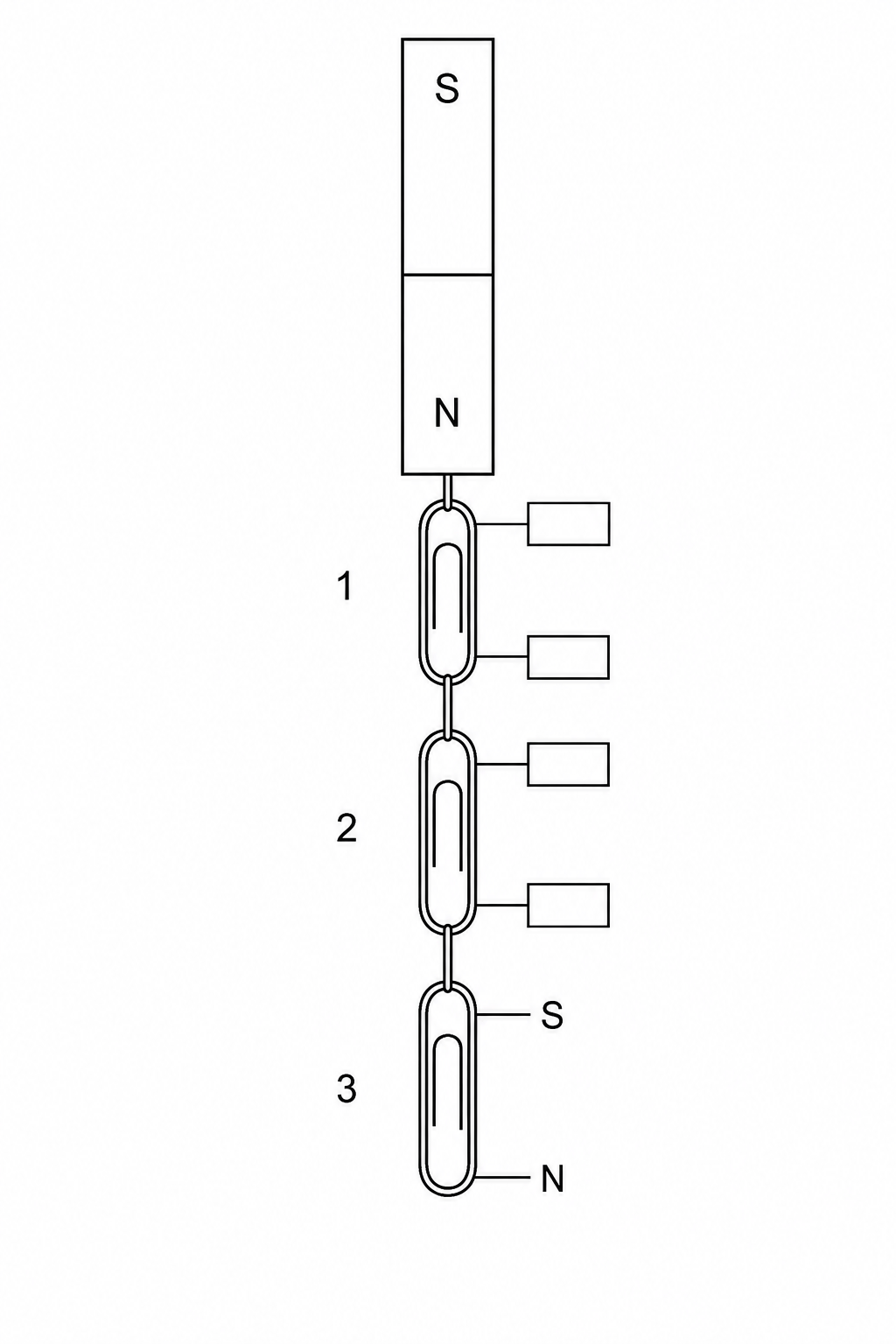

Figure 1 shows a bar magnet that has attracted three iron paperclips, which are hanging vertically.

The magnetic poles of the lowest paperclip (Paperclip 3) are already labeled.

Figure 1

Identify the induced magnetic poles at the top and bottom of Paperclip 1 and Paperclip 2.

[2]
