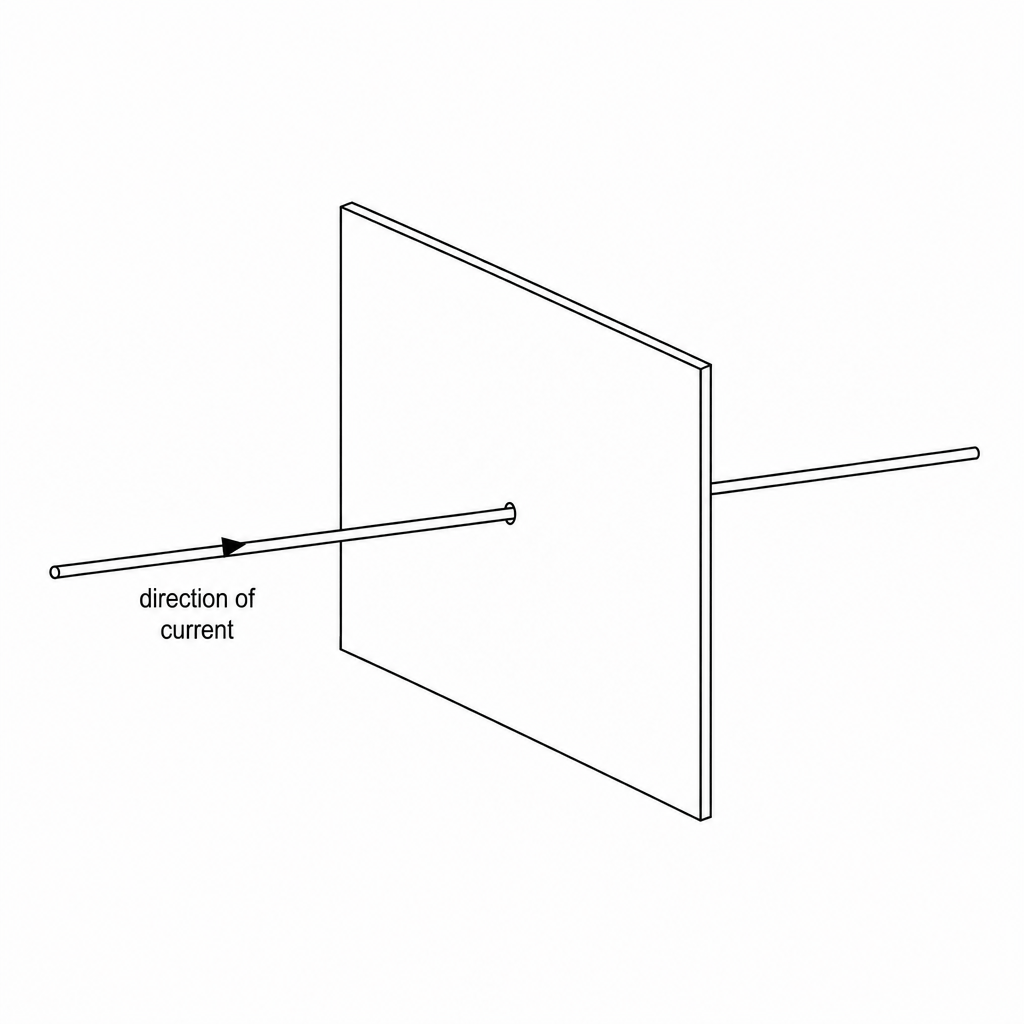

Figure 1 shows a horizontal wire passing perpendicularly through a flat, vertical sheet of cardboard. A current is flowing through the wire in the direction indicated by the arrow (away from the observer towards the cardboard).
Draw, on the cardboard in Figure 1, the magnetic field pattern produced by the current. Your drawing should:
- show the shape of the magnetic field lines
- show the direction of the magnetic field.
