Question 4
Easy

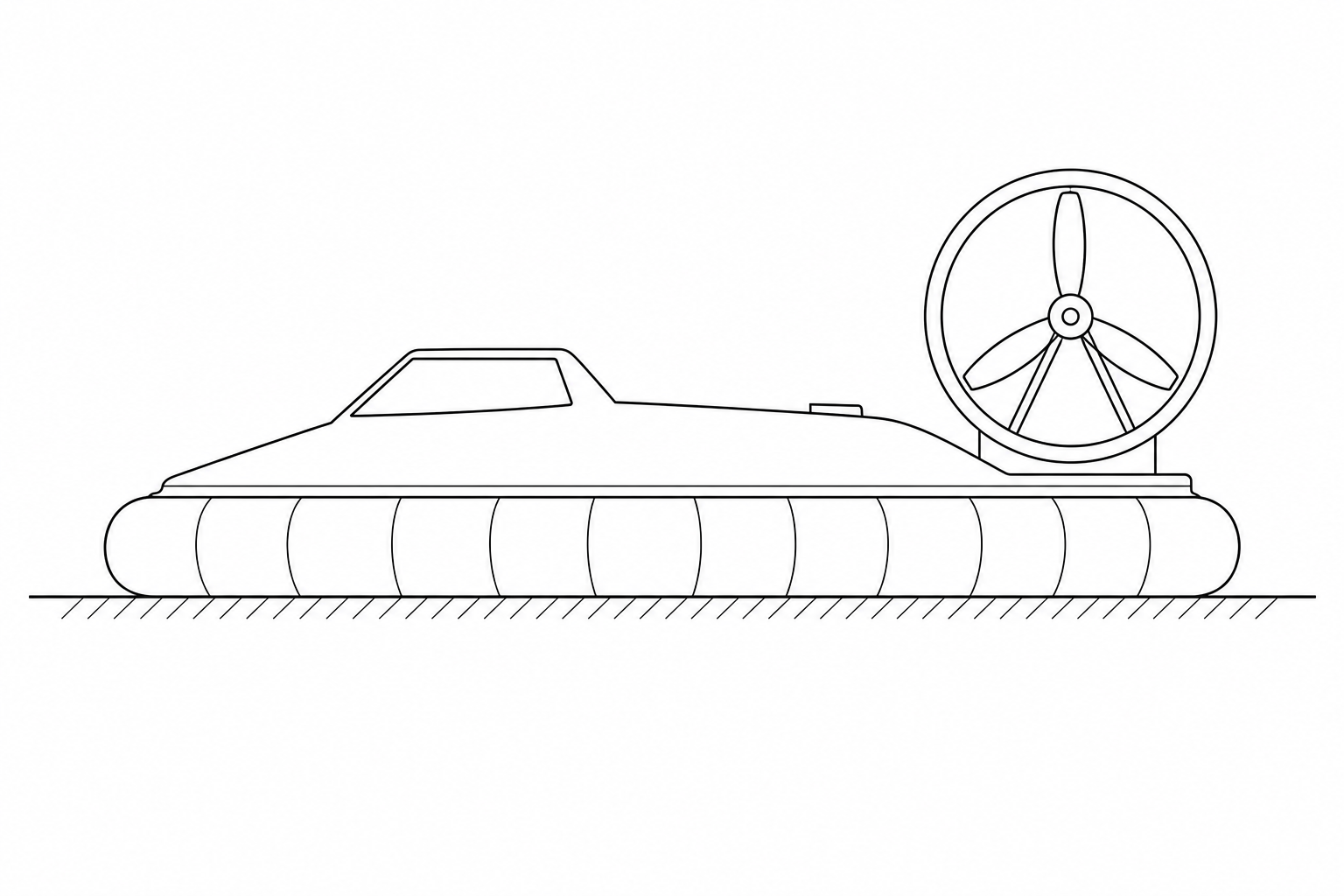

Figure 1 shows a model hovercraft propelled by a rear thrust fan.

A line drawing of a model hovercraft resting on a flat surface with a large propeller fan mounted at the rear inside a protective circular shroud.

The forward thrust force produced by the fan depends on the rotational speed of the fan blades, measured in revolutions per minute (rpm).

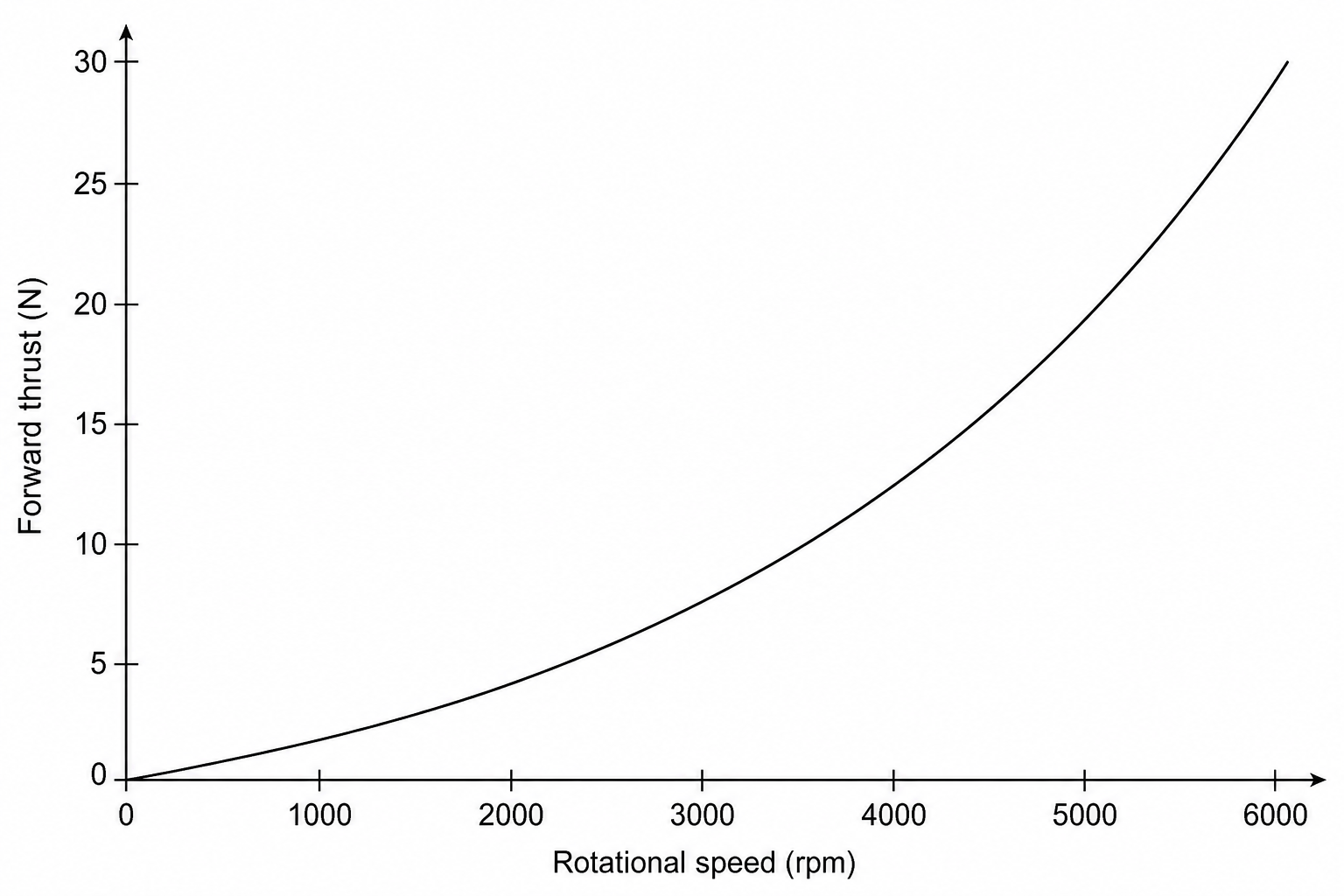

Figure 2 shows a graph of the forward thrust force against the rotational speed.

A graph showing a curve. The x-axis is labeled 'Rotational speed in rpm' and ranges from 0 to 6000. The y-axis is labeled 'Forward thrust in N' and ranges from 0 to 30. The curve starts at the origin (0, 0) and curves upwards with a progressively steeper gradient, passing approximately through the points (2000, 3.5), (4000, 14.0), and (6000, 30.0).

Describe the relationship between the forward thrust and the rotational speed shown in Figure 2.

[2]
