Question 43
Easy

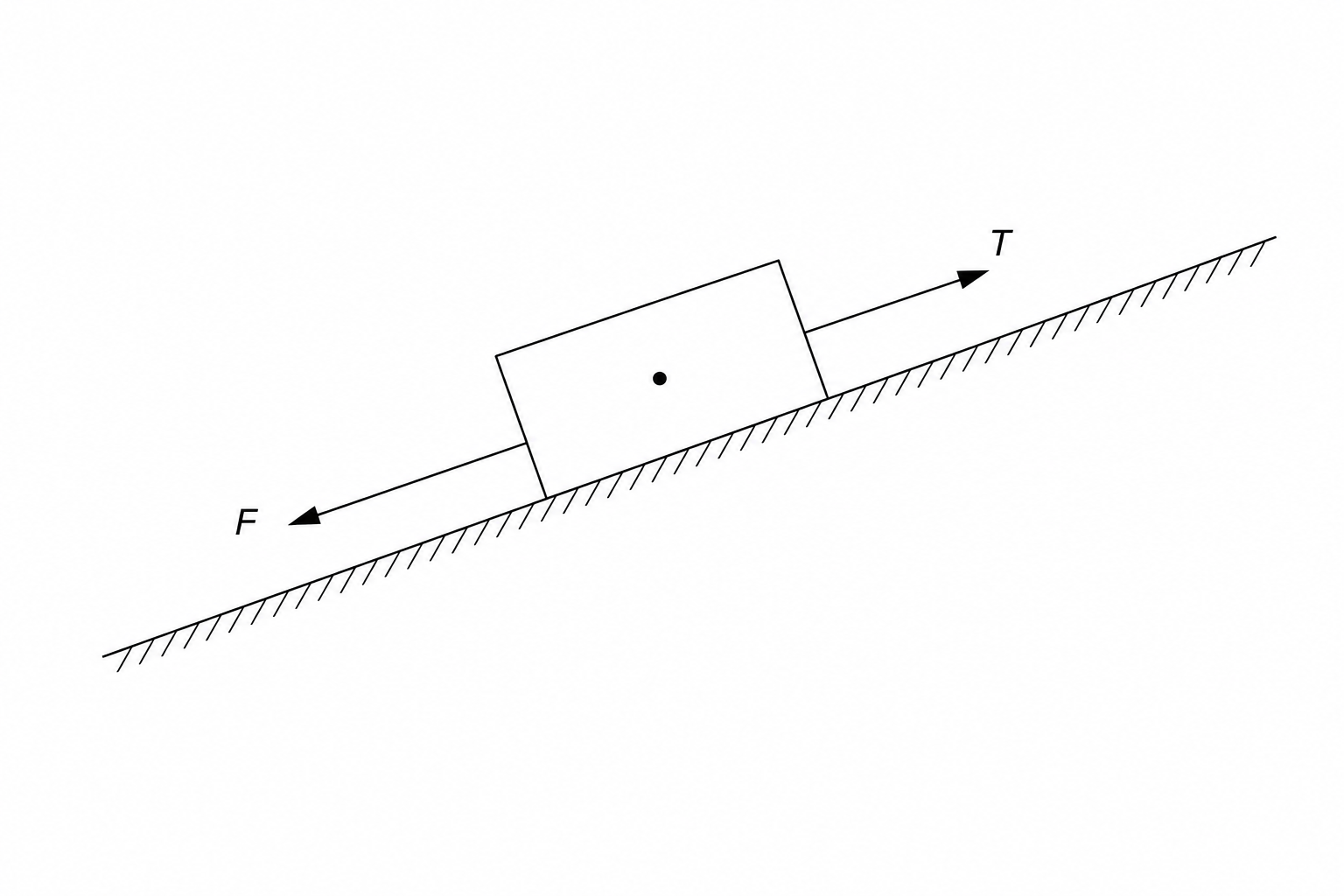

Figure 1 shows a heavy crate resting on a rough inclined ramp.

Figure 1

Draw an arrow on the diagram to represent the normal reaction force exerted by the ramp on the crate.

[1]
