Question 2
Easy

Figure 1 shows a rescue hovercraft.

The spinning propeller generates a forward thrust that moves the hovercraft. The rotation speed of the propeller is measured in revolutions per minute (rpm).

Figure 2 shows how the forward thrust generated by the propeller depends on its rotation speed.

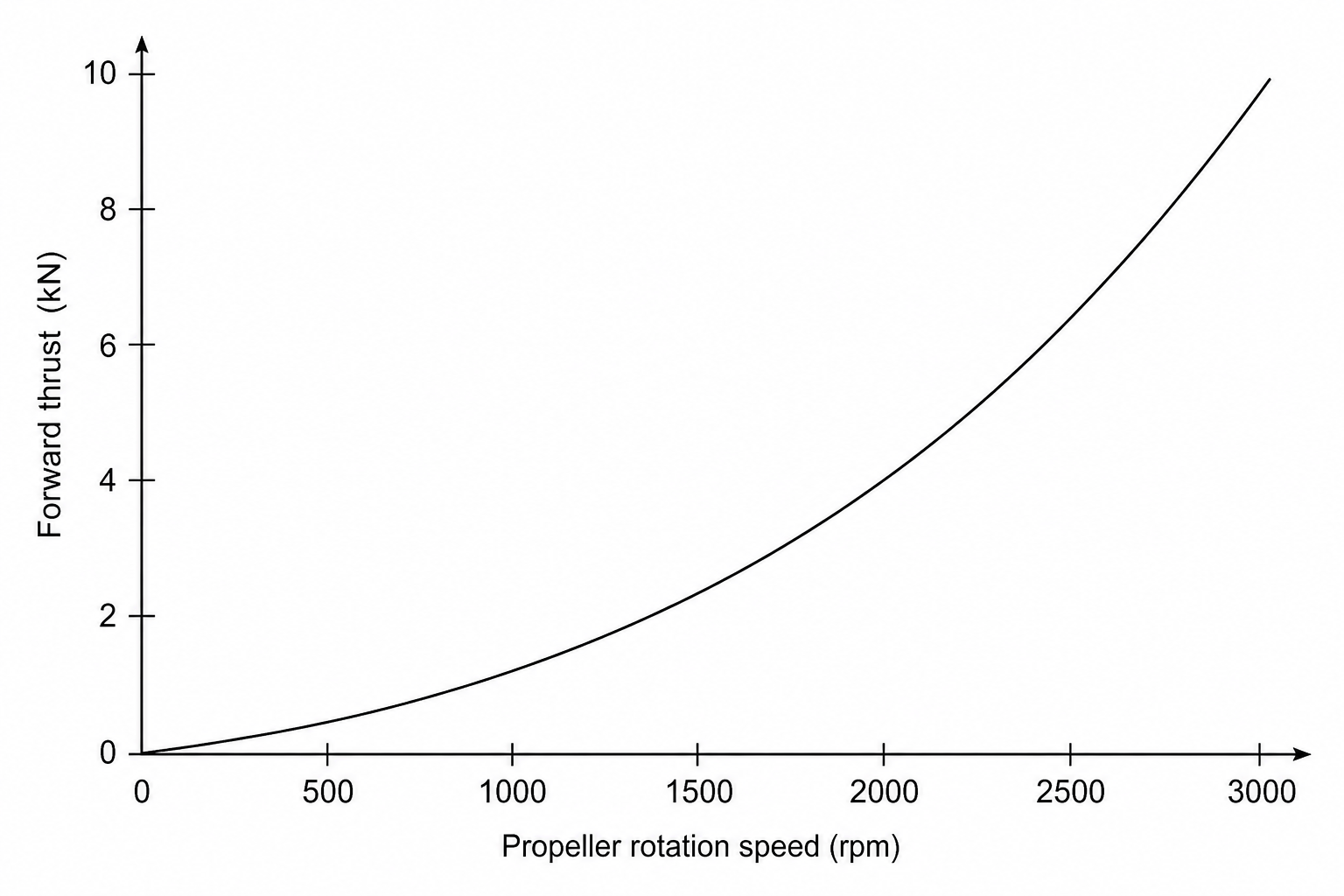

A line graph with the vertical y-axis labeled 'Forward thrust (kN)' from 0 to 10, and the horizontal x-axis labeled 'Propeller rotation speed (rpm)' from 0 to 3000. Underneath, a curved line starts at the origin (0, 0) and curves upwards with a progressively steeper positive gradient as rotation speed increases. There are no straight sections.

Describe the relationship between the forward thrust and the propeller rotation speed shown by the graph in Figure 2.

[2]
