Question 12
Easy

Figure 1 shows two forces, F1 F_1\,F1​ and F2F_2F2​, acting at right angles to each other at point P.

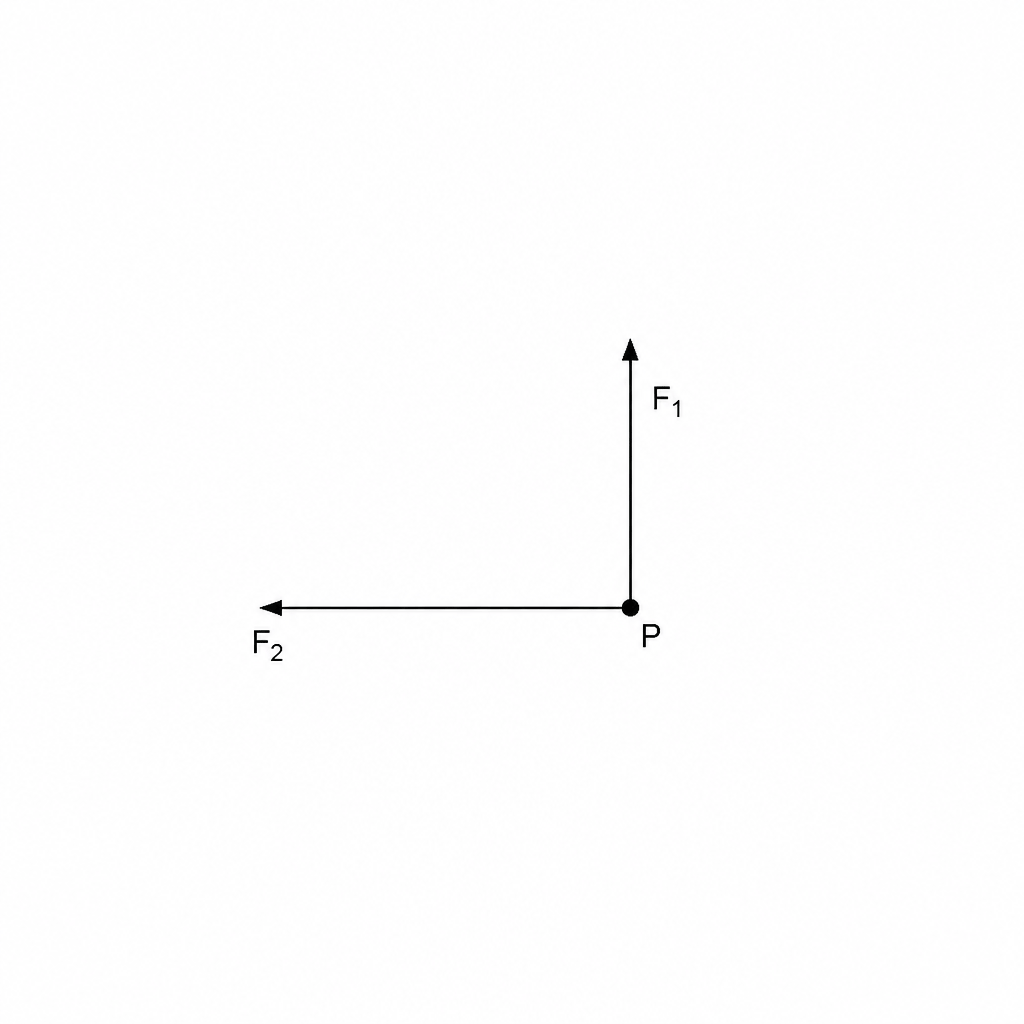

Figure 1: A vector diagram showing two perpendicular forces acting on point P. Force F1 is a vertical vector of magnitude 60 N pointing upwards. Force F2 is a horizontal vector of magnitude 80 N pointing to the left.

Complete the vector diagram in Figure 1 to show the size and direction of the resultant force, FRF_RFR​, acting on point P.

[2]
