Question 7
Easy

A quadcopter drone is performing an aerial survey near a cliff face.

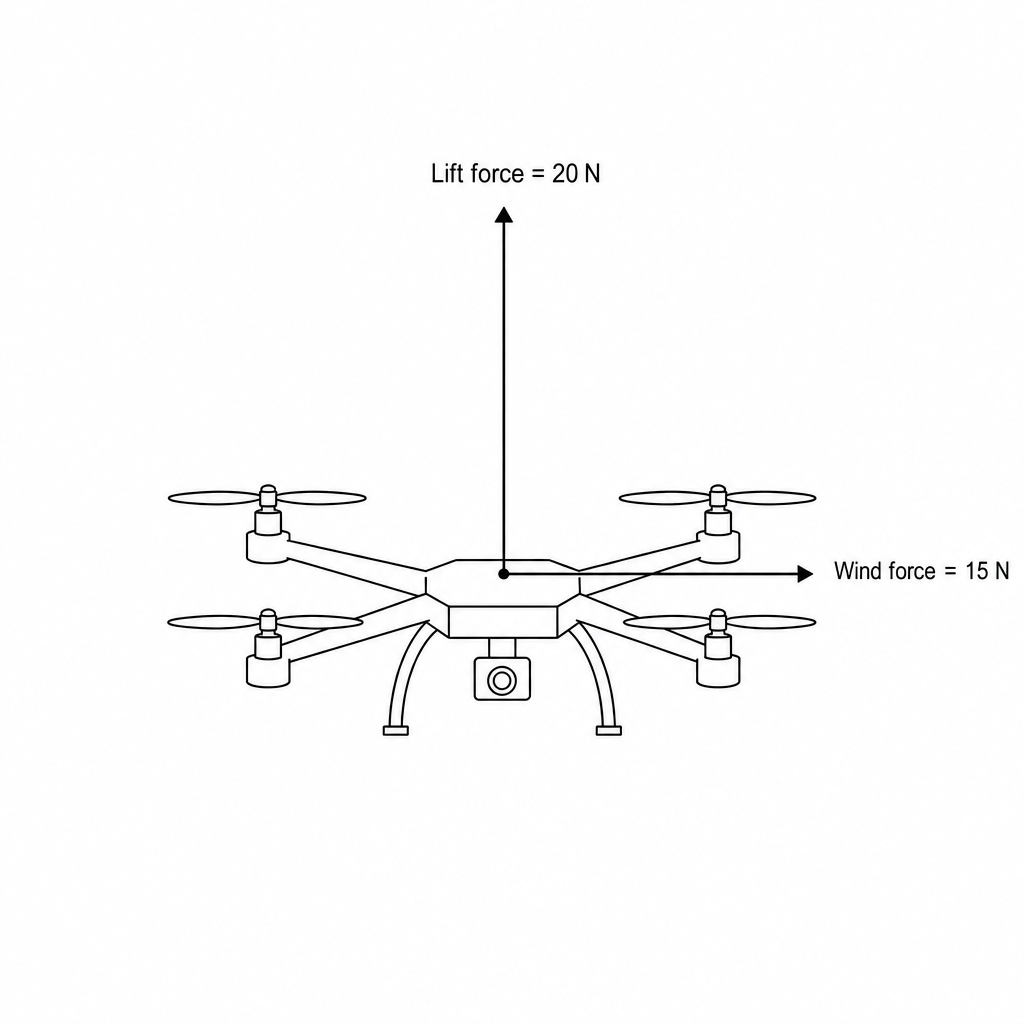

Figure 1 shows a vector diagram of the two perpendicular forces acting on the drone at a particular instant during its flight.

Figure 1

Complete the diagram to show the resultant force of these two forces.

[1]
