Forces, vectors and free body diagrams

EasyMedium
12345678910111213141516171819202122232425262728293031323334353637383940414243
Question 1
Easy

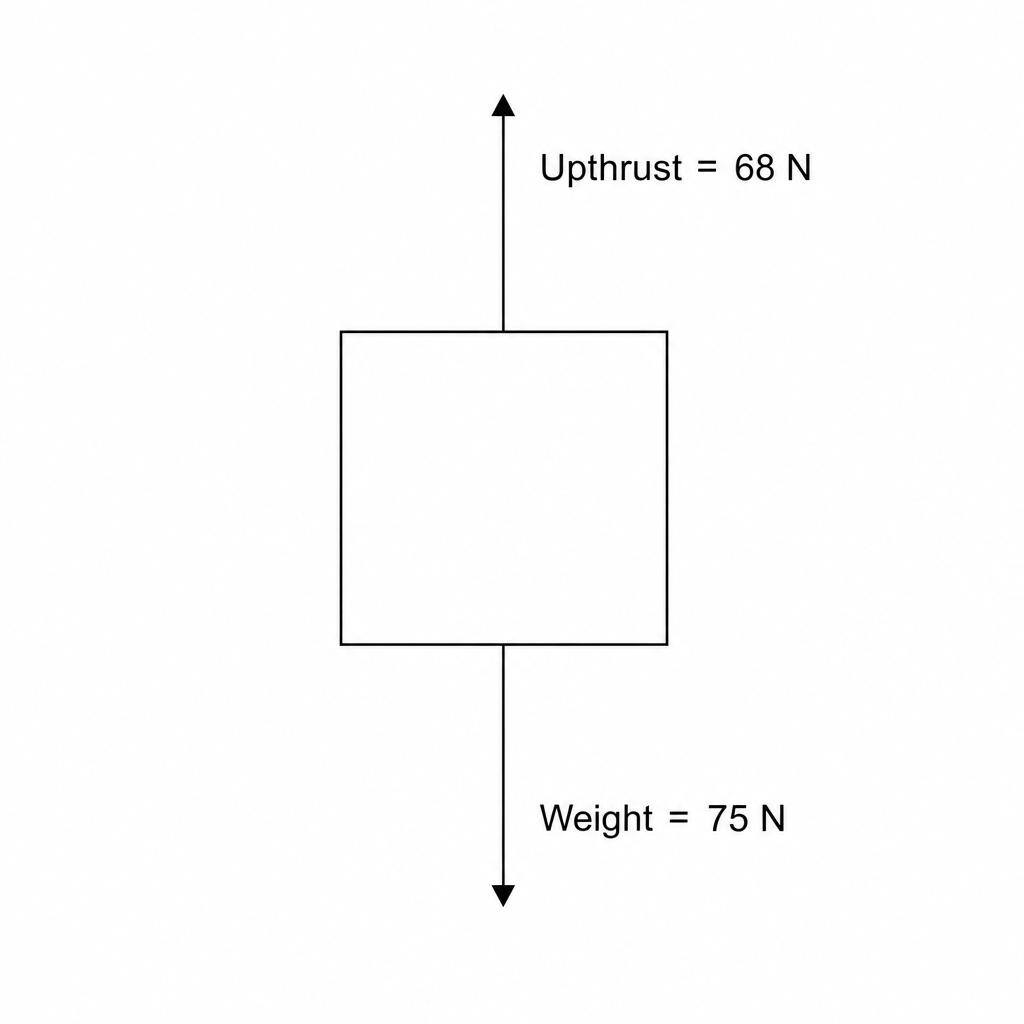

Figure 1 shows the vertical forces acting on an underwater research probe.

Figure 1: Vertical forces acting on an underwater research probe

Use information from the diagram to determine the size and direction of the resultant vertical force on the probe.

[2]
