Question 5
Medium

A biomedical engineer investigates the tensile behavior of a new biodegradable polymer suture fiber. During a destructive test, they record the relationship between the applied force and the extension of the suture fiber until it ruptures. The results are shown in the table below.

Extension / mmApplied force / N
00
420
832
1236
1630

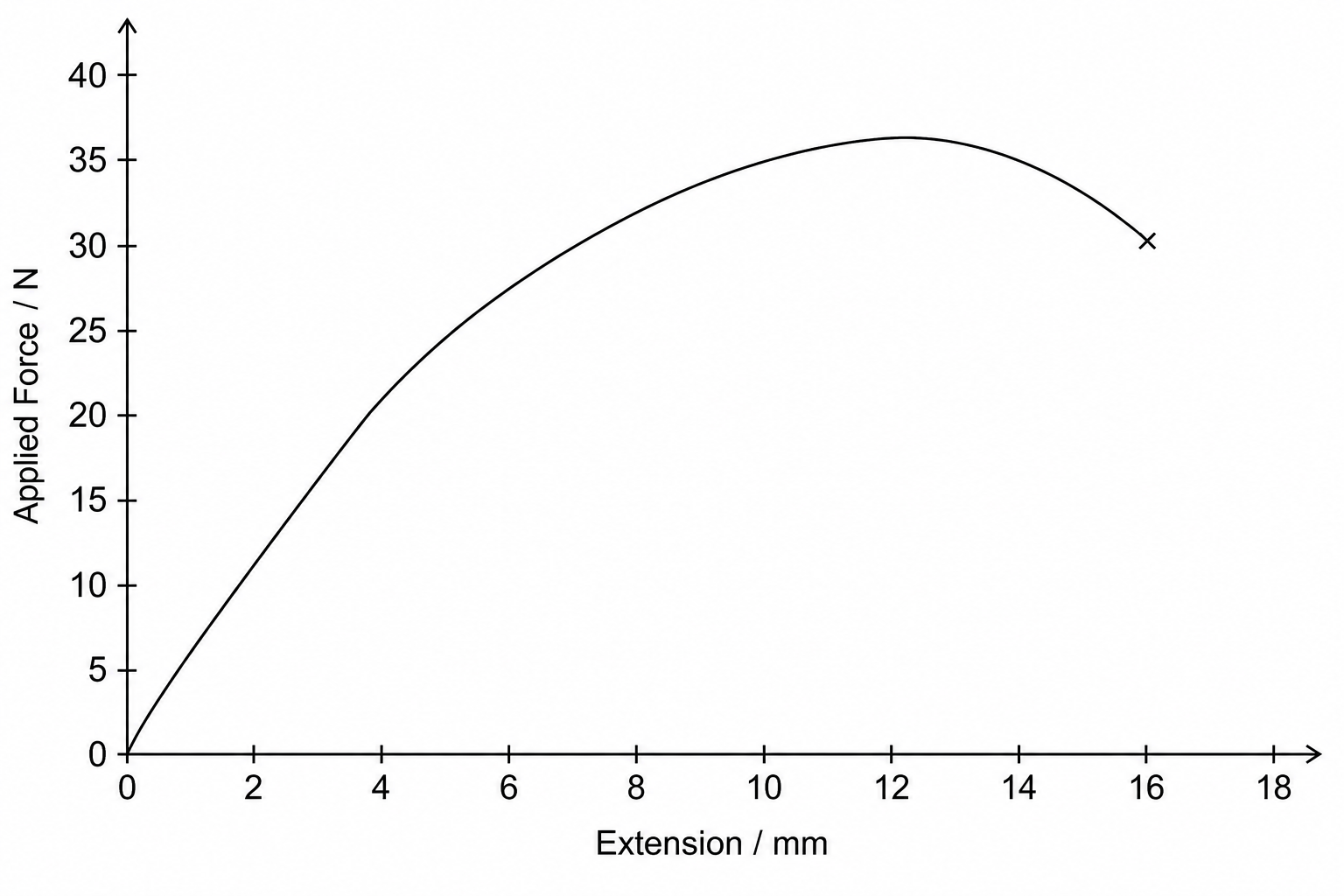

Tensile test graph showing force in Newtons on the y-axis against extension in millimetres on the x-axis. From 0 to 4 mm, the graph is linear. From 4 to 16 mm, the graph is non-linear, peaking at 12 mm with 36 N and decreasing to 30 N at 16 mm where the fiber breaks.

Describe the non-linear stretching behavior of the polymer suture fiber shown by the data.

[3]
