Forces and springs

EasyMedium
12345678910111213141516171819202122232425262728293031
Question 7
Easy

Figure 1 shows a 15 N metal block hanging from a vertical spring attached to a fixed support.

One of the forces acting to stretch the spring is shown by the downward arrow in Figure 1.

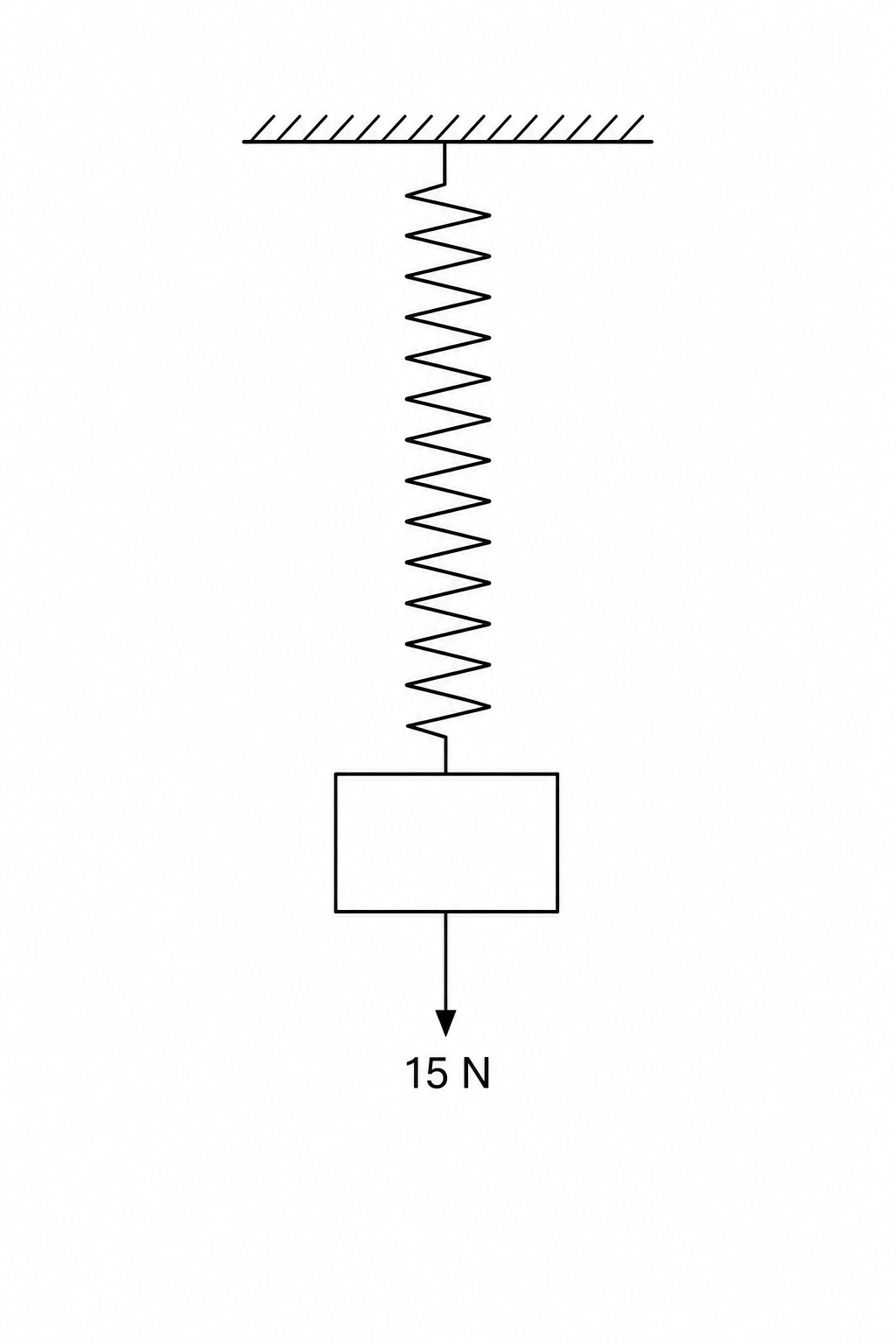

Figure 1: A vertical coil spring suspended from a rigid horizontal line representing a ceiling support. A rectangular block is suspended from the bottom of the spring. A vertical arrow points downwards from the center of the block, labeled '15 N'. There are no other arrows shown.

Complete the diagram by adding an arrow to show the other force acting to stretch the spring.

[2]
