Question 25

Easy

A research vehicle of constant mass $m\,$ is accelerating from rest along a straight horizontal test track.

Which graph correctly represents the relationship between the kinetic energy ( $EkE_{\text{k}}$ ) of the vehicle and its speed ( $v$ )?

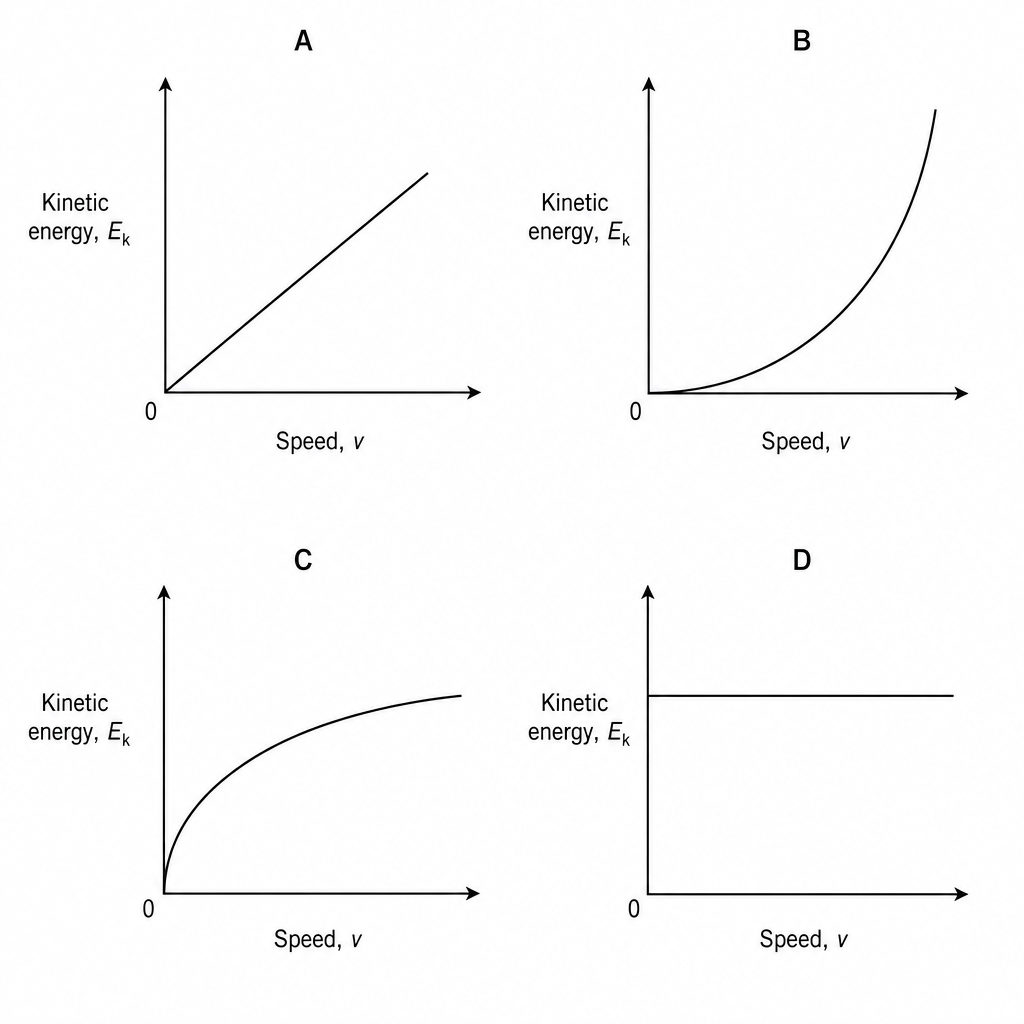

Four sketch graphs labeled A, B, C, and D. Graph A shows a straight diagonal line. Graph B shows an upward-opening parabola. Graph C shows a square-root curve. Graph D shows a horizontal line.

Graph A

Graph B

Graph C

Graph D
