Question 28
Easy

A funicular railway car ascends a mountain slope from a lower station to an upper station as shown in the elevation diagram below.

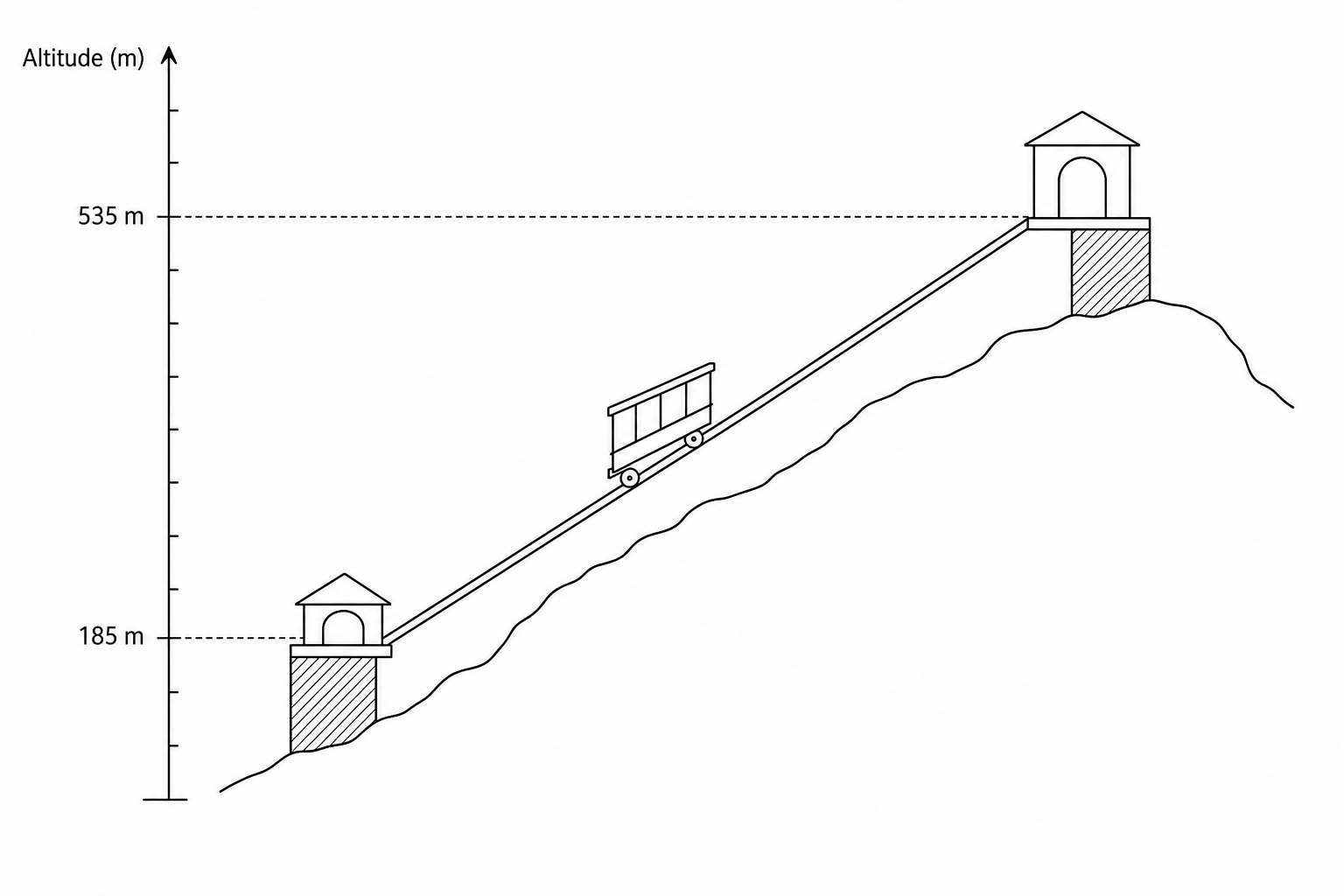

Funicular railway elevation diagram

The gravitational potential energy of the loaded railway car increases by 2.058 × 106 J when travelling from the lower station to the upper station.

Calculate the total mass of the loaded railway car.

Take gravitational field strength, g=9.8 m/s2g = 9.8\text{ m/s}^2g=9.8 m/s2

Use the equation:

ΔEp=m×g×Δh \Delta E_p = m \times g \times \Delta h ΔEp​=m×g×Δh
[2]
