Question 2
Medium

An engineering student investigates how the mass of a spherical projectile affects the maximum vertical height it reaches when fired upwards by a compressed spring launcher.

They record their results in the table below and plot them on a graph.

Spring Launcher Results

Mass of sphere (mmm) in kgMaximum height (hhh) in m
0.153.05
0.251.84
0.351.31
0.451.02
0.550.84

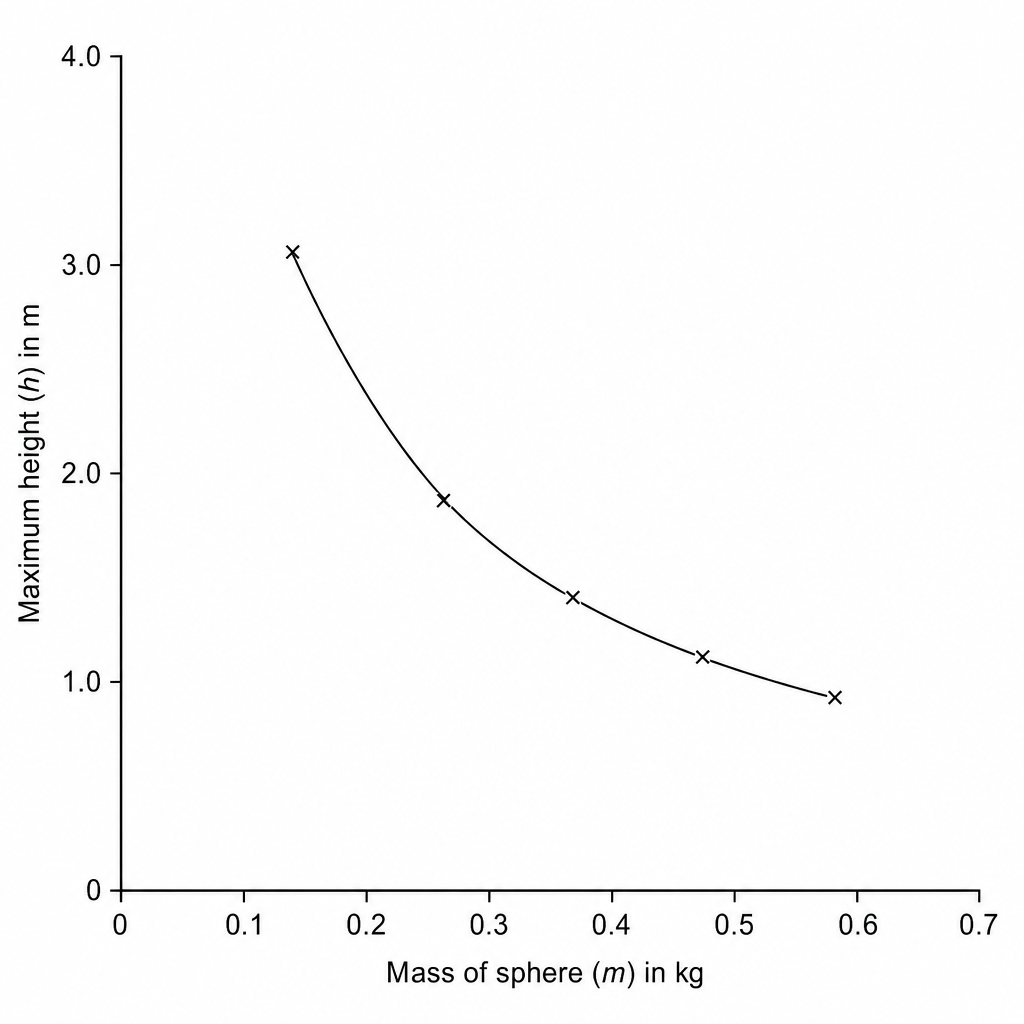

Spring Launcher Results Graph

The student claims that the elastic potential energy transferred to each sphere by the compressed spring is constant across all trials.

Use data from any two points in the table to support this statement. Take the acceleration due to gravity, ggg, to be 9.8 m/s2.

[3]
